Product Details:
Payment & Shipping Terms:
|
| Rated Capacity: | 50-150 Tons | Application: | Handling Tools |
|---|---|---|---|
| Color: | Red & Yellow | Standard: | API 8A/8C |
| Package: | Wooden Case | Warranty: | 12 Months |
| Type: | Perfection Link | Length: | 1500/1700 Mm |
| High Light: | Double Arm Oilfield Elevator Link,Electric Welding Oilfield Elevator Link,1700mm Length Oilfield Elevator Link |
||

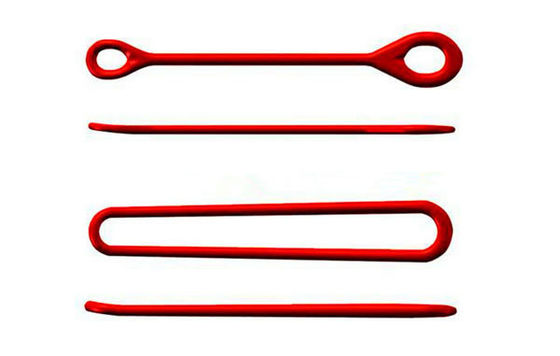

SH150 Oilfield Double Arm Elevator Links Perfection Link
Product Overview
SH double arm links are designed for light loads. Perfection links are made by forging, bending and electric welding of high-quality steel bar stock, which is then heat-treated and NDT examined, perfection links are proof load tested to 1.5 times the working load. Each perfection link of one pair is marked with Serial Number for traceability. All the technical data and properties of perfection links completely conform to the requirements of API Spec 8C.
Rating loads of perfection links series are 50 ton, 65ton and 75ton. For perfection links rated 100 ton or 150ton, contact manufacturer to order.
For perfection link compatibility purpose, not to use perfection links which have a capacity too low for carrying the load intended (dynamic+static), Warranty period of perfection links is 12 months from the date of field service or 18 months from date of shipment.
Information of Perfection Link
SH dependable, efficient perfection links are designed for light loads.
Perfection links are made by forging, bending and electric welding of high-quality steel bar stock, which is then heat-treated and NDT examined. Rating loads of perfection links series are 50t (450kN), 75t (675kN), 150t (1350kN).
All the technical data and properties of perfection links completely conform to the requirements of SY/T 5035 and API Spec 8C.
Structural of SH Elevator Links

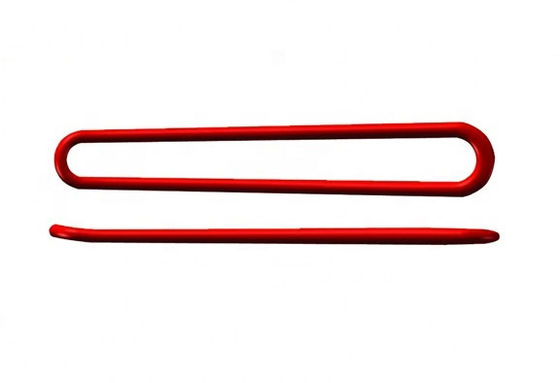

Perfection links can work in pairs. Bigger end of perfection link is for the hook link ear, and small end is for the elevator.
Technical Sheet Data of Our Oilfield Elevator Link
| Specifications | DH 150 | DH 200 | DH 250 | DH 350 | DH 500 |
| Rating loads | 150ton | 200 ton | 250 ton | 350 ton | 500 ton |
| Length (cm) | 180 | 270 | 270 | 330 | 360 |
| Specifications | SH 50 | SH 65 | SH 75 |
| Rating loads | 50t | 65t | 75t |
| Length (cm) | 110 | 150 |
180
|
