| Size: | 1-3/4", 2-1/2",2-3/4",3-1/2",4-3/4" | Rated Capacity: | 50-750 Tons |
|---|---|---|---|
| Application: | Handling Tools | Color: | Red & Yellow |
| Standard: | API 8A/8C | Advantage: | High Performance |
| Package: | Wooden Case | Warranty: | 12 Months |
| High Light: | Oilfield Drilling Elevator Weldless Link,API 8C Elevator Weldless Link,750 Tons Elevator Weldless Link |
||
API 8C Oilfield Drilling Elevator Link Perfection Link
Product Overview

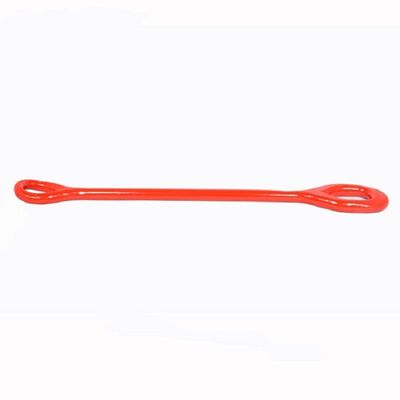

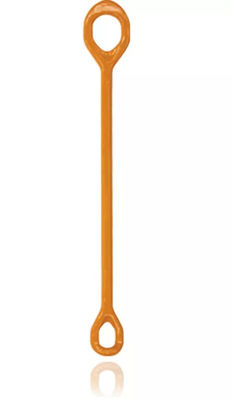

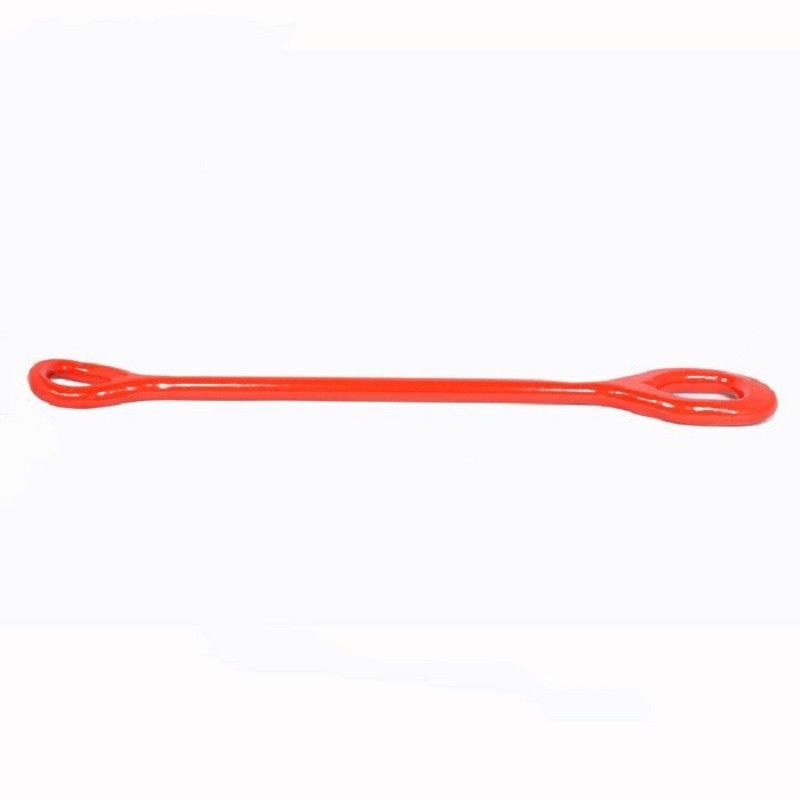

Elevators links are suitable for hanging pipes in the operation of well drilling or repairing. According to the structures, they have two forms: Type DH & Type SH. The weldless links are forged with high quality alloy steel. They are designed and manufactured according to API Spec 8A/8C.
Each elevator link of one pair is marked with Serial Number for traceability. Elevator links are available in 150t,200t, 250t, 350t and 500t rating loads. Partial specifications data for elevator links are provided as follows, any order of elevator links for field service are available.

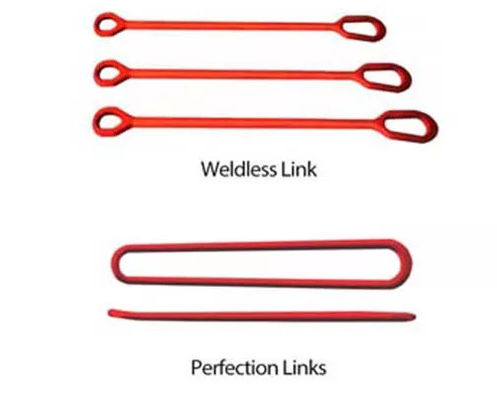

Information of Perfection Link
SH dependable, efficient perfection links are designed for light loads.
Perfection links are made by forging, bending and electric welding of high-quality steel bar stock, which is then heat-treated and NDT examined. Rating loads of perfection links series are 50t (450kN), 75t (675kN), 150t (1350kN).
All the technical data and properties of perfection links completely conform to the requirements of SY/T 5035 and API Spec 8C.
Structural of SH Elevator Links
Perfection links can work in pairs. Bigger end of perfection link is for the hook link ear, and small end is for the elevator.
Main Features of Oilfield Elevator Link
Technical Parameters of Our Oilfield Elevator Link
| Specifications | DH 150 | DH 200 | DH 250 | DH 350 | DH 500 |
| Rating loads | 150ton | 200 ton | 250 ton | 350 ton | 500 ton |
| Length (cm) | 180 | 270 | 270 | 330 | 360 |
| Specifications | SH 50 | SH 65 | SH 75 |
| Rating loads | 50t | 65t | 75t |
| Length (cm) | 110 | 150 |
180
|
Xi'an TianRui Petroleum Machinery Equipment Company Limited is a fast-growing professional petroleum equipment manufacturer and supplier, integrating petroleum equipment development & application and oilfield technical service into one. It is located in China's well-known Xi'an city of Shaanxi Province.
Adhering to the "people-oriented, technology leadership, honest and quality excellent, win-win cooperation, the customer first" business idea, and carefully creating "tiger rig" brands. Firmly aimed at international advanced technology and management philosophy for petroleum machinery. We'll make our efforts to supply the best surface operation tools and the drilling and producing equipment for the oilfields in China and the world.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
