Product Details:
Payment & Shipping Terms:
|
| Size: | 2 3/8''-13 3/8'' | Warranty: | 12 Months |
|---|---|---|---|
| Model: | PS16 | Usage: | Energy & Mining |
| Rated Capacity: | 500 Tons | Size Range Of Pipe: | 63-170 Mm |
| Rotary Table Slzie: | 27 1/2,37 1/2,49 1/2 Inch | Tubing Diameter: | 3 1/2-7 3/4" |
| High Light: | Casing Pneumatic Drilling Rig Slips,170mm Pipe Drilling Rig Slips,150t Drilling Rig Slips |
||

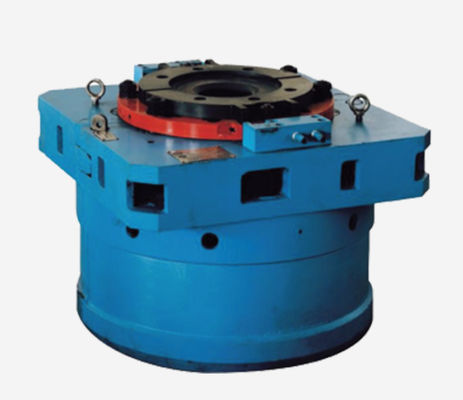

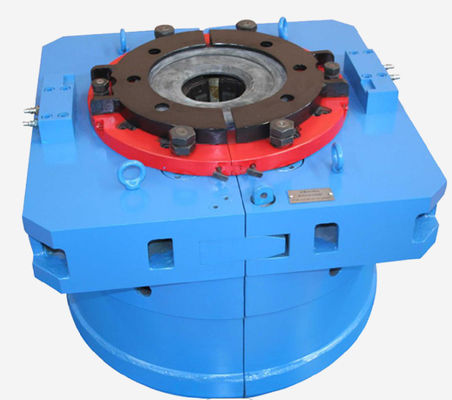

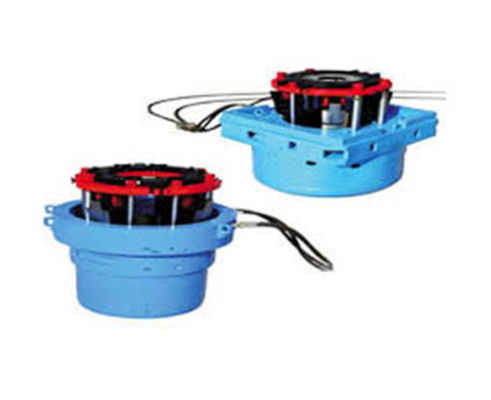

Blue Color PS16 Casing Pneumatic Slip for Oil Drilling
Product Profile
Type PS drill pipe Pneumatic slips is designed to automatically grip drill pipe during trip operation and to wipe the drill pipe when making a pull. It is a ideal wellhead tool suitable for all types of rotary tables, and has following characters: simple installation; easy operation, multiple functions; high automation, labor saving and greatly improves the efficiency of drilling operation.
They are mechanized operating with strong hoisting force and large working range. The slips are designed and manufactured according to API Spec 7K.
Xi'an TianRui Petroleum Machinery Equipment Company Limited is located in Xi'an City, Shaanxi Province. We are a professional equipment company on research, design, productionand sales. We are a first class authorized company of Sinopec, and member of CCPIT and CCOIC. We have strong technical force, advanced processing equipment, and engage in technicalexchanges and cooperation with foreign companies and Universities.
Advantages of Our Oilfield Pneumatic Slips
Technical Information of Oilfield Pneumatic Slip
| Model | Rotary table size | Applicable diameter of tubulars (in) | Rated capacity (tons) | Work pressure (MPa) | (Max. pressure MPa) |
| PS175 | 17.1/2 | 2.3/8-5.3/4 | 150 | 0.6-0.8 | 1 |
| PS205 | 20.1/2 | 2.3/8-5.3/4 | 250 | 0.6-0.8 | 1 |
| PS275 | 27.1/2 | 2.3/8-9.7/8 | 350 | 0.6-0.8 | 1 |
| PS375 | 37.1/2 | 2.3/8-14 | 500 | 0.6-0.8 | 1 |
| PS16 | 27.1/2, 37.1/2, 49.1/2, | 3.1/2-7.3/4 | 500 | 0.6-0.8 | 1 |
| PS Portable | 23,27.1/2, 37.1/2, 49.1/2, | 2.3/8-5.1/2 | 250 | 0.6-0.8 | 1 |
| Pin drive | 350 | ||||
| PS slant hole | For slant hole drilling rig | 2.7/8-13.3/8 | 250 | 0.6-0.8 | 1 |
| Russian style 560 | 560mm | 1.9-7 | 350 | 0.6-0.8 | 1 |
| through hole |
Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. has strict systems of scientific research and quality assurance. It has a research & development technology center, a modern product line and maintenance service for oilfield drilling tools, and facilities together with advanced techniques of physical and chemical analysis as well as ultrasonic flaw detection. For materials. Moreover, it is one of the druggeting companies of the industry standard, for eight types of down-hole tools.
Our products have been exported to 15 countries & areas around the world, 80% of our exsisting customers have done the business with us by more than 5 times, no one-off customer. We will continue to expand our range, and win more customers' trust with our better and better performance.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
