Product Details:
Payment & Shipping Terms:
|
| Size: | 2 3/8''-13 3/8'' | Rated Capacity: | 500 Tons |
|---|---|---|---|
| Working Pressure: | 0.6-0.8Mpa | Size Range Of Pipe: | 63-170 Mm |
| Standard: | API 7K | Package: | Wooden Case |
| Type: | Pneumatic | Max. Pressure: | 1 Mpa |
| High Light: | 3 1/2" Oilfield Oil Drilling Parts,API Pneumatic Slip Oil Drilling Parts,API 7K Slip Oil Drilling Parts |
||

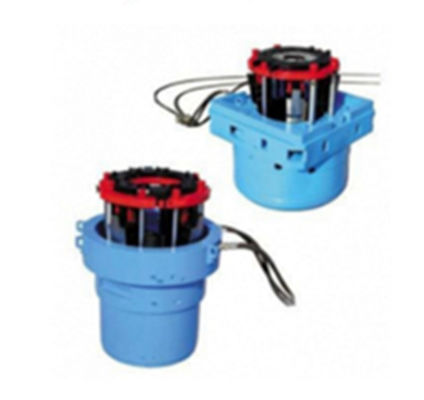

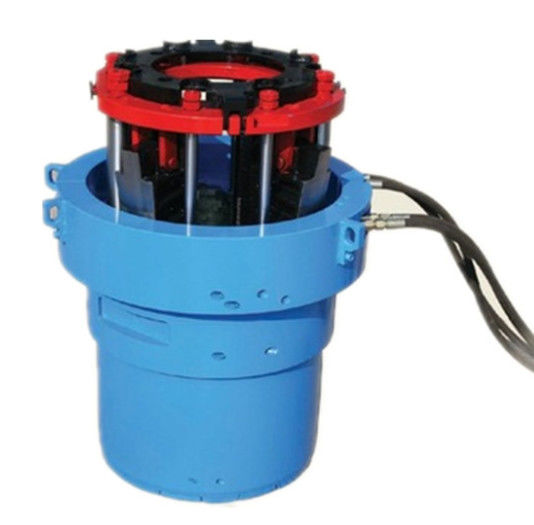

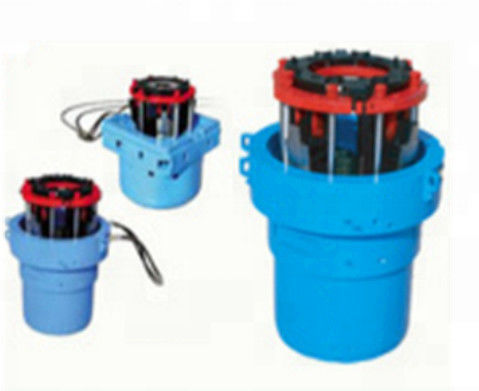

API Standard QW Type Pneumatic Slip 3 1/2" for Oilfield
Product Introduction
PS SERIES API 7K pneumatic slip lock tile is a type of pneumatic operational tool to screw down the drill rod and clamp the sleeve in the petroleum and natural gas drilling work.
It is an ideal well-head mechanized tool with double functions, it can automatically handle the drill pipe when the drilling rig is running in hole or does pipe wiping when the drilling rig is pulling out of hole. It can accommodate different kinds of drilling rig rotary table. And it features convenient installation, easy operation, complete functions, high automation, low labor intensity, and can improve the drilling speed.
Specifications of Oilfield Pneumatic Slips
Technical Sheet of Oilfield Pneumatic Slip
| Model | Rotary table size | Applicable diameter of tubulars (in) | Rated capacity (tons) | Work pressure (MPa) | (Max. pressure MPa) |
| PS175 | 17.1/2 | 2.3/8-5.3/4 | 150 | 0.6-0.8 | 1 |
| PS205 | 20.1/2 | 2.3/8-5.3/4 | 250 | 0.6-0.8 | 1 |
| PS275 | 27.1/2 | 2.3/8-9.7/8 | 350 | 0.6-0.8 | 1 |
| PS375 | 37.1/2 | 2.3/8-14 | 500 | 0.6-0.8 | 1 |
| PS16 | 27.1/2, 37.1/2, 49.1/2, | 3.1/2-7.3/4 | 500 | 0.6-0.8 | 1 |
| PS Portable | 23,27.1/2, 37.1/2, 49.1/2, | 2.3/8-5.1/2 | 250 | 0.6-0.8 | 1 |
| Pin drive | 350 | ||||
| PS slant hole | For slant hole drilling rig | 2.7/8-13.3/8 | 250 | 0.6-0.8 | 1 |
| Russian style 560 | 560mm | 1.9-7 | 350 | 0.6-0.8 | 1 |
| through hole |
Xi'an TianRui Petroleum Machinery Equipment Company Limited is located in Xi'an City, Shaanxi Province. We are a professional equipment company on research, design, productionand sales. We are a first class authorized company of Sinopec, and member of CCPIT and CCOIC. We have strong technical force, advanced processing equipment, and engage in technicalexchanges and cooperation with foreign companies and Universities.
Our products have been exported to 15 countries & areas around the world, 80% of our exsisting customers have done the business with us by more than 5 times, no one-off customer. We will continue to expand our range, and win more customers' trust with our better and better performance.
Certificates
API-5CT, API-10D, API-7K, API-6A, API-11AX,ISO9001, ISO14001 , ISO18001 etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
