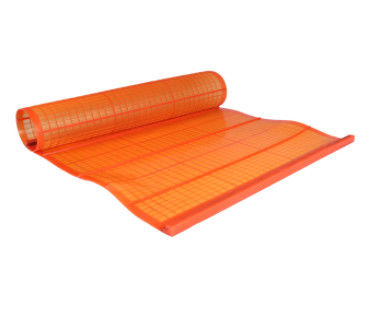

API 13C 85A PU Fine Linear Vibrating Screen For TH48-30

API 13C 85A PU Fine Linear Vibrating Screen For TH48-30
API 13C 85A PU Fine Linear Vibrating Screen For TH48-30 API 13C 85A PU Fine Linear Vibrating Screen For TH48-30 API 13C 85A PU Fine Linear Vibrating Screen For TH48-30

Large Image :  API 13C 85A PU Fine Linear Vibrating Screen For TH48-30

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API 13C, ISO9001
Model Number: TRP-5
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton box and wooden case
Delivery Time: 5-7 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 50000pcs/month
Detailed Product Description
Mesh: API 25-API 325 Open Area: 20.0% - 40.6%
Model: TH48-30 X 0.5MT Hardness: 85-95A
Hole Shape: Square, Rectangle Running Track: Linear Vibrating Screen
Size: 1040*700mm 1040 *1005mm Package: Wooden Case
High Light:

PU Fine Linear Vibrating Screen

,

API 13C Linear Vibrating Screen

,

Shale Shaker Linear Vibrating Screen

PU High Frequency Fine Vibrating Screen for TH48-30



Product Introduction



Urethane shaker screens also referred to Polyurethane screen. Such shaker screens are widely used in desanding or dewatering. The industry including mining, civil construction, slurry separation and so on.



PU Screens are the filter screen made of polyurethane material. Same model screen, this type screen size is described by opening size. Such as 0.075mm, 0.5mm, 0.85mm, 1.0mm.



PU screen are widely used in mining industry, slurry separation, and so on. It performs well on dewatering result, it’s not easy to be blocked as S.S screen. It is flexible, and durable. The high quality polyurethane is high anti-resistance, high anti-corrosion.



Main Specialities of Our TH48-30 Polyurethane Screens:

  1. Non-blinding.
  2. Abrasion and wear resistance.
  3. Acid and alkali resistance.
  4. Low noise.
  5. Long service life.
  6. Fine openings for accurate separation.
  7. Inlaid wedge-shape structure to strengthen the tensile strength.
  8. Suit for almost all types of vibrating screens.
  9. Lightweight and easy to install and replace.
  10. Low operating and maintenance cost.

Available Polyurethane Shaker Screen


There are many different dimension and size PU screens. Such as the 914x700mm, 1020x700mm, 1044x702mm, 1220x700mm, 1040x750mm, sized 0.075, 0.1mm, 0.42mm, 0.5mm, 0.6mm, 0.7, 0.85mm and so on.



These screens are different. Some of them are configured with reinforced yarn, while some are not. And the manufacture technique is different among them.



Technical Data of TR Polyurethane Screen



Products Name TH48-30 Screen for shale shaker
Mesh Range 40-325 Mesh
Dimension Green & Black
Color 700*1040mm
Weight 2 kg
Feature Effective Filtering Area & Long Working Life ,Shale Shaker Screen
Application Drilling, Oil & Gas Filtration, Mud Filtration



API 13C 85A PU Fine Linear Vibrating Screen For TH48-30 0



The dimension are 702x1044mm, 840x1245mm, 700x1225mm, 700x1245mm, 1000x2320mm, 1200x2320mm, etcetera. And the sizes are 0.075mm, 0.15mm, 0.2mm, 0.7mm,1.5mm, and so on. Please feel free to contact us for any interest or questions. We trust our polyurethane shaker screen will bring great satisfaction.


Usually packing shaker screens are based on certain shaker screen type. Cater for most customers' demand we usually pack the framed screen at 1 panel per carton, while the hook strap ones will be 2 panels per carton. And almost screen panels will be packed with poly wood pallets or boxes with bundle belt. Every package will be identified by package detail for convenient quantity re-check. Packages will be seaworthy and airworthy to avoid any damage or loss.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
