Oil Based Oilfield Kelly Drilling Rotary Hose 35Mpa

Oil Based Oilfield Kelly Drilling Rotary Hose 35Mpa
Oil Based Oilfield Kelly Drilling Rotary Hose 35Mpa Oil Based Oilfield Kelly Drilling Rotary Hose 35Mpa Oil Based Oilfield Kelly Drilling Rotary Hose 35Mpa

Large Image :  Oil Based Oilfield Kelly Drilling Rotary Hose 35Mpa

Product Details:

Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API Spec 7K, ISO
Model Number: Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 60000 M Per Month
Detailed Product Description
Size: 4in-12inch Grade: A, B, C, D, E, F, G
Connection: Hammer Uion Connector Code: TBG, LP
Safety Chain: Included Pressure: 1500-15000 PSI
Cover: Black Modified Nitrile Tube: HNBR Rubber
High Light:

Oilfield Kelly Drilling Rotary Hose

,

35Mpa Oilfield Drilling Rotary Hose

,

NBR Oilfield Drilling Rotary Hose

Oilfield Kelly Drilling Rotary Hose Size 6 Inch 35Mpa



Product Descrption

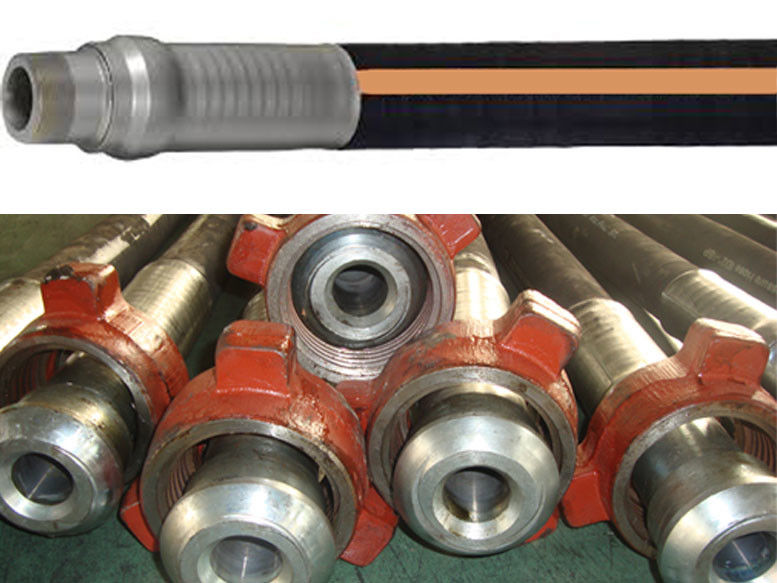

Rotary drilling hose is mainly used for conveying water-based or oil-based mud and other fluids in the working temperature of -30 °C to +82 °C. It is often used for oil fields, cement repairing, geological exploration and water conveyance for coal excavation. It is composed of three parts: tube, reinforcement and cover. The tube is made from NBR, which is resistant to abrasion, corrosion and oils. The reinforcement is made from 2-8 layers of high tensile and high strength spiraled steel wire, making the hose have solid structure and resistant to high pressure. The cover is made from high quality synthetic rubber, mainly chloroprene rubber, making the hose resistant to abrasion, corrosion, cut, weather, ozone, aging and sunlight. The hose has longer service life as a result.



Product Specifications



  • Tube: NBR, specially compounded for handling abrasive, corrosive and oil-based drilling mud
  • Reinforcement: Multiple layers of polyester cord over tube, high tensile steel cables.
  • Cover: NBR, Specially compounded, resistant to abrasion, corrosion, cutting, gouging, oil and weather.
  • Coupling Fitting: Hammer Unions, API Male End, Flanges
  • Standard: API Spec 7k



Product Details



Tube: high quality synthetic rubber, mainly NBR, which is resistant to abrasion, corrosion and oils.
Reinforcement: 2-8 layers of high tensile and high strength spiraled steel wire, making the hose work well in high pressure working conditions.
Cover: high quality synthetic rubber, mainly chloroprene rubber, making the hose resistant to abrasion, corrosion, cut, weather, ozone, aging and sunlight.
Working temperature: -30 °C to +82 °C.
Note: rotary drilling hose can be divided into five kinds according to the working pressure: grade A, grade B, grade C, grade D and grade E.



Technical Specifications of Drilling Rotary Hose



Size ID OD Working Pressrue Burst Pressure Bend Radius Weight
TYPE mm mm BAR psi BAR psi mm Kg/m
2" 51 69 35 5072 87.5 12679 900 5.7
2.5" 64 84 35 5072 87.5 12679 1100 6.7
3" 76 107 35 5072 87.5 12679 1200 16.2
3.5" 89 120 35 5072 87.5 12679 1300 18.4
4" 102 133 35 5072 87.5 12679 1400 20.3
2" 51 72 70 10143 175 25358 1000 6.2
2.5" 64 88 70 10143 175 25358 1200 7.4
3" 76 116 70 10143 175 25358 1300 23.7
3.5" 89 129 70 10143 175 25358 1400 26.6
4" 102 142 70 10143 175 25358 1600 29.8



Oil Based Oilfield Kelly Drilling Rotary Hose 35Mpa 0



Application of Rotary Drilling Hose



  • It is mainly used for conveying water-based or oil-based mud and other fluids.
  • It is often used for oil fields, cement repairing, geological exploration and water conveyance for coal excavation.
  • General info of our rotary hose.



Xi'an TianRui Petroleum Machinery Equipment Company Limited is a professional manufacturer and supplier of all types of petroleum equipment. The company is located in Xi'an city of China. And we have many years of history in the petroleum equipment industry. Our main products include drilling equipment, solid control equipment, oil production equipment, wellhead equipment, well control equipment, downhole tools, OCTG pipe, vavle & pipe fitting and oilfield tools.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
