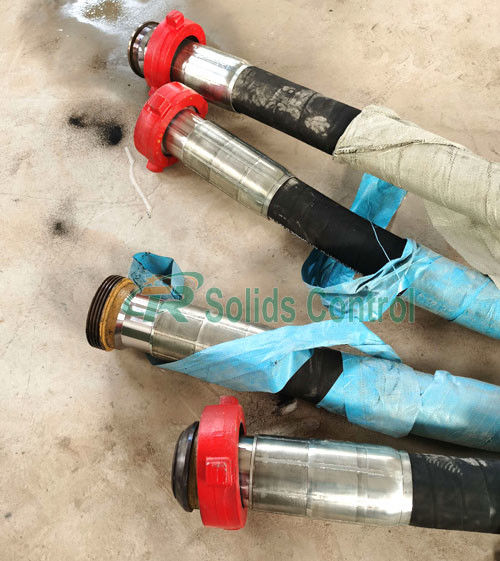

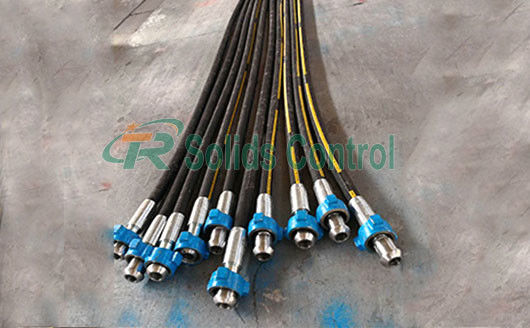

3 1/2" API Rotary Drilling Hose With NPT Hammer Unions

3 1/2" API Rotary Drilling Hose With NPT Hammer Unions
3 1/2" API Rotary Drilling Hose With NPT Hammer Unions 3 1/2" API Rotary Drilling Hose With NPT Hammer Unions 3 1/2" API Rotary Drilling Hose With NPT Hammer Unions

Large Image :  3 1/2" API Rotary Drilling Hose With NPT Hammer Unions

Product Details:

Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API Spec 7K, ISO
Model Number: Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 60000 M Per Month
Detailed Product Description
Working Temperature: 5000psi,10000psi,15000psi Length: 100m/60m/50m/20m
Size: 4in-12inch Grade: A, B, C, D, E, F, G
Connection: Hammer Uion Connector Code: TBG, LP
Material: BR Rubber Usgae: Energy & Mining
High Light:

3 1/2" API Rotary Drilling Hose

,

NPT Hammer Unions Rotary Drilling Hose

,

Stationary Rotary Drilling Hydraulic Hose

3 1/2" API Rotary Drilling Hose with NPT Hammer Unions



Product Overview



Drilling hose/ Rotary Hose, made according to API 7K standard, applies for flexible hose connection between the top of oil drilling, well cementing, work-over and down hole servicing operation. Drilling hose is also used to adjust the installation mistake between drilling pipe line and stand pipe to avoid shake. To transmit high pressure oil or water based mud.



Our high-pressure frac hose is a composite hose that can be readily manufactured to multiple lengths, from 2- to 4-in. ID, and pressures up to 15,000 psi to meet your individual requirements. This hose provides improved frac media resistance and enhanced flow rates, which enables you to enhance your frac operation.


Recommended For


Flexible connection between standpipe and swivel (Rotary Drilling) or between pump and standpipe (Rotary Vibrator) for pumping mud at extra high pressure in oil drilling and exploration work. Meets the high demands of directional drilling and down linking with negative pressure pulses and elevated temperatures. This hose can also be used as a Motion Compensator hose for stabilization of rotary drilling and pumping equipment against vertical wave action on offshore drill platforms. The Motion Compensator hose is not recommended for phosphate ester fluids.



Product Construction



  • Inner rubber protection layer
  • Middle rubber layer
  • Steel wire spiral layer
  • External rubber cover

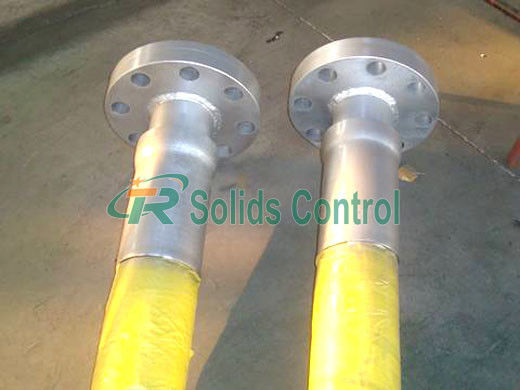

  • Built-in API couplings with male thread, integral unions and couplings, single couplings, flanges



Technical Parameters of Drilling Rotary Hose



Size ID OD Working Pressrue Burst Pressure Bend Radius Weight
TYPE mm mm BAR psi BAR psi mm Kg/m
2" 51 69 35 5072 87.5 12679 900 5.7
2.5" 64 84 35 5072 87.5 12679 1100 6.7
3" 76 107 35 5072 87.5 12679 1200 16.2
3.5" 89 120 35 5072 87.5 12679 1300 18.4
4" 102 133 35 5072 87.5 12679 1400 20.3
2" 51 72 70 10143 175 25358 1000 6.2
2.5" 64 88 70 10143 175 25358 1200 7.4
3" 76 116 70 10143 175 25358 1300 23.7
3.5" 89 129 70 10143 175 25358 1400 26.6
4" 102 142 70 10143 175 25358 1600 29.8



3 1/2" API Rotary Drilling Hose With NPT Hammer Unions 0
