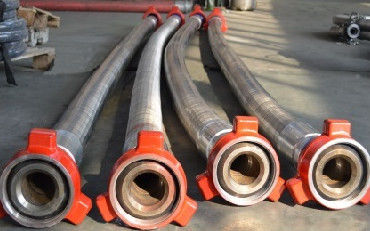

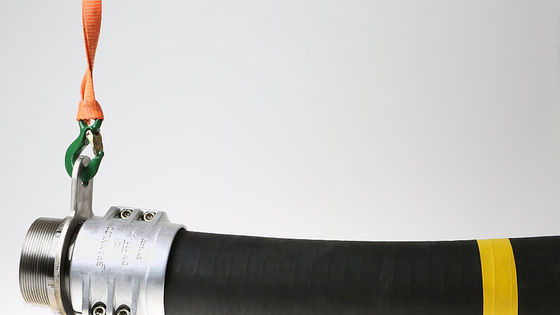

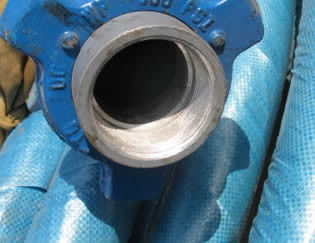

5 Inch 5000PSI Spiral Rotary Drilling Hydraulic Hose

5 Inch 5000PSI Spiral Rotary Drilling Hydraulic Hose
5 Inch 5000PSI Spiral Rotary Drilling Hydraulic Hose 5 Inch 5000PSI Spiral Rotary Drilling Hydraulic Hose 5 Inch 5000PSI Spiral Rotary Drilling Hydraulic Hose

Large Image :  5 Inch 5000PSI Spiral Rotary Drilling Hydraulic Hose

Product Details:

Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API Spec 7K, ISO
Model Number: Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 M Per Month
Detailed Product Description
Working Temperature: 5000psi,10000psi,15000psi Length: 100m/60m/50m/20m
Standard: API 7A NACE-0175 Size: 4in-12inch
Grade: A, B, C, D, E, F, G Connection: Hammer Uion
Connector Code: TBG, LP Warranty: 12 Months
High Light:

5000PSI Rotary Drilling Hydraulic Hose

,

5 Inch Rotary Drilling Hydraulic Hose

,

API 7A Rotary Drilling Hydraulic Hose

Rotary Drilling Hydraulic Hose 5 Inch Pressure 5000 PSI



Product Overview



The drilling hoses have found their wide application in the extraction of minerals such as oil, and gas. With the help of the drill pipe, a drilling mud is injected into the well at a very high pressure, most often technical water, hydrogel solution or clay-based solutions. The drill hose is also used between oil tankers and drilling wells in the sea. Drilling hoses can be used on stationary and mobile drilling rigs, for drilling wells in the sea.



The hose for drilling is also used for damping vibrations of rotary plants. In this case, it is made of small length and serves as a compensator.



Construction



It is composed of an inner rubber protection layer, middle rubber layer, steel wire spiral layer and external rubber cover.


Applications: Steel wire spiral drilling rubber hoses are used in oil fields, well cementing, well repairing, geological explorations, small drilling machine, and water conveyance at coal excavations. They are useful to carry slurry, water at environmental temperature, and other fluids.
Working Temperature: From -40℃ up to +100℃
Executive Standard: GB10544-2003, API Spec 7K, SY 5469.


Recommended For


Flexible connection between standpipe and swivel (Rotary Drilling) or between pump and standpipe (Rotary Vibrator) for pumping mud at extra high pressure in oil drilling and exploration work. Meets the high demands of directional drilling and down linking with negative pressure pulses and elevated temperatures. This hose can also be used as a Motion Compensator hose for stabilization of rotary drilling and pumping equipment against vertical wave action on offshore drill platforms. The Motion Compensator hose is not recommended for phosphate ester fluids.



Technical Data of Drilling Rotary Hose



Size ID OD Working Pressrue Burst Pressure Bend Radius Weight
TYPE mm mm BAR psi BAR psi mm Kg/m
2" 51 69 35 5072 87.5 12679 900 5.7
2.5" 64 84 35 5072 87.5 12679 1100 6.7
3" 76 107 35 5072 87.5 12679 1200 16.2
3.5" 89 120 35 5072 87.5 12679 1300 18.4
4" 102 133 35 5072 87.5 12679 1400 20.3
2" 51 72 70 10143 175 25358 1000 6.2
2.5" 64 88 70 10143 175 25358 1200 7.4
3" 76 116 70 10143 175 25358 1300 23.7
3.5" 89 129 70 10143 175 25358 1400 26.6
4" 102 142 70 10143 175 25358 1600 29.8



5 Inch 5000PSI Spiral Rotary Drilling Hydraulic Hose 0



Xi'an TianRui Petroleum Machinery Equipment Company Limited is a professional manufacturer of cementing tools and other petroleum equipment in China. We are the first-class supplier of resources market of SINOPEC and CNPC. Our products include cement tools, PDC drilling bits, Wellheading tools, Mud pumps and their acceossries. They are exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia , African, Australia,Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.



The company possesses excellent office environment, specialized technology, business and management team. In the course of future development, the company will continue to enhance product quality and technical service management. We are committed to build the company into a international first-class "one stop" comprehensive oil drilling products supplier and service providers, providing each customer in the world with high quality & affordable products and professional & perfect service!



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
