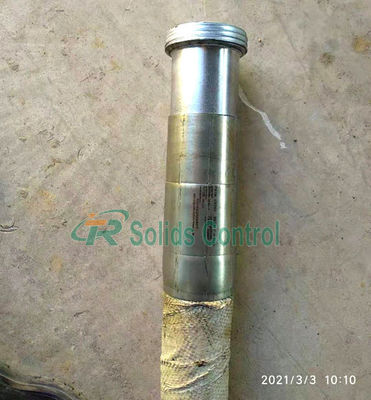

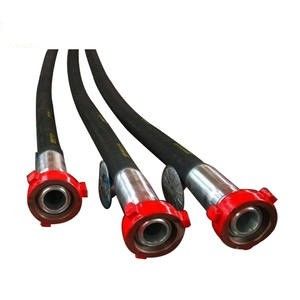

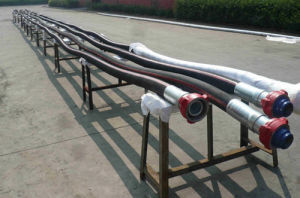

Hydraulic API 3" Rotary Hose Drill Spare Parts 20m Length

Hydraulic API 3" Rotary Hose Drill Spare Parts 20m Length
Hydraulic API 3" Rotary Hose Drill Spare Parts 20m Length Hydraulic API 3" Rotary Hose Drill Spare Parts 20m Length Hydraulic API 3" Rotary Hose Drill Spare Parts 20m Length

Large Image :  Hydraulic API 3" Rotary Hose Drill Spare Parts 20m Length

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API Spec 7K, ISO
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 30000 M Per Month
Detailed Product Description
Reinforcement Layer: 2~8 Layers Wire Working Temperature: 5000psi,10000psi,15000psi
Temperature: -30C~+121C Length: 100m/60m/50m/20m
Standard: API 7K Use Scenarios: Petroleum-based Hydraulic Oil
Size: 4in-12inch Weight: 0.40kg/m-29.8kg/m
High Light:

Rotary Hose Drill Spare Parts

,

API 3" Drill Spare Parts

,

20m Length Drill Spare Parts

API High Strength Oil Well Drilling 3" Rotary Hose



Purpose: suitable for rotary hose for flexible connection between the top of the drilling riser and the vertically movable water faucet in the oil drilling and mud delivery systems, and for the adjustment of installing error between the drilling pump line and the riser for the connection and vibration isolation.



It is also suitable for delivering in large quantity at high pressure the water-based or oil-based mud with the min. aniline point at 66℃ pump out of rotary drilling equipment. Moreover, it resists to corrosion from hydrogen sulfide and delivers water, oil, mud and other high-pressure media in borehole operation in oil field.



Construction: Our drilling hose is composed of an inner rubber protection layer, middle rubber layer, steel wire spiral layer and external rubber cover.



Characterstics of Our Drilling Rotary Hose:

  1. It provides high pressure resistance and superior impulse resistance.
  2. It provides superior kink resistance and fatigue resistance and longer services life.
  3. It provides superior bonding in hose internal, soft use and small deformation under pressure.
  4. It provides superior oil resistance, heat resistance and aging resistance by using special synthetic rubber.

Technical Sheet Data of Oil Drilling Rotary Hose



Size ID OD Working Pressrue Burst Pressure Bend Radius Weight
TYPE mm mm BAR psi BAR psi mm Kg/m
2" 51 69 35 5072 87.5 12679 900 5.7
2.5" 64 84 35 5072 87.5 12679 1100 6.7
3" 76 107 35 5072 87.5 12679 1200 16.2
3.5" 89 120 35 5072 87.5 12679 1300 18.4
4" 102 133 35 5072 87.5 12679 1400 20.3
2" 51 72 70 10143 175 25358 1000 6.2
2.5" 64 88 70 10143 175 25358 1200 7.4
3" 76 116 70 10143 175 25358 1300 23.7
3.5" 89 129 70 10143 175 25358 1400 26.6
4" 102 142 70 10143 175 25358 1600 29.8



Hydraulic API 3" Rotary Hose Drill Spare Parts 20m Length 0
