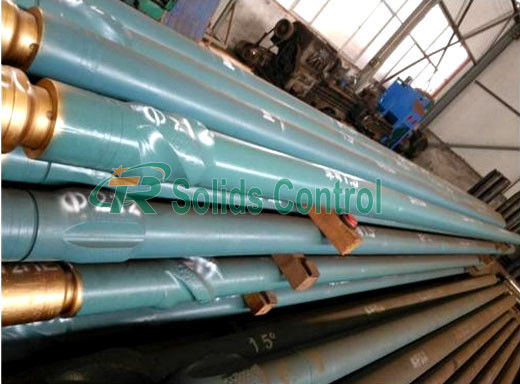

Well Drilling API Oilfield Downhole Mud Motors Casting

Well Drilling API Oilfield Downhole Mud Motors Casting
Well Drilling API Oilfield Downhole Mud Motors Casting Well Drilling API Oilfield Downhole Mud Motors Casting Well Drilling API Oilfield Downhole Mud Motors Casting

Large Image :  Well Drilling API Oilfield Downhole Mud Motors Casting

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API & ISO Certificate
Model Number: TR-5LZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable

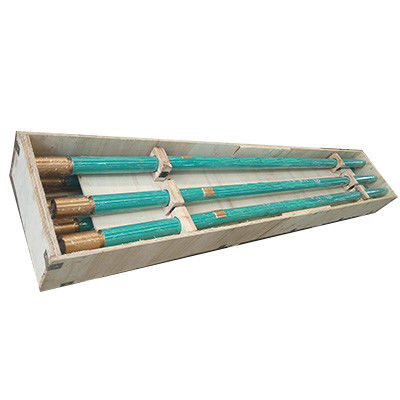

Packaging Details: Pallet or wooden case
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 7000 pcs per month
Detailed Product Description
Thread: 2 3/8" Reg Material: Carbide
Use: Well Drilling, Energy & Mining Processing Type: Forging/Casting
Color: Blue, Green, White Model: 5LZ127x7.0
Size: 3 1/4"-17 1/2" Benefit: High Efficient
High Light:

API Oilfield Downhole Mud Motors

,

Well Drilling Downhole Mud Motors

,

Casting Downhole Mud Motors

Oilfield 5LZ127x7.0 API Downhole Drilling Mud Motors



Product Descrption



Drilling mud motor is a kind of mud-driving down hole drilling tool. The mud from the mud pump goes through the bypass valve and enters the motor. At the gate of the motor it forms pressure difference to rotate the motor’s rotator and to pass the drilling rigs through the cardan and transmission shaft. The performance of the downhole motor is mainly determined by the parameters of the motor.


We are specialized in designing & manufacturing mud motor, motor manufacturing, testing and maintenance equipment. The stable quality and high performance of our mud motors, spare parts and equipment have been effectively proven by customers in Russia, India, Iran and China.



Resistance High-temperature And Oil Based Mud


The downhole motor is suitable for high-temperature, high oil base mud system. In the conditions of less than 180°C and high oil, specially formulated stator elastomer owns high retention rates of strong force strength, tear strength and other properties. The oil-resistant elastomer with reasonable magnitude of interference has better using effect in the high-temperature, high oil base mud.



Characterstics of Oilfield Downhole/Mud Motor

  1. Better hole deviation control.
  2. Reduction in drill string failure rate.
  3. Reduction in wear and tear of the swivel, Kelly, and rotary drives.
  4. Increased rate of penetration.
  5. Reduction in fuel cost, since compared to rotary drilling, less energy is required to power a downhole motor.

Technical Data of Our Downhole/Mud Motor



Item No
Hole Size

Input

Flow

Rate

Pressure

Loss

Bit

Speed

Working

Torque

Delay

Dynamic

Torque

Output

Power

Max

Drilling

Weight

Joint Thread Length
Unit mm In L/S Mpa r/min N.m N.m KW KN In In mm
5LZ73×7.0 83-121 3 1/4-4 3/4 2-4 3.2 80-160 615 1077 5.8-11.5 25 2 3/8REG 2 3/8REG 3423
9LZ89×7.0 105-143 4 1/8-5 5/8 3-8 3.2 147-392 504 882 8.64-23 30 2 7/8REG 2 7/8REG 2911
5LZ95×7.0 114-150 4 1/8-5 7/8 5-12 3.2 140-320 710 1240 10.5-25 40 2 7/8REG 2 7/8REG 3920
5LZ120×7.0 152-200 6-7 7/8 8-16 3.2 80-180 1850 3200 23-47 106 3 1/2REG 3 1/2REG 5039
5LZ165×7.0V 245-244 8 1/8-9 5/8 18-30 3.2 111-167 4440 7770 57.6-86.4 160 4 1/2REG 4 1/2REG 7408
5LZ165.5×7.0V 215-244 8 1/8-9 5/8 18-30 4.0 120-180 5135 8987 72-108 180 4 1/2REG 4 1/2REG 7748
5LZ172×7.0V 215-244 8 1/8-9 5/8 18-30 4.0 120-180 5135 8987 72-108 180 4 1/2REG 4 1/2REG 7391
5LZ172.5×7.0V 215-244 8 1/8-9 5/8 20-35 4.0 115-180 6452 11299 86.4-151.2 200 4 1/2REG 4 1/2REG 8031
7LZ172.5×7.0V 215-244 8 1/8-9 5/8 20-35 4.0 75-180 6527 11420 59.5-108.6 160 4 1/2REG 4 1/2REG 8631
5LZ185×7.0 215-244 8 1/8-9 5/8 20-35 4.0 184 5436 8154 80-140 240 4 1/2REG 6 1/2REG 8120
5LZ185.5×7.0 215-244 8 1/8-9 5/8 20-35 4.0 173 5939 8908 80-140 240 4 1/2REG 6 1/2REG 8120
5LZ197×7.0 244-311 9 1/8-12 5/8 20-40 3.2 61-122 14118 14118 57.6-115.2 240 5 1/2REG 6 5/8REG 7998
5LZ197.5×7.0 244-311 9 5/8-12 1/4 20-40 4.0 85-160 12640 12640 72-144 260 5 1/2REG 6 5/8REG 8598
7LZ203×7.0 244-311 9 5/8-12 1/4 20-40 3.2 70-155 12289 12289 57.6-126.7 240 5 1/2REG 6 5/8REG 7798
5LZ203.5×7.0 244-311 9 5/8-12 1/4 20-40 4.0 70-155 8778 15362 72-158.4 260 5 1/2REG 6 5/8REG 8598
5LZ244×7.0 311-445 12 1/2-17 1/2 50-75 3.2 91-136 15124 26468 144-216 360 6 5/8REG 7 5/8REG 8635
7LZ244.5×7.0 311-445 12 1/2-17 1/2 50-75 4.0 91-136 18905 33085 180-270 450 6 5/8REG 7 5/8REG 9235



Well Drilling API Oilfield Downhole Mud Motors Casting 0



Xi'an TianRui Petroleum Machinery Equipment Company Limited is a professional supplier of various oilfield equipment, including oil drilling and service equipment,oil production equipment,OCTG ,wellhead & downhole tools and spare parts with API certification. Our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). We have become VIP (assigned) supplier and built strategic partnership with some coutries' national petroleum companies.



We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us. Xi'an TianRui Petroleum Machinery Equipment Company Limited was founded in 2010, in Xi'an City, Shaanxi Province. Its business covers drilling and workover rigs spare parts, solids control equipment, wellhead equipment and tools, oiflied fishing tools , downhole tools, drilling strings, OTCG and other equipments related with petroleum. Strictly abide by ISO9001 quality system certification and API standard. At the same time, we build one new workshop for the forging and casting production for the oilfield tools, We can offer the precision forging and casting production according to the customer's drawing. Our engineers help the customer's design and drawing, then make production for the customers.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
