Product Details:
Payment & Shipping Terms:
|
| Size: | 5/8" ~ 1-1/8" | Thread Size: | 15/16" |
|---|---|---|---|
| Length Of Pin: | 31.75 Mm | Length Of Wrench: | ≥ 31.8 Mm |
| Warranty: | 12 Months | Package: | Wooden Case |
| Type: | Coupling Rod Guide, Wheeled Rod Guide, Clamp Rod Guide | Material: | Steel |
| High Light: | Downhole Tool Sucker Rod Guide,Non Rotating Sucker Rod Guide,Solids Control Sucker Rod Guide |
||

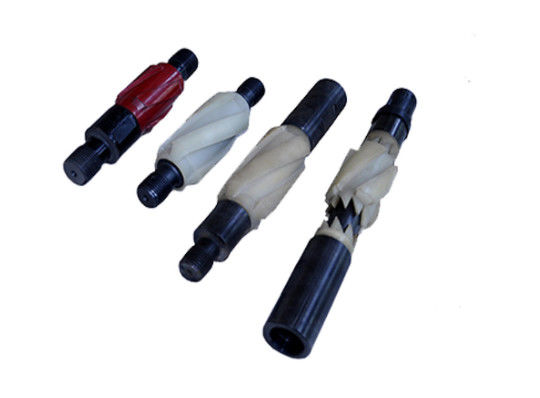

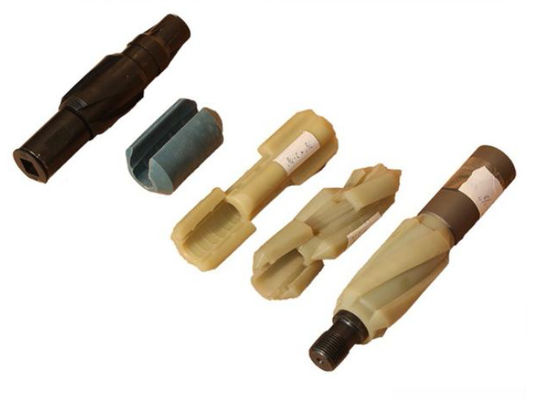

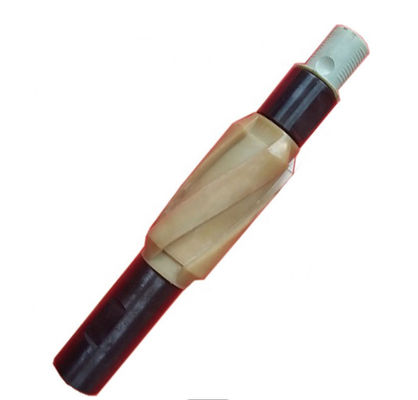

Non-Rotating Downhole Tool Sucker Rod Centralizer / Guide
Product Introduction
The sucker rod centralizers are used to protect sucker rod to reduce wearing. Designed to be used with moderate to heavy loads in non-corrosive or effectively inhibited wells. The design allows for easy install. And our sucker rod centralizer made of UHMW-PE with high strength and tenacity, longer lifetime, high anti-friction etc.
Twist-On rod guides contain no metal clip insert. Tests, however, indicate an excellent holding strength due to design and materials. The Twist-On style rod guide can easily be installed with a pipe wrench, and withstands temperatures up to 2000 F.
Features of our Sucker Rod Centralizer
Product Material
1. Plastic: UHMWPE (Ultra High Molecular Weight Polyethylene)
2. Rubber: Nitrile
3. Nylon: Nylon 6/6
4.. 42CrMo
Main Specifications of Sucker Rod Centralizer
| Size | Rod D.(in) | Thread D.(in) | Length of pin(mm) | Length of wrench(mm) | Width of Wrench (mm) | Length of rod(ft) |
| 5/8 | 5/8 | 15/16 | 31.75 | ≥ 31.8 | 22.20 | 2 / 4 /6 / 8 /10/25/30 |
| 3/4 | 3/4 | 1-1/16 | 36.50 | ≥ 31.8 | 25.40 | 2 / 4 /6 / 8 /10/25/30 |
| 7/8 | 7/8 | 1-3/16 | 41.28 | ≥ 31.8 | 25.40 | 2 / 4 /6 / 8 /10/25/30 |
| 1 | 1 | 1-3/8 | 47.63 | ≥38.1 | 33.30 | 2 / 4 /6 / 8 /10/25/30 |
| 1-1/8 | 1-1/8 | 1-9/16 | 53.98 | ≥41.3 | 38.10 | 2 / 4 /6 / 8 /10/25/30 |
Xi'an TianRui Petroleum Machinery Equipment Company Limited is an ISO-9001, ISO-14001, OHSAS-18001 certified company and has all the quality systems in place for design, planning,manufacturing and quality monitoring & traceability to ensure that our products match the highest quality & reliability Standards similar to any International major in this field.
As the manufacturer, we produce below items:
-Solid control product-shale shaker, mud cleaner, decanter centrifuge, mud agitator, centrifugal pump etc.
-DST tools- Full bore retrievable packer, circulating valve, select tester valve,safety valve etc.
-Surface well testing equipment - Flowhead, SSV, ESD,Separator etc.
-Wellhead equipment such as BOP, X-mas tree, Choke manifold, kill manifold, drilling spool, casing head and other valve & flanges
-Downhole tools such as stabilizer, stabilizer forging, reamer, X-over sub and so on..
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
