| Size: | 5/8" ~ 1-1/8" | Thread Size: | 15/16" |
|---|---|---|---|
| Length Of Pin: | 31.75 Mm | Length Of Wrench: | ≥ 31.8 Mm |
| Warranty: | 12 Months | Package: | Wooden Case |
| Type: | Coupling Rod Guide, Wheeled Rod Guide, Clamp Rod Guide | Material: | Steel |
| High Light: | Twist On Nylon Sucker Rod Centralizer,Oilfield Nylon Sucker Rod Centralizer,15" Thread Sucker Rod Centralizer |
||

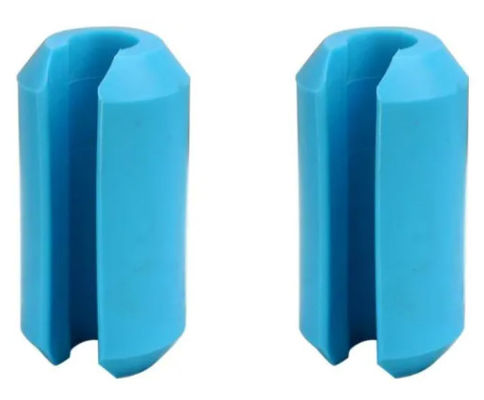

Twist On Nylon Sucker Rod Centralizer / Guide for Oilfield
Product Overview

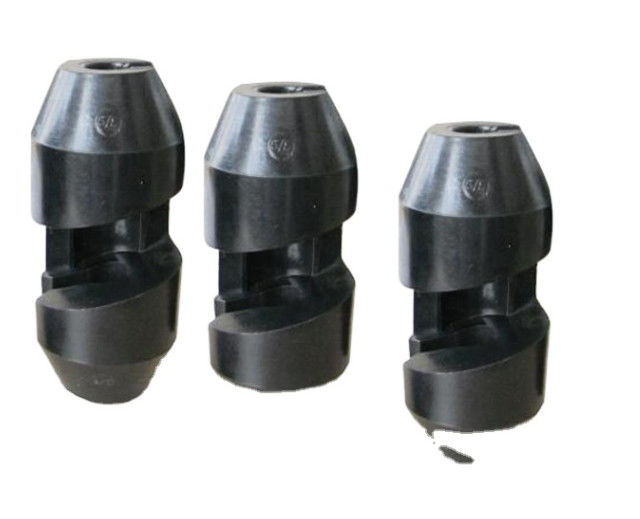

Twist-On rod guides contain no metal clip insert. Tests, however, indicate an excellent holding strength due to design and materials. The Twist-On style rod guide can easily be installed with a pipe wrench, and withstands temperatures up to 2000 F.
Sucker rod is used to prevent the pumping rod centralizer and columns and tubing wall friction. Our company can produce the twisted card sucker rod centralizer, with installation and removal easy, high strength, high toughness, low creep, low water absorption, anti-corrosion oil, wear characteristics. Compared with the plug-formed stabilizer, less prone to fall off, the card pumps and so on. Is the major oil production in the ideal of a sucker rod centralizer.
Three Types
1) Twist centralizer: Low cost, easily operated.
2) Wheel centralizer: When sucker rod works, wheels roll on tubing inside. It can avoid sucker rod rubbing with tubing pipe.

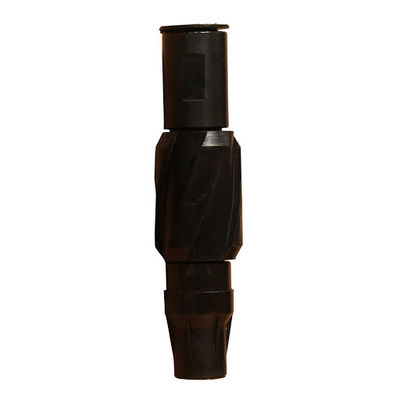

3) Rod shaped centralizer: When sucker rod works, nylon block touches tubing inside, it can avoid sucker rod rubbing with tubing pipe. Nylon block can rotate, then the rub is even wear. The user only change nylon block replace rod body, which reduces fabrication-cost.
Features of our Sucker Rod Centralizer
Technical Sheet of Sucker Rod Centralizer
| Size | Rod D.(in) | Thread D.(in) | Length of pin(mm) | Length of wrench(mm) | Width of Wrench (mm) | Length of rod(ft) |
| 5/8 | 5/8 | 15/16 | 31.75 | ≥ 31.8 | 22.20 | 2 / 4 /6 / 8 /10/25/30 |
| 3/4 | 3/4 | 1-1/16 | 36.50 | ≥ 31.8 | 25.40 | 2 / 4 /6 / 8 /10/25/30 |
| 7/8 | 7/8 | 1-3/16 | 41.28 | ≥ 31.8 | 25.40 | 2 / 4 /6 / 8 /10/25/30 |
| 1 | 1 | 1-3/8 | 47.63 | ≥38.1 | 33.30 | 2 / 4 /6 / 8 /10/25/30 |
| 1-1/8 | 1-1/8 | 1-9/16 | 53.98 | ≥41.3 | 38.10 | 2 / 4 /6 / 8 /10/25/30 |
