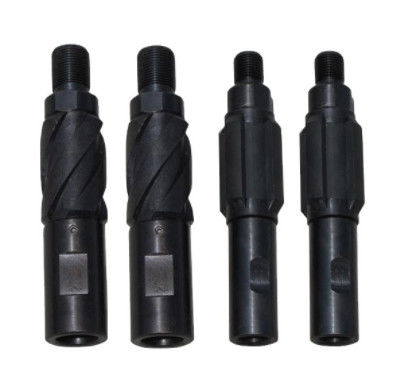

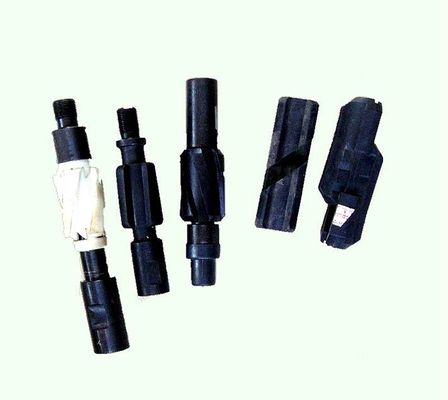

Anti Corrosion Oilfield Sucker Rod Centralizer 7/8"

Anti Corrosion Oilfield Sucker Rod Centralizer 7/8"
Anti Corrosion Oilfield Sucker Rod Centralizer 7/8" Anti Corrosion Oilfield Sucker Rod Centralizer 7/8" Anti Corrosion Oilfield Sucker Rod Centralizer 7/8"

Large Image :  Anti Corrosion Oilfield Sucker Rod Centralizer 7/8"

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 11B, ISO 9001
Model Number: TR-CGF
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20000 pcs per month
Detailed Product Description
Size: 5/8" ~ 1-1/8" Thread Size: 15/16"
Length Of Pin: 31.75mm Length Of Wrench: ≥ 31.8 Mm
Warranty: 12 Months Package: Wooden Case
Material: Steel Color: Black, Red Etc.
High Light:

7/8" Oilfield Sucker Rod Centralizer

,

Anti Corrosion Sucker Rod Centralizer

,

31.75mm Pin Sucker Rod Centralizer

Anti-Corrosion Oilfield Sucker Rod Centralizer Size 7/8"



Product Introduction



Sucker rod centralizer is used to centralize the lifting rod in beam pumps and the rotating rod in progressive cavity down hole artificial lift pumps. By centralizing the rod, the guide acts as a wear resistant bushing, preventing the rod from wearing through the production tubing. Rod and production tubing contact is increased in deviated wells and horizontally drilled unconventional shale wells.

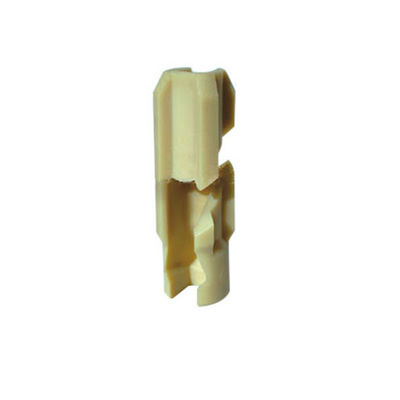

Twist-On rod guides contain no metal clip insert. Tests, however, indicate an excellent holding strength due to design and materials. The Twist-On style rod guide can easily be installed with a pipe wrench, and withstands temperatures up to 2000 F.



Product Structure


Sucker rod centralizer is composed of collar, centering sleeve and nipple.



Main Application



Rod up and down inside the tubing activity, due to the elastic deformation of sucker rod, rod and oil tube wall is easy to produce friction, sucker rod break off easily, sucker rod centralizer has strong flexibility, it contact with the pipe wall, can reduce the friction of rod and tube, enhance the production life of pumping unit.



By centralizing the rod, the sucker rod guide acts as a wear resistant bushing, preventing the rod from wearing through the production tubing. Rod and production tubing contact is increased in deviated wells and horizontally drilled unconventional shale wells. Rod guides, used in wells with server deviation or with pumps set beyond the kickoff point in horizontally drilled wells, increase mean time between failure, decrease artificial lift cost, and increase well profitability.



Technical Information of Sucker Rod Centralizer



Size Rod D.(in) Thread D.(in) Length of pin(mm) Length of wrench(mm) Width of Wrench (mm) Length of rod(ft)
5/8 5/8 15/16 31.75 ≥ 31.8 22.20 2 / 4 /6 / 8 /10/25/30
3/4 3/4 1-1/16 36.50 ≥ 31.8 25.40 2 / 4 /6 / 8 /10/25/30
7/8 7/8 1-3/16 41.28 ≥ 31.8 25.40 2 / 4 /6 / 8 /10/25/30
1 1 1-3/8 47.63 ≥38.1 33.30 2 / 4 /6 / 8 /10/25/30
1-1/8 1-1/8 1-9/16 53.98 ≥41.3 38.10 2 / 4 /6 / 8 /10/25/30


Anti Corrosion Oilfield Sucker Rod Centralizer 7/8" 0
