Product Details:
Payment & Shipping Terms:
|
| Size: | 5/8" ~ 1-1/8" | Thread Size: | 15/16" |
|---|---|---|---|
| Processing Type: | Forging | Length Of Pin: | 31.75 Mm |
| Length Of Wrench: | ≥ 31.8 Mm | Usage: | Oil Well Application |
| Material: | Nylon | Length Of Rod: | 2 Ft |
| High Light: | Nylon Sucker Rod Centralizer,Pumping Well Sucker Rod Centralizer,16" Thread Sucker Rod Centralizer |
||

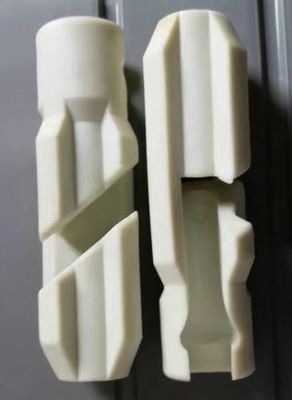

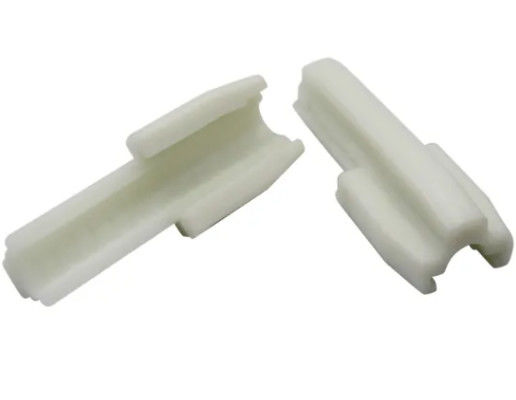

Nylon Sucker Rod Centralizer and Guide for Oilfield
Product Overview
Sucker rod centralizer is used in pumping well, it's a tool which can set upright the sucker rod, and protect the sucker rod wiping with tubing pipe.
Sucker rod is used to prevent the pumping rod centralizer and columns and tubing wall friction. Our company can produce the twisted card sucker rod centralizer, with installation and removal easy, high strength, high toughness, low creep, low water absorption, anti-corrosion oil, wear characteristics. Compared with the plug-formed stabilizer, less prone to fall off, the card pumps and so on. Is the major oil production in the ideal of a sucker rod centralizer.
Specifications
1) Standard: API 11B
2) API and ISO certified
3) Specification: 5/8-1 3/4"
4) Type: Coupling Sucker Rod Guide.
Working Theory
It connect with sucker rod, the centralizer casing OD is larger than the sucker rod coupling OD in order to centralizer rod. Centralizer casing has high strength wear resistant, so when contact with oil tube, makes the centralizer body wearing and reduces oil tube wearing so as to anti-wear (centralizer casing temperature resistant: 260°C, material: self-lubricating Ni-p plating material). The steel surface adopt Ni-p plating (the anti-corrosion technology) makes the centralizer has the ability of anti-wear and anti-corrosion. And it also suitable for the worse corrosion well condition.
Main Technical Data of Sucker Rod Centralizer
| Size | Rod D.(in) | Thread D.(in) | Length of pin(mm) | Length of wrench(mm) | Width of Wrench (mm) | Length of rod(ft) |
| 5/8 | 5/8 | 15/16 | 31.75 | ≥ 31.8 | 22.20 | 2 / 4 /6 / 8 /10/25/30 |
| 3/4 | 3/4 | 1-1/16 | 36.50 | ≥ 31.8 | 25.40 | 2 / 4 /6 / 8 /10/25/30 |
| 7/8 | 7/8 | 1-3/16 | 41.28 | ≥ 31.8 | 25.40 | 2 / 4 /6 / 8 /10/25/30 |
| 1 | 1 | 1-3/8 | 47.63 | ≥38.1 | 33.30 | 2 / 4 /6 / 8 /10/25/30 |
| 1-1/8 | 1-1/8 | 1-9/16 | 53.98 | ≥41.3 | 38.10 | 2 / 4 /6 / 8 /10/25/30 |
