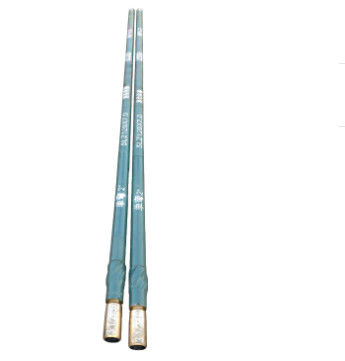

Forged Coiled Tubing Tools Positive Displacement Motor

Coiled Tubing Tools Mud Motor Hole Size 8 1/8"-9 5/8"

Product Descrption

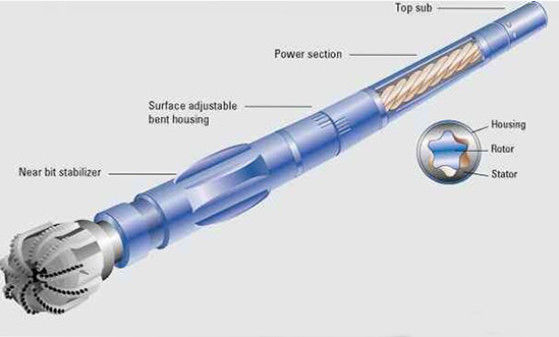

Downhole Mud Motors, also called Positive-Displacement Motors (PDM), make use of a power generation section which is made up of a rotor/stator combination. In order to move a rotor part, a PDM requires hydraulic power from drilling fluid flowing through the power generation part. With a PDM, the stator and rotor work in tandem in the same way that gears do. The stator acts as the outer gear, and is made from a moulded elastomer featuring at least two lobes. The OD of the elastomer is protected by a secure metal casing. The rotor is positioned within the stator, and acts as an internal gear. This rotor is made of metal, and will have one less gear or lobe than the stator. Because of this difference, a cavity is created which is filled with drilling fluid when the PDM is downhole. This cavity acts as a wedge when it is put under pressure, and because the drilling fluid itself can’t be compressed, the force applied to the top of the wedge causes the rotor to move.

Motor Assembly

Downhole motor stator is machined from high quality alloy steel, while rotor is made of rubber. It keeps the tool suitable for high temperature and high oil mud system. Big force and tearing strength of the rubber stator keeps the tool can also run under the high temperature at about 180℃ and also the high oil mud condition. All these benefits help to obtain the good operation effect. We have a external coating on the downhole motor rotor, it gives the tool a much longer service life.



Product Specification



1. Material: High manganese steel.
2. Standard: API.
3. Features: Big torque, high effective, wide flow rate range, running stable and long using time.
4. Specifications: Fit for 3 1/2"--17 1/2" well hole, including straight body, single- bent.



Main Specifications of Our Downhole/Mud Motor



Item No	Hole Size		Input Flow Rate	Pressure Loss	Bit Speed	Working Torque	Delay Dynamic Torque	Output Power	Max Drilling Weight	Joint Thread		Length
Unit	mm	In	L/S	Mpa	r/min	N.m	N.m	KW	KN	In	In	mm
5LZ73×7.0	83-121	3 1/4-4 3/4	2-4	3.2	80-160	615	1077	5.8-11.5	25	2 3/8REG	2 3/8REG	3423
9LZ89×7.0	105-143	4 1/8-5 5/8	3-8	3.2	147-392	504	882	8.64-23	30	2 7/8REG	2 7/8REG	2911
5LZ95×7.0	114-150	4 1/8-5 7/8	5-12	3.2	140-320	710	1240	10.5-25	40	2 7/8REG	2 7/8REG	3920

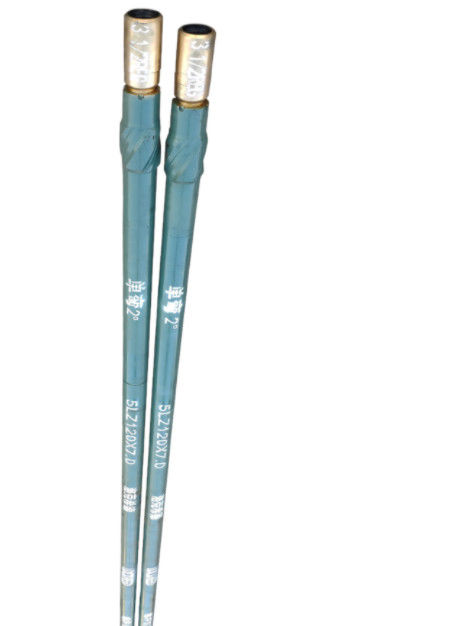

5LZ120×7.0	152-200	6-7 7/8	8-16	3.2	80-180	1850	3200	23-47	106	3 1/2REG	3 1/2REG	5039
5LZ165×7.0V	245-244	8 1/8-9 5/8	18-30	3.2	111-167	4440	7770	57.6-86.4	160	4 1/2REG	4 1/2REG	7408
5LZ165.5×7.0V	215-244	8 1/8-9 5/8	18-30	4.0	120-180	5135	8987	72-108	180	4 1/2REG	4 1/2REG	7748
5LZ172×7.0V	215-244	8 1/8-9 5/8	18-30	4.0	120-180	5135	8987	72-108	180	4 1/2REG	4 1/2REG	7391
5LZ172.5×7.0V	215-244	8 1/8-9 5/8	20-35	4.0	115-180	6452	11299	86.4-151.2	200	4 1/2REG	4 1/2REG	8031
7LZ172.5×7.0V	215-244	8 1/8-9 5/8	20-35	4.0	75-180	6527	11420	59.5-108.6	160	4 1/2REG	4 1/2REG	8631
5LZ185×7.0	215-244	8 1/8-9 5/8	20-35	4.0	184	5436	8154	80-140	240	4 1/2REG	6 1/2REG	8120
5LZ185.5×7.0	215-244	8 1/8-9 5/8	20-35	4.0	173	5939	8908	80-140	240	4 1/2REG	6 1/2REG	8120
5LZ197×7.0	244-311	9 1/8-12 5/8	20-40	3.2	61-122	14118	14118	57.6-115.2	240	5 1/2REG	6 5/8REG	7998
5LZ197.5×7.0	244-311	9 5/8-12 1/4	20-40	4.0	85-160	12640	12640	72-144	260	5 1/2REG	6 5/8REG	8598
7LZ203×7.0	244-311	9 5/8-12 1/4	20-40	3.2	70-155	12289	12289	57.6-126.7	240	5 1/2REG	6 5/8REG	7798
5LZ203.5×7.0	244-311	9 5/8-12 1/4	20-40	4.0	70-155	8778	15362	72-158.4	260	5 1/2REG	6 5/8REG	8598
5LZ244×7.0	311-445	12 1/2-17 1/2	50-75	3.2	91-136	15124	26468	144-216	360	6 5/8REG	7 5/8REG	8635
7LZ244.5×7.0	311-445	12 1/2-17 1/2	50-75	4.0	91-136	18905	33085	180-270	450	6 5/8REG	7 5/8REG	9235





Our Service

1. Fast Delivery. Normally 7 days after your payment for general type . And aout 30days if no stock or special request
2. Service before sale:
1) If you are the user of downhole motors, our professional technicans will make sure the products we select for you are most applicative.
2) If you are dealer, we will offer the most competitive price and professional technic support to help you enlarge your market .
3. Service after sale:
We will track the use of every product we sell. If the performance can't meet your comitment, we will change or remend it for you freely. Technics support will help you use the motor smoothly.



Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
