Product Details:
Payment & Shipping Terms:
|
| Size: | 3 1/2"-17 1/2" | Thread: | 2 3/8" Reg |
|---|---|---|---|
| Processing Type: | Forging/Casting | Color: | Blue, Green, White |
| Pressure Loss: | 3.2 To 4.0 Mpa | Bit Speed: | 185-430 R/m |
| Length: | 4.2m | Warranty: | 12 Months |
| Highlight: | Oil Well Drilling Mud Motor,2 3/8" Reg Thread Drilling Mud Motor,4.2m Drilling Mud Motor |
||

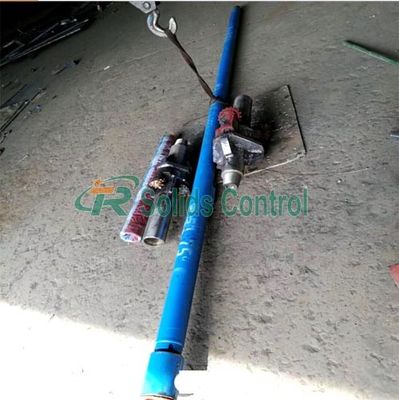

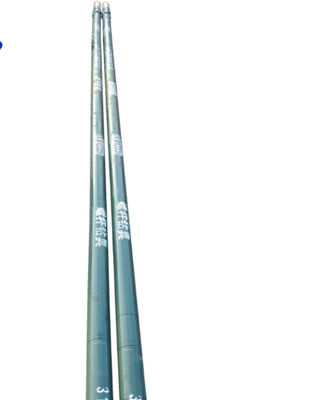

LZ Series Downhole Drilling Mud Motor for Oil Well
Product Descrption
Downhole motor is a positive displacement downhole power drilling tool, which is powered by drilling fluid and coverting fluid pressure into mechanical energy. Mud stream from the outlet of mud pump flows through a by-pass valve into the motor. This stream produces pressure loss between inlet and outlet of the motor to push the motor rotating around the stator's axis, then transmits rotation speed and torque to the bit by universal shaft and drive shaft to implement the well operation.
A positive displacement motor (PDM) is one of the most popular tool for drilling a directional well. It works by boring downwards and pumping mud through the motor itself. As shown in figure 1, the bottom section of the motor has an adjustable bend housing.
Resistance High-temperature And Oil Based Mud:
The downhole motor is suitable for high-temperature, high oil base mud system. In the conditions of less than 180°C and high oil, specially formulated stator elastomer owns high retention rates of strong force strength, tear strength and other properties. The oil-resistant elastomer with reasonable magnitude of interference has better using effect in the high-temperature, high oil base mud.
Corrosion-resistance:
After corrosion spraying to form special coating, the rotor is better corrosion, erosion and abrasion-resistant. And downhole motor is suitable for long time in the corrosive fluid.
Technical Sheet of Our Downhole/Mud Motor
| Item No | Hole Size |
Input Flow Rate |
Pressure Loss |
Bit Speed |
Working Torque |
Delay Dynamic Torque |
Output Power |
Max Drilling Weight |
Joint Thread | Length | ||
| Unit | mm | In | L/S | Mpa | r/min | N.m | N.m | KW | KN | In | In | mm |
| 5LZ73×7.0 | 83-121 | 3 1/4-4 3/4 | 2-4 | 3.2 | 80-160 | 615 | 1077 | 5.8-11.5 | 25 | 2 3/8REG | 2 3/8REG | 3423 |
| 9LZ89×7.0 | 105-143 | 4 1/8-5 5/8 | 3-8 | 3.2 | 147-392 | 504 | 882 | 8.64-23 | 30 | 2 7/8REG | 2 7/8REG | 2911 |
| 5LZ95×7.0 | 114-150 | 4 1/8-5 7/8 | 5-12 | 3.2 | 140-320 | 710 | 1240 | 10.5-25 | 40 | 2 7/8REG | 2 7/8REG | 3920 |

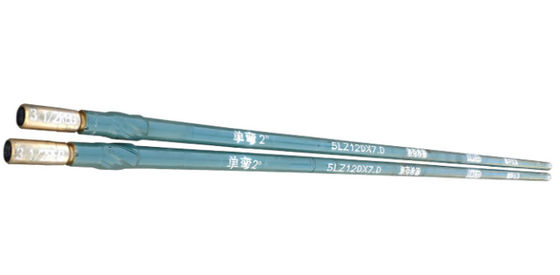

| 5LZ120×7.0 | 152-200 | 6-7 7/8 | 8-16 | 3.2 | 80-180 | 1850 | 3200 | 23-47 | 106 | 3 1/2REG | 3 1/2REG | 5039 |
| 5LZ165×7.0V | 245-244 | 8 1/8-9 5/8 | 18-30 | 3.2 | 111-167 | 4440 | 7770 | 57.6-86.4 | 160 | 4 1/2REG | 4 1/2REG | 7408 |
| 5LZ165.5×7.0V | 215-244 | 8 1/8-9 5/8 | 18-30 | 4.0 | 120-180 | 5135 | 8987 | 72-108 | 180 | 4 1/2REG | 4 1/2REG | 7748 |
| 5LZ172×7.0V | 215-244 | 8 1/8-9 5/8 | 18-30 | 4.0 | 120-180 | 5135 | 8987 | 72-108 | 180 | 4 1/2REG | 4 1/2REG | 7391 |
| 5LZ172.5×7.0V | 215-244 | 8 1/8-9 5/8 | 20-35 | 4.0 | 115-180 | 6452 | 11299 | 86.4-151.2 | 200 | 4 1/2REG | 4 1/2REG | 8031 |
| 7LZ172.5×7.0V | 215-244 | 8 1/8-9 5/8 | 20-35 | 4.0 | 75-180 | 6527 | 11420 | 59.5-108.6 | 160 | 4 1/2REG | 4 1/2REG | 8631 |
| 5LZ185×7.0 | 215-244 | 8 1/8-9 5/8 | 20-35 | 4.0 | 184 | 5436 | 8154 | 80-140 | 240 | 4 1/2REG | 6 1/2REG | 8120 |
| 5LZ185.5×7.0 | 215-244 | 8 1/8-9 5/8 | 20-35 | 4.0 | 173 | 5939 | 8908 | 80-140 | 240 | 4 1/2REG | 6 1/2REG | 8120 |
| 5LZ197×7.0 | 244-311 | 9 1/8-12 5/8 | 20-40 | 3.2 | 61-122 | 14118 | 14118 | 57.6-115.2 | 240 | 5 1/2REG | 6 5/8REG | 7998 |
| 5LZ197.5×7.0 | 244-311 | 9 5/8-12 1/4 | 20-40 | 4.0 | 85-160 | 12640 | 12640 | 72-144 | 260 | 5 1/2REG | 6 5/8REG | 8598 |
| 7LZ203×7.0 | 244-311 | 9 5/8-12 1/4 | 20-40 | 3.2 | 70-155 | 12289 | 12289 | 57.6-126.7 | 240 | 5 1/2REG | 6 5/8REG | 7798 |
| 5LZ203.5×7.0 | 244-311 | 9 5/8-12 1/4 | 20-40 | 4.0 | 70-155 | 8778 | 15362 | 72-158.4 | 260 | 5 1/2REG | 6 5/8REG | 8598 |
| 5LZ244×7.0 | 311-445 | 12 1/2-17 1/2 | 50-75 | 3.2 | 91-136 | 15124 | 26468 | 144-216 | 360 | 6 5/8REG | 7 5/8REG | 8635 |
| 7LZ244.5×7.0 | 311-445 | 12 1/2-17 1/2 | 50-75 | 4.0 | 91-136 | 18905 | 33085 | 180-270 | 450 | 6 5/8REG | 7 5/8REG | 9235 |
Xi'an TianRui Petroleum Machinery Equipment Company Limited was established in 2010, is a professional technology-oriented enterprise specialized in the production of solid control equipment and drilling tools. And it is one of the leading corporations of drilling tools and equipment in China. The products mainly include the following series, as follows:
Solid Control Equipment: shale shaker, mud cleaner, decanter centrifuge, mdu agitator, centrifugal pump.
Drilling Bit series: rock roller bit, tricone bit, palm bit, pdc drill bit, single bit, cone bit and hole opener.
Drilling Equipment Parts series: downhole motor,manual tong,elevator, slips, stabilizer；kell bush,hook blocks,swivels and high pressure hose.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
