Product Details:
Payment & Shipping Terms:
|
| Size: | 3 1/2" To 7 5/8" | Warranty: | 12 Months |
|---|---|---|---|
| Material: | Carbon Steel | Rated Capacity: | 175 Ton |
| Color: | Red, Gray, Etc | Model: | E |
| Usage: | Energy & Mining | Type Of Slip Body: | Integral |
| High Light: | Oilfield Pneumatic Drilling Spider,175 Ton Pneumatic Drilling Spider,1/2" Pipe Integral Pneumatic Spider |
||

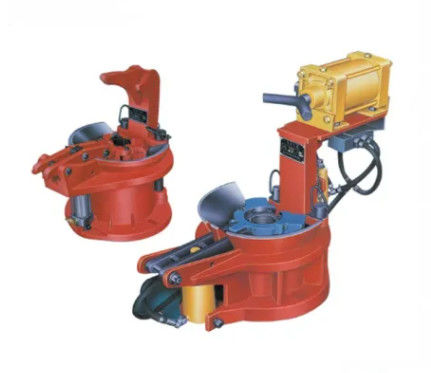

Type E 175 Ton Drill Pipe Pneumatic Spiders for Oilfield
Product Introduction
Type E pneumatic spiders are applicable for handling casing, tubing and drill pipe. This pneumatic tubing spider is designed for medium and heavy-duty operation. Our type E pneumatic spider is one of the most versatile power slips. With the rated load 175 ton, the pneumatic tubing spider can accommodate pipe from 2 3/8 to 7 5/8 inch.
We are specialized manufacturers from China, Tubing Pneumatic Spider, Type E Pneumatic Spiders suppliers/factory, wholesale high-quality products of Pneumatic Spiders, Drilling Pipe Spider R & D and manufacturing, we have the perfect after-sales service and technical support. Look forward to your cooperation!
Features of Our Oilfield Pneumatic Spider
Technical Sheet of Our Oilfield Pneumatic Spider
| Model | OD of the tubulars | specification of the slip bodies | Rated Capacity |
| C | 1.315-31/2 | 31/2 | 80tons |
| 31/2-41/2 | 41/2 | ||
| 43/4 | 43/4(Integral) | ||
| 5 | 5(Integral) | ||
| 51/2 | 51/2(Integral) | ||
| CHD | 1.315-31/2 | 31/2 | 120tons |
| 31/2-41/2 | 41/2 | ||
| 43/4 | 43/4(Integral) | ||
| 5 | 5(Integral) | ||
| 51/2 | 51/2(Integral) | ||
| HD | 1.315-31/2 | 31/2 | 125tons |
| 31/2-41/2 | 41/2 | ||
| 43/4 | 43/4(Integral) | ||
| 5 | 5(Integral) | ||
| 51/2 | 51/2(Integral) | ||
| E | 23/8-31/2 | 31/2 | 175tons |
| 4-51/2 | 51/2 | ||
| 51/2-7 | 7 | ||
| 75/8 | 75/8 (Integral) |
| Model | Max load tons (kN) | Contact pipe size mm(in) |
| QQP/585 | 60585 | 60.3-88.92 3/8-3 1/2 |
| QQP/675 | 759675 | 60.3-88.92 3/8-3 1/2 |
| QQP/900 | 100900 | 60.3-127(2 3/8-5) |
| C Type | 80 | 2 3/8-4 1/2 |
| CHD Type | 120 | 2 3/8-4 1/2 |
Xi'an TianRui Petroleum Machinery Equipment Company Limited is a fast-growing professional petroleum equipment manufacturer and supplier, integrating petroleum equipment development & application and oilfield technical service into one. It is located in China's well-known Xi'an city of Shaanxi Province.
The company possesses excellent office environment, specialized technology, business and management team. In the course of future development, the company will continue to enhance product quality and technical service management. We are committed to build the company into a international first-class "one stop" comprehensive oil drilling products supplier and service providers, providing each customer in the world with high quality & affordable products and professional & perfect service!
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
