Product Details:
Payment & Shipping Terms:
|
Size: | 2 3/8" To 5" | Advantage: | High Performance |
---|---|---|---|
Warranty: | 1 Year | Processing Type: | Casting |
Material: | Carbon Steel | Application: | Energy & Mining |
Model: | C And E | Color: | Red, Yellow Etc. |
High Light: | API Casing Pneumatic Spider,Type C Pneumatic Spider,Energy Mining Pneumatic Spider |

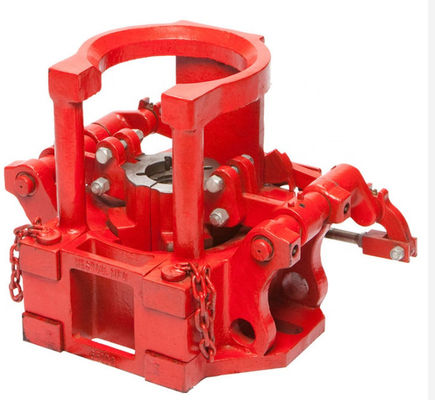

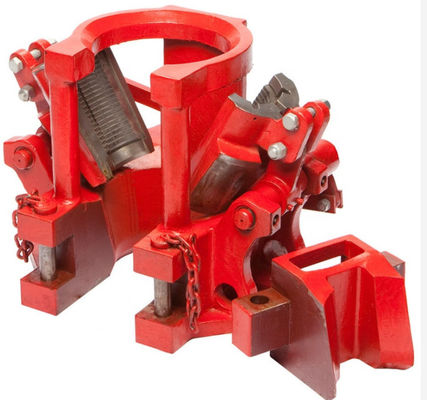

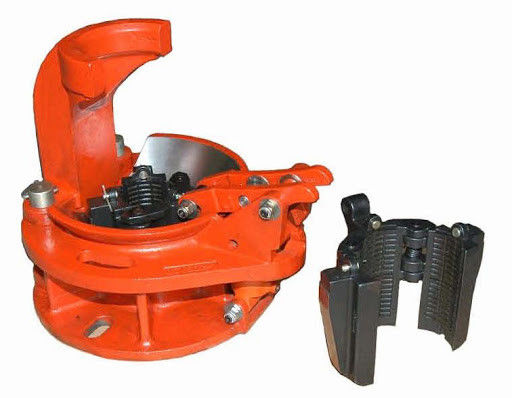

API Type C and E Tubing and Casing Pneumatic Spider
Product Overview
Type C/CHD Pneumatic spiders are utilized to handle drill pipe and tubing in oil well repairing. This type of spider can accommodate pipe from 1.315 to 5 1/2 inch, the rated capacity of type C Spider is 80 ton, and the rated capacity of type CHD Spider is 120 ton.
Our Team
Our products Including below four series with full model types:
Technical Data of Our Drilling Pneumatic Spider
Model | OD of the tubulars | specification of the slip bodies | Rated Capacity |
C | 1.315-31/2 | 31/2 | 80tons |
31/2-41/2 | 41/2 | ||
43/4 | 43/4(Integral) | ||
5 | 5(Integral) | ||
51/2 | 51/2(Integral) | ||
CHD | 1.315-31/2 | 31/2 | 120tons |
31/2-41/2 | 41/2 | ||
43/4 | 43/4(Integral) | ||
5 | 5(Integral) | ||
51/2 | 51/2(Integral) | ||
HD | 1.315-31/2 | 31/2 | 125tons |
31/2-41/2 | 41/2 | ||
43/4 | 43/4(Integral) | ||
5 | 5(Integral) | ||
51/2 | 51/2(Integral) | ||
E | 23/8-31/2 | 31/2 | 175tons |
4-51/2 | 51/2 | ||
51/2-7 | 7 | ||
75/8 | 75/8 (Integral) |
Model | Max load tons (kN) | Contact pipe size mm(in) |
QQP/585 | 60585 | 60.3-88.92 3/8-3 1/2 |
QQP/675 | 759675 | 60.3-88.92 3/8-3 1/2 |
QQP/900 | 100900 | 60.3-127(2 3/8-5) |
C Type | 80 | 2 3/8-4 1/2 |
CHD Type | 120 | 2 3/8-4 1/2 |
Xi'an TianRui Petroleum Machinery Equipment Company Limited had explored the international market and enlarged international cooperation 10 years. Due to the competitive price, good quality and excellent service, our products are sold to America, Canada, Brazil, Columbia, Venezuela, India, Iran, UAE, Russia, Kazakhastan, Italy, Hungary, Australia, Syria, Egypt, etc .and get good reputation from our oversea clients.
In recent years, the company products are not only sold well in domestic market but also exported to different countries and areas in the world. Our products are very popular in the overseas market. A number of overseas well-known enterprises have established a long-term business relationship with us.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
