Product Details:
Payment & Shipping Terms:
|
| Size: | 3 1/2" To 5-1/2" | Warranty: | 1 Year |
|---|---|---|---|
| Processing Type: | Casting | Material: | Carbon Steel |
| Rated Capacity: | 60 To 175 Ton | Color: | Red, Gray, Etc |
| Model: | CHD, C, E, QQP, HD | Usage: | Well Drilling |
| High Light: | Oilfield Handling Pneumatic Spider,Oilfield Tubing Pneumatic Spider,60 Ton Pneumatic Spider |
||

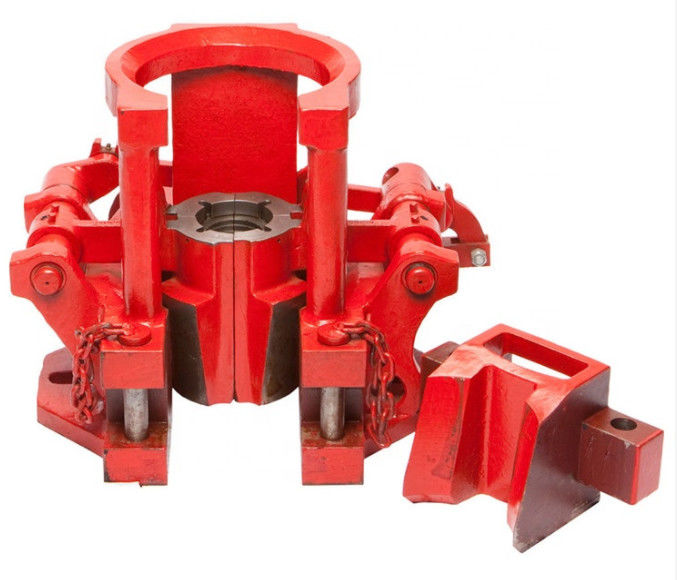

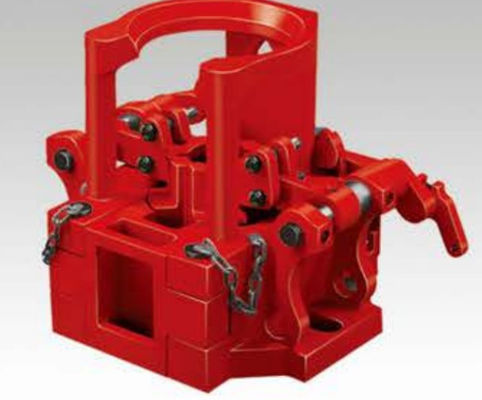

Oilfield Handling Tool Pneumatic Spider for Tubing
Product Introduction
The Pneumatic Tubing Spider is used for oil well drilling and workover servicing operations. The spider allows the cable pass through during operation. Conforms to API standard. INCLUDE: Type C, CHD, E, and F.
Designed for heavy duty use. It has a size range of 1.315" through 5 1/2" by changing out slip bodies and inserts. It is made of high alloy heat treated steel for strength and resistance to wear.
Our products Including below four series with full model types:
Solid Control: mud cleaner, shale shaker, decanter centrifuge, mud agitator;
Drilling Bit: rock roller bit,tricone bit,pdc drill bit,single bit,cone bit and hole opener;
Drilling Equipment Parts: manual tong,elevator,slips,stabilizer;
Workover Fishing Tools: releasing spear,junk basket, overshot,reversing sub,die collar, fishing tap etc.
Key Technical Sheet of Our Oilfield Pneumatic Spider
| Model | OD of the tubulars | specification of the slip bodies | Rated Capacity |
| C | 1.315-31/2 | 31/2 | 80tons |
| 31/2-41/2 | 41/2 | ||
| 43/4 | 43/4(Integral) | ||
| 5 | 5(Integral) | ||
| 51/2 | 51/2(Integral) | ||
| CHD | 1.315-31/2 | 31/2 | 120tons |
| 31/2-41/2 | 41/2 | ||
| 43/4 | 43/4(Integral) | ||
| 5 | 5(Integral) | ||
| 51/2 | 51/2(Integral) | ||
| HD | 1.315-31/2 | 31/2 | 125tons |
| 31/2-41/2 | 41/2 | ||
| 43/4 | 43/4(Integral) | ||
| 5 | 5(Integral) | ||
| 51/2 | 51/2(Integral) | ||
| E | 23/8-31/2 | 31/2 | 175tons |
| 4-51/2 | 51/2 | ||
| 51/2-7 | 7 | ||
| 75/8 | 75/8 (Integral) |
| Model | Max load tons (kN) | Contact pipe size mm(in) |
| QQP/585 | 60585 | 60.3-88.92 3/8-3 1/2 |
| QQP/675 | 759675 | 60.3-88.92 3/8-3 1/2 |
| QQP/900 | 100900 | 60.3-127(2 3/8-5) |
| C Type | 80 | 2 3/8-4 1/2 |
| CHD Type | 120 | 2 3/8-4 1/2 |
Xi'An TianRui Petroleum Machinery Equipment Company is a professional solid control manufacturer and supplier of various oilfield equipment, which has API 6A,ISO9001,14001,OHSAS 18001 and so on. Main products include solid control equipment, oil drilling and service equipment, oil production equipment, OCTG ,wellhead gate, Christmas tree, kill and chock manifold & downhole tools and spare parts with API certification. Our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). Sino Petro company has become VIP (assigned) supplier and built strategic partnership with some coutries' national petroleum companies.
Our staff are professional and experienced. By the hard efforts and united cooperation, we have established a wide sale network. Striving for excellent quality, better price and perfect service. Welcome new and old customers to order.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
