Product Details:
Payment & Shipping Terms:
|
| Size: | 3.1/2" To 4.1/2" | Material: | Carbon Steel |
|---|---|---|---|
| Machine Type: | Drilling Handling Tools | Type: | Pneumatic |
| Warranty: | 1 Year | Rated Capacity: | 80 To 1750Ton |
| Processing Type: | Casting | Package: | Wooden Case |
| High Light: | 175 Ton Pneumatic Spider,Downhole Drilling Spider,120t Drilling Spider |
||

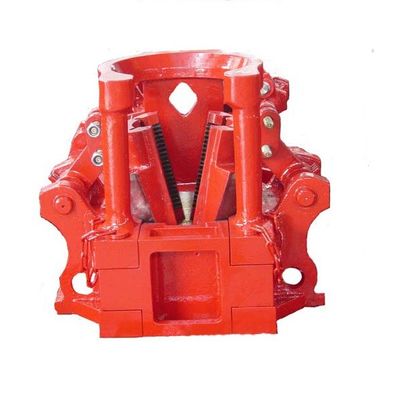

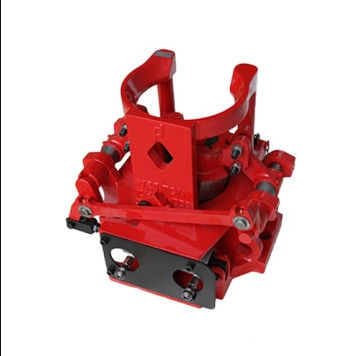

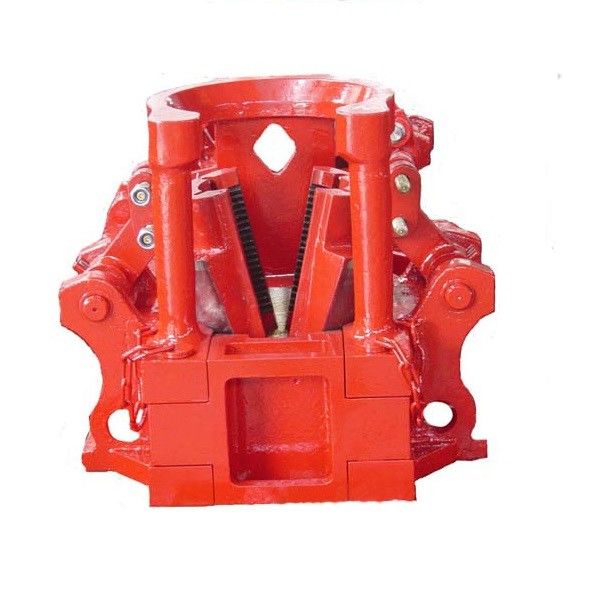

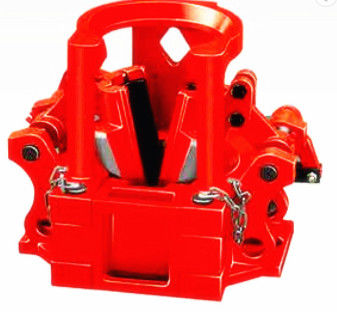

Capacity 175 Ton Pneumatic Spiders Drilling Pipe Spider
Product Overview
The Pneumatic Tubing Spider is used for oil well drilling and workover servicing operations. The spider allows the cable pass through during operation. Conforms to API standard. INCLUDE: Type C, CHD, E, HD, CHD and QQP.
Xi'An TianRui Petroleum Machinery Equipment Company Limited has specialized technicians, senior engineers and professional marketing team. Our company is committed to develop, manufacture and supply a variety of oilfield equipments. Main products include : Petroleum equipments & tools such as drilling equipments, oil production equipments, oil pipes, wellhead equipments, downhole tools, well control equipments, cementing tools ,and petrochemicals etc.
Packaging & Shipping
Packaging Details: International Sea Transportation Packing ,Standard export packaging.
Delivery Time: Based on order quantity, normally it takes 15 days for production, Only 3 or 10 days if we have stock in workshop.
Technical Sheet of Our Oilfield Pneumatic Spider
| Model | OD of the tubulars | specification of the slip bodies | Rated Capacity |
| C | 1.315-31/2 | 31/2 | 80tons |
| 31/2-41/2 | 41/2 | ||
| 43/4 | 43/4(Integral) | ||
| 5 | 5(Integral) | ||
| 51/2 | 51/2(Integral) | ||
| CHD | 1.315-31/2 | 31/2 | 120tons |
| 31/2-41/2 | 41/2 | ||
| 43/4 | 43/4(Integral) | ||
| 5 | 5(Integral) | ||
| 51/2 | 51/2(Integral) | ||
| HD | 1.315-31/2 | 31/2 | 125tons |
| 31/2-41/2 | 41/2 | ||
| 43/4 | 43/4(Integral) | ||
| 5 | 5(Integral) | ||
| 51/2 | 51/2(Integral) | ||
| E | 23/8-31/2 | 31/2 | 175tons |
| 4-51/2 | 51/2 | ||
| 51/2-7 | 7 | ||
| 75/8 | 75/8 (Integral) |
| Model | Max load tons (kN) | Contact pipe size mm(in) |
| QQP/585 | 60585 | 60.3-88.92 3/8-3 1/2 |
| QQP/675 | 759675 | 60.3-88.92 3/8-3 1/2 |
| QQP/900 | 100900 | 60.3-127(2 3/8-5) |
| C Type | 80 | 2 3/8-4 1/2 |
| CHD Type | 120 | 2 3/8-4 1/2 |
