Product Details:
Payment & Shipping Terms:
|
| Size: | 3 1/2" To 5-1/2" | Machine Type: | Drilling Handling Tools |
|---|---|---|---|
| Warranty: | 1 Year | Processing Type: | Casting |
| Material: | Carbon Steel | Rated Capacity: | 175 Ton |
| Color: | Red, Gray, Etc | Model: | CHD |
| High Light: | Oil Drilling Rig Pneumatic Spider,3 1/2" Pneumatic Spider,120kN Pneumatic Spider |
||
Oil Drilling Rig Equipment Pneumatic Spider Size 3 1/2"
Product Introduction
Pneumatic Spiders are utilized to grip drill pipes, tubing and casing in oil well drilling and repairing. They are designed and manufactured according to API Specification for drilling and well servicing equipment.

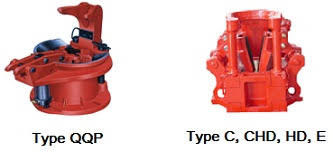

C, CHD E Type Pneumatic Spider
C, CHD, E Type Pneumatic spider is applicable for tubing, drill pipe, casing etc tubular during drilling or work over operation. API Spec.7K is performance standard for those pneumatic spiders.
QQP Type Pneumatic Spider
QQP type pneumatic spider is specially applicable for work over operation. Two spider models are available for different load requirements.
Our Service
1. For all your inquiries about our products, we will reply you in detail within 24 hours.
2. We have engineers who have more than 10 years’ experience to help you solve all the problems of technical.
3. We have a good translation, enthusiastic sales and service who can speak fluently in English and Russsain.
4. We guarantee and uphold the highest standards in customer service, client satisfaction, and quality product delivery in the oilfield industry.
Technical Data of Our Oilfield Pneumatic Spider
| Model | OD of the tubulars | specification of the slip bodies | Rated Capacity |
| C | 1.315-31/2 | 31/2 | 80tons |
| 31/2-41/2 | 41/2 | ||
| 43/4 | 43/4(Integral) | ||
| 5 | 5(Integral) | ||
| 51/2 | 51/2(Integral) | ||
| CHD | 1.315-31/2 | 31/2 | 120tons |
| 31/2-41/2 | 41/2 | ||
| 43/4 | 43/4(Integral) | ||
| 5 | 5(Integral) | ||
| 51/2 | 51/2(Integral) | ||
| HD | 1.315-31/2 | 31/2 | 125tons |
| 31/2-41/2 | 41/2 | ||
| 43/4 | 43/4(Integral) | ||
| 5 | 5(Integral) | ||
| 51/2 | 51/2(Integral) | ||
| E | 23/8-31/2 | 31/2 | 175tons |
| 4-51/2 | 51/2 | ||
| 51/2-7 | 7 | ||
| 75/8 | 75/8 (Integral) |
| Model | Max load tons (kN) | Contact pipe size mm(in) |
| QQP/585 | 60585 | 60.3-88.92 3/8-3 1/2 |
| QQP/675 | 759675 | 60.3-88.92 3/8-3 1/2 |
| QQP/900 | 100900 | 60.3-127(2 3/8-5) |
| C Type | 80 | 2 3/8-4 1/2 |
| CHD Type | 120 | 2 3/8-4 1/2 |
