Product Details:
Payment & Shipping Terms:
|
| Size: | 3 1/2" To 5-1/2" | Material: | Carbon Steel |
|---|---|---|---|
| Machine Type: | Drilling Handling Tools | Type: | Pneumatic |
| Warranty: | 1 Year | Processing Type: | Casting |
| Rated Capacity: | 80 Ton | Slip Body Type: | Integral |
| High Light: | Type C Pneumatic Spider,Oilfield Drilling Pneumatic Spider,80T Carbon Steel Pneumatic Spider |
||

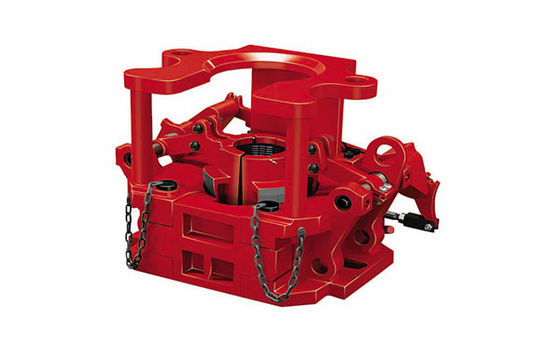

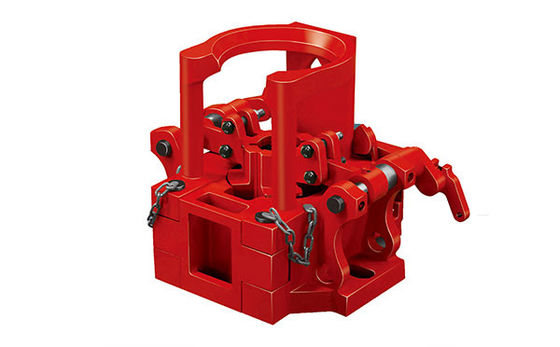

API 7K Pneumatic Spiders Model C for Oilwell Drilling
Product Overview
The Pneumatic Tubing Spider is used for oil well drilling and workover servicing operations. The spider allows the cable pass through during operation. Conforms to API standard. INCLUDE: Type C, CHD, E, HD, CHD and QQP.
We have many years of history in the petroleum equipment industry. Our main products include drilling equipment, oil production equipment, oil well service tools. Currently, our products is already exported to North America, South America, Middle East, Middle Aisa, Africa and other countries and regions.
Packaging & Shipping
Packaging Details: International Sea Transportation Packing ,Standard export packaging.
Delivery Time: Based on order quantity, normally it takes 15 days for production, Only 3 or 10 days if we have stock in workshop.
Company Service
Technical Specifications of Our Oilfield Pneumatic Spider
| Model | OD of the tubulars | specification of the slip bodies | Rated Capacity |
| C | 1.315-31/2 | 31/2 | 80tons |
| 31/2-41/2 | 41/2 | ||
| 43/4 | 43/4(Integral) | ||
| 5 | 5(Integral) | ||
| 51/2 | 51/2(Integral) | ||
| CHD | 1.315-31/2 | 31/2 | 120tons |
| 31/2-41/2 | 41/2 | ||
| 43/4 | 43/4(Integral) | ||
| 5 | 5(Integral) | ||
| 51/2 | 51/2(Integral) | ||
| HD | 1.315-31/2 | 31/2 | 125tons |
| 31/2-41/2 | 41/2 | ||
| 43/4 | 43/4(Integral) | ||
| 5 | 5(Integral) | ||
| 51/2 | 51/2(Integral) | ||
| E | 23/8-31/2 | 31/2 | 175tons |
| 4-51/2 | 51/2 | ||
| 51/2-7 | 7 | ||
| 75/8 | 75/8 (Integral) |
| Model | Max load tons (kN) | Contact pipe size mm(in) |
| QQP/585 | 60585 | 60.3-88.92 3/8-3 1/2 |
| QQP/675 | 759675 | 60.3-88.92 3/8-3 1/2 |
| QQP/900 | 100900 | 60.3-127(2 3/8-5) |
| C Type | 80 | 2 3/8-4 1/2 |
| CHD Type | 120 | 2 3/8-4 1/2 |
Xi'An TianRui Petroleum Machinery Equipment Company Limited engages in solid control equipment and drilling waste management, oil drilling engineering and technical services; technology development and application of automatic control equipment; overhaul and maintenance of oil and gas well testing; sales of oil drilling equipment and accessories, drilling tools, drill pipe and tubing, instrumentation and accessories, electromechanical equipment. We have been committed to being the world's leading suppliers and technical service providers in petroleum equipment industry.
In recent years, the company products are not only sold well in domestic market but also exported to different countries and areas in the world. Our products are very popular in the overseas market. A number of overseas well-known enterprises have established a long-term business relationship with us.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
