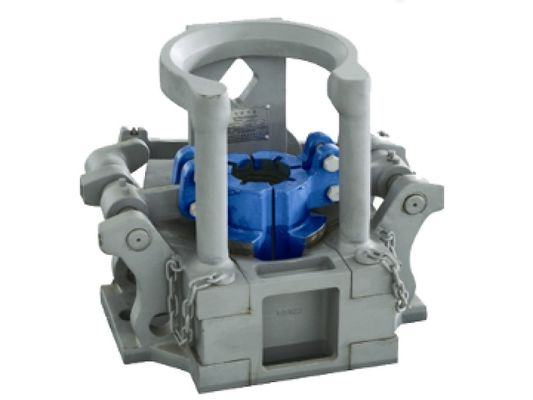

API 7K Model C CHD E Tubing Pneumatic Spider with Slip
Product Overview
Type E Pneumatic spiders are utilized to handle drill pipe and tubing in oil well repairing. This type of spider can accommodate pipe from 2 3/8 to 7 5/8 inch, the rated capacity is 175 ton.
Designed for heavy duty use. It has a size range of 1.315" through 5 1/2" by changing out slip bodies and inserts. It is made of high alloy heat treated steel for strength and resistance to wear.
Our Service
Technical Information of Our Pneumatic Spider
| Model | OD of the tubulars | specification of the slip bodies | Rated Capacity |
| C | 1.315-31/2 | 31/2 | 80tons |
| 31/2-41/2 | 41/2 | ||
| 43/4 | 43/4(Integral) | ||
| 5 | 5(Integral) | ||
| 51/2 | 51/2(Integral) | ||
| CHD | 1.315-31/2 | 31/2 | 120tons |
| 31/2-41/2 | 41/2 | ||
| 43/4 | 43/4(Integral) | ||
| 5 | 5(Integral) | ||
| 51/2 | 51/2(Integral) | ||
| HD | 1.315-31/2 | 31/2 | 125tons |
| 31/2-41/2 | 41/2 | ||
| 43/4 | 43/4(Integral) | ||
| 5 | 5(Integral) | ||
| 51/2 | 51/2(Integral) | ||
| E | 23/8-31/2 | 31/2 | 175tons |
| 4-51/2 | 51/2 | ||
| 51/2-7 | 7 | ||
| 75/8 | 75/8 (Integral) |
| Model | Max load tons (kN) | Contact pipe size mm(in) |
| QQP/585 | 60585 | 60.3-88.92 3/8-3 1/2 |
| QQP/675 | 759675 | 60.3-88.92 3/8-3 1/2 |
| QQP/900 | 100900 | 60.3-127(2 3/8-5) |
| C Type | 80 | 2 3/8-4 1/2 |
| CHD Type | 120 | 2 3/8-4 1/2 |
