Energy Mining Carbon Steel 100mm Air Grip Union 150PSI

Heavy Duty Carbon Steel Air Grip Union Seal-O-Grip

Product Overview

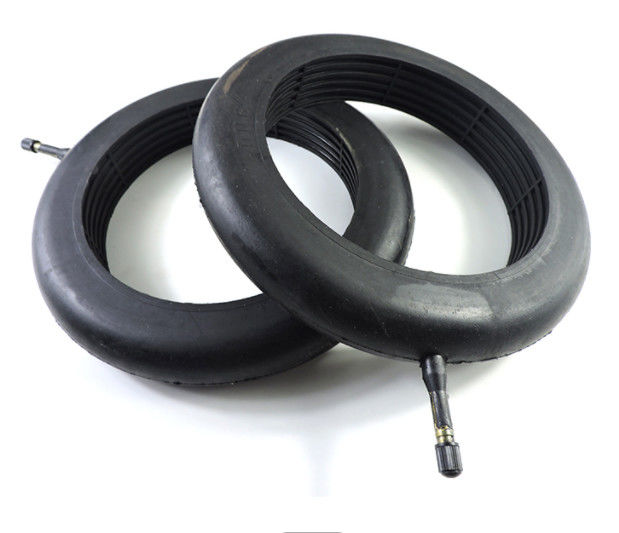

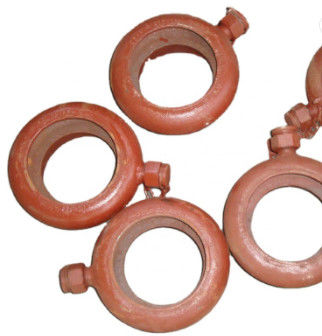

Seal-O-Grip Unions are air-inflatable connectors for low-pressure fluid or mud suction and return lines. The Seal-O-Grip carbon steel body welds in place on mud tanks or manifold pipe. A leak-tight seal is achieved with rig supplied compressed air, even if the connecting pipe is not perfectly aligned. The oil and abrasion resistant NBR pneumatic tube can be inflated up to 200 psi against the outside diameter of the connecting pipe, speeding field set-up and eliminating the need for low pressure flanged connections.

Due to superior performance of air grip union, large dislocation does not affect its connection and sealing to the pipeline. Thus, it meets the special requirements of quick assembly and disassembly on site. It is of great significance for reducing the worker's physicallabor and shortening the well construction period.

We are the leading supplier of complete union products, such as Fig 100 hammer union, Fig 200 hammer union, Fig 206 hammer union, Fig 207hammer union, Fig 400 hammer union, Fig 602 hammer union, Fig 1002 hammer union, Fig 1003 hammer union, Fig 1502 hammer union . They are used pipe line and high pressure equipment connection, they have different cold working pressure and structure but our union are easy installation and uninstall .

Product Specialities of Our Air Grip Union

1. Shot of rig air inflates tube to seal around pipe.
2. Fast, easy make-up without close alignment.
3. Allows pipe expansion or misalignment without breaking the seal.
4. No nuts, bolts, or wrenches required.

Technical Sheet of Our Air Grip Union

Xi'An TianRui Petroleum Machinery Equipment Company Limited is located in China Petroleum equipment manufacturing base in Xi'an city of Shaanxi Province. Major Products: blowout preventer and accessories; Choke and kill manifold; Choke and Kill Hose; Control Panel; Wellhead & Christmas Tree; Valves; Test Pump; Bop Control Unit ; Union/ Swivel Joint/ Fitting; Flange; Spool; Packing element; etc.

We are committed to focusing on the challenges and pressures of customers' attention, providing competitive solutions and continuously creating the maximum value for customers. Safety and environmental and social responsibility are at the core of all our business activities.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
