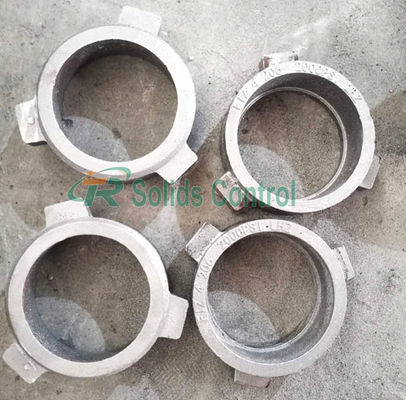

Drilling Fluid Valve Air Grip Mud Tank Unions 10"

Kemper Valve Seal-O-Grip Air Grip Mud Tank Unions 10"

Product Overview

Air grip union is widely used to connect the pipeline that is medium and low pressure, has big diameter and big dislocation, and needs to be removed frequently. It is particularly applicable to cinnect the pipeline of low pressure and big caliber between the mud tanks in drilling and cementing control system in the mud tanks are different and the dislocation varies greatly.

Due to superior performance of air grip union, large dislocation does not affect its connection and sealing to the pipeline. Thus, it meets the special requirements of quick assembly and disassembly on site. It is of great significance for reducing the worker's physicallabor and shortening the well construction period.

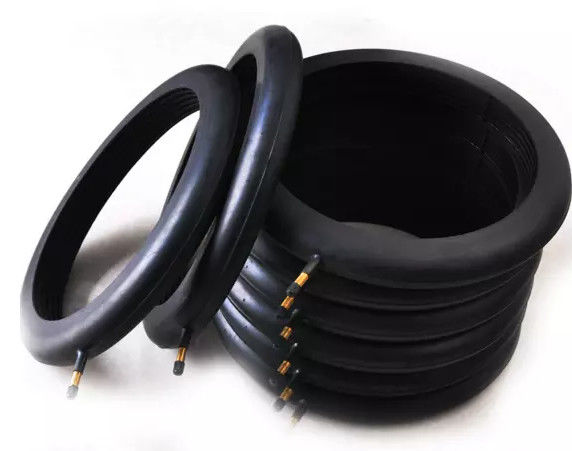

We supply Hammer Union Seals (Lip Seals) for Standard Service in NBR, FKM/Viton and HNBR. The manufacturing process is closely monitored so as to gurantee the correct hardness and composition.

Product Benefits of Our Air Grip Union

• Material standard: ASTM A216 Grade WCB.
• Medium: Oil, Water and Mud.

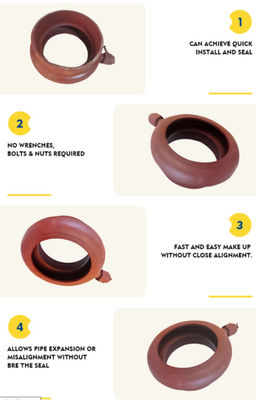

• Allows pipe expansion or misalignment w/o breaking the seal.
• Medium Temperature: 32 to 158 degree Fahrenheit.
• Environment Temperature: -22 to 122 degree Fahrenheit.

Technical Specifications of Our Air Grip Union

Package & Shipping

Generally, the union will be packed by wooden case. If you need the special packages, can be provided too.
Shipping: We cooperate with professional logistics companies to provide efficient goods transports such as sea, air and land transports to customers. Trust us, we will provide you with the best service. Winni will be here waiting the news from you. Of course, it is also available if you prefer to arrange the trasportation by yourself.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
