Product Details:
Payment & Shipping Terms:
|
| Size: | 4'', 6'', 8'', 10'', 12'', 14'' | Temperature: | ~45-50℃ |
|---|---|---|---|
| Max. Sealing Pressure: | 0.4 Mpa | Applications: | Pipe Fittings |

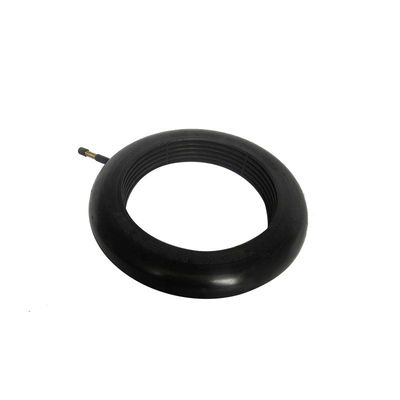

| Structure: | Steel Shell, Pneumatic Tire | Material Of Air O Tube: | NBR/NR Rubber |
| Working Medium: | Drilling Fluid | Pipe Diameter: | 116mm-380mm |
| High Light: | Pipelines Air Grip Union,380mm Pipe Air Grip Union,Drilling Fluid Air Grip Union |
||

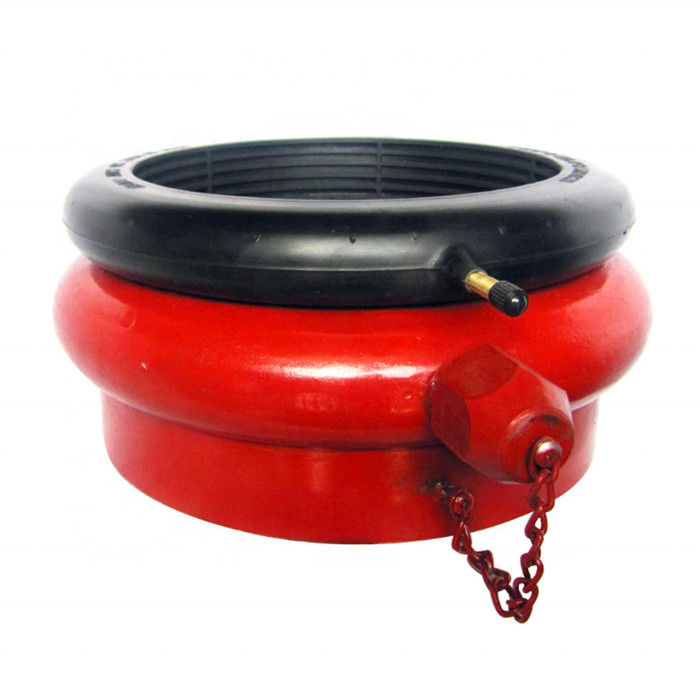

Low Pressure Carbon Steel Air Grip Union for Pipelines
Product Introduction
Air grip union is widely used to connect the pipeline that is medium and low pressure, has big diameter and big dislocation, and needs to be removed frequently. It is particularly applicable to cinnect the pipeline of low pressure and big caliber between the mud tanks in drilling and cementing control system in the mud tanks are different and the dislocation varies greatly.
Due to superior performance of air grip union, large dislocation does not affect its connection and sealing to the pipeline. Thus, it meets the special requirements of quick assembly and disassembly on site. It is of great significance for reducing the worker's physicallabor and shortening the well construction period.
We also produce special Hammer Union Seals (Lip Seals) in materials that resist explosive decompression for safety and reliability. We manufacture compatible Hammer Union Seals for Weco Hammer Union Seals and Guiberson Hammer Union Seals.
In the Air Grip unions(Air-O-unions) we have patents:
Technical Parameters of Our Air Grip Union
| Normal Pipe Size(mm) |
4" (100) |
6" (150) |
8" (200) |
10" (250) |
12" (300) |
14" (350) |
16" (400) |
| Tube I.D.(mm)A | 114 | 171 | 222 | 278 | 329 | 384 | 413 |
| Body I.D.(mm)B | 117 | 176 | 227 | 283 | 333 | 388 | 416 |
| Butt-weld I.D.(mm)C | 129 | 203 | 257 | 308 | 340 | 409 | 441 |
| Butt-weld I.D.(mm)D | 141 | 219 | 273 | 324 | 356 | 425 | 547 |
| Body O.D.(mm)E | 168 | 260 | 311 | 368 | 419 | 476 | 503 |
| Height(mm)F | 80 | 102 | 102 | 108 | 108 | 108 | 108 |
| Wt.(kgs)-Air bag | 0.3 | 0.65 | 0.8 | 1.0 | 1.2 | 1.5 | 1.7 |
| Wt.(kgs)-Assembly | 5.5 | 8.2 | 9.2 | 12 | 13.5 | 15 | 20 |
Pre-sale Services
1. Provide the free technical consultation service for clients.
2. Provide clients with product catalogs, enterprise profiles, qualification certificates and other materials of our company.
3. Invite clients to our company to abserve and study the product design, product manufacturing process.
4. Our company may appoint experienced technical personnel to the project site for on-site measurement, and provide free design and technical services reference according to the site conditions and technical parametersn provide by clients.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
