Product Details:
Payment & Shipping Terms:
|
| Size: | 4'', 6'', 8'', 10'', 12'', 14'' | Temperature: | ~45-50℃ |
|---|---|---|---|
| Max. Sealing Pressure: | 0.4 Mpa | Applications: | Pipe Fittings |
| Structure: | Steel Shell, Pneumatic Tire | Color: | Red |

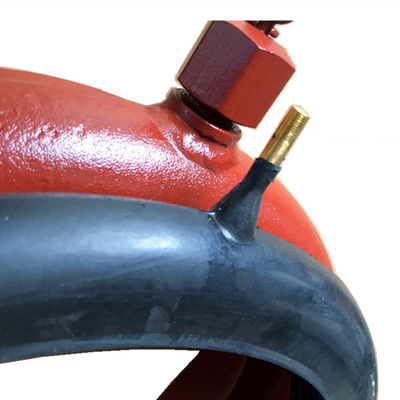

| Connection: | Welding | Material Of Air O Tube: | NBR/NR Rubber |
| High Light: | API 16C Air Grip Union,NR Rubber Air Grip Union,Pneumatic Tire Air Grip Union |
||

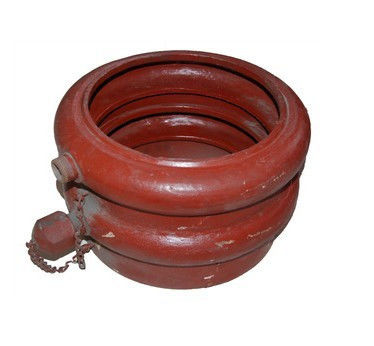

API 16C Air Grip Union for Oil Pipe or Water Pipe / Seal O Grip
Main Introduction
Air Grip union is widely applied in drilling fluid pipelines, with features of low-pressure, large pipe size, big pipe misalignment, frequent installation and uninstall. Especially, in connecting mud tanks, mud suction and return lines in solid control system.
150 psi maximum line pressure, 4, 6, 8, 10, 12, 14and 16-inch sizes.
Materials used oil resistance, corrosion resistance, aging resistance, high tear strength from a mixture of rubber processing. Applies to oil drilling operations in the mud tank cleaning system between various pipeline connections and large and medium-sized diameter pipeline connecting oil and water.
We also produce special Hammer Union Seals (Lip Seals) in materials that resist explosive decompression for safety and reliability. We manufacture compatible Hammer Union Seals for Weco Hammer Union Seals and Guiberson Hammer Union Seals.
Features of Our Air Grip Union:
Technical Specifications of Our Air Grip Union
| Normal Pipe Size(mm) |
4" (100) |
6" (150) |
8" (200) |
10" (250) |
12" (300) |
14" (350) |
16" (400) |
| Tube I.D.(mm)A | 114 | 171 | 222 | 278 | 329 | 384 | 413 |
| Body I.D.(mm)B | 117 | 176 | 227 | 283 | 333 | 388 | 416 |
| Butt-weld I.D.(mm)C | 129 | 203 | 257 | 308 | 340 | 409 | 441 |
| Butt-weld I.D.(mm)D | 141 | 219 | 273 | 324 | 356 | 425 | 547 |
| Body O.D.(mm)E | 168 | 260 | 311 | 368 | 419 | 476 | 503 |
| Height(mm)F | 80 | 102 | 102 | 108 | 108 | 108 | 108 |
| Wt.(kgs)-Air bag | 0.3 | 0.65 | 0.8 | 1.0 | 1.2 | 1.5 | 1.7 |
| Wt.(kgs)-Assembly | 5.5 | 8.2 | 9.2 | 12 | 13.5 | 15 | 20 |
Service Objective
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
