| Bowl Diameter: | 450mm | Bowl Speed: | 3200r/min |
|---|---|---|---|
| G-Force: | 2035 | Differential Speed: | 30r/min |
| Auxiliary Motor Powe: | 7.5kw | Weight: | 3200kg |
| Bowl Length: | 1250mm | Capacity: | 50m³/h |
| Separation Point: | 5-7μm | Main Drive Motor: | 37kw |
| Application: | Drilling Waste Maagement | Type: | Solid-liquid Separation Machine |
| High Light: | Two Phase Drilling Mud Centrifuge,3200r/min Drilling Mud Centrifuge,Drilling Waste Decanter Centrifuge |
||

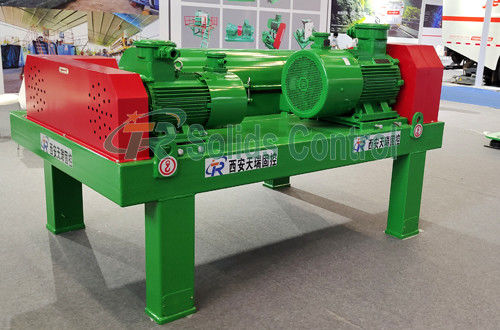

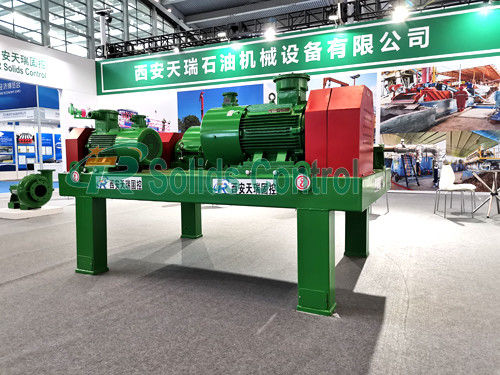

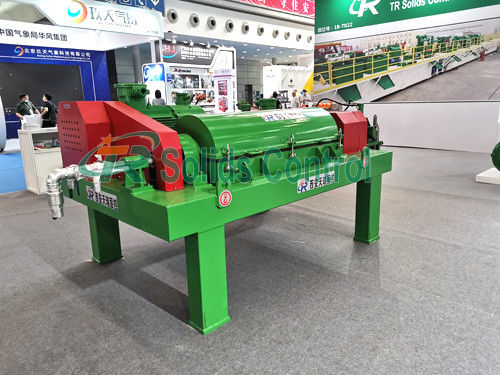

Two Phase Decanter Centrifuge for Drilling Waste Management
Product Introduction
Decanter centrifuge is the fourth solid control facility in processing drilling fluid. Main unit of Centrifuge is made up of bowl, conveyor(screw propeller), big end bearing plate, small end bearing plate, differential, main drive motor, auxiliary drive motor, hydraulic coupling, bearing seat, rotating body shield, drive shield, transmission belt, control box, and the base, etc. Bowl and conveyor(screw propeller) are core components of decanter centrifuge. Solid phase separation of drilling fluid is proceed here.
Decanter Centrifuge is driven by two motors. The main motor drives the drum and the outer casing of differential through belts while the auxiliary motor, after the differential shifting speed, drives the spiral propeller. This will make the drum and the spiral propeller rotate in the same direction with a certain differential speed.
The core of decanter centrifuges use the stainless steel. Residue outlet use strong alloy steel. Bearing use PAG (Germany brand) and SKF (Sweden brand). Electric parts use the Siemens and Schneider chint brand ( ATEX , IEC,EX standard).
Main Specialities of TRLW Series Decanter Centrifuge
Technical Sheet of TR Decanting Centrifuge
| Model | TRLW600B-1 | TRLW450N-1 | TRLW450N-2 | TRLW355N-1 | TRLW355NB-1 |
| Bowl Diameter | 600mm | 450mm | 450mm | 355mm | 355mm |
| Bowl Length | 1500mm | 1000mm | 1250mm | 1250mm | 1250mm |
| Bowl Speed | 2200r/min | 2200r/min | 3200r/min | 3200r/min | 0~3200r/min |
| Max Capacity | 90m³/h | 50m³/h | 50m³/h | 40m³/h | 40m³/h |
| G-Force | 815 | 815 | 2035 | 2035 | 0~2035 |
Separation | 5~7μm | 5~7μm | 5~7μm | 2~5μm | 2~7μm |
Gear Box | 40r/min | 40r/min | 30r/min | 30r/min | 0~3030r/min |
Gear Box | 35:1 | 57:1 | |||
Main Motor | 55kw | 30kw | 37kw | 30kw | 37kw |
Auxiliary | 15kw | 7.5kw | 7.5kw | 7.5kw | 7.5kw |
| EX Standard | ExdIIBt4/IECEX/A-TEX | ||||
| Weight | 4800kg | 2700kg | 3200kg | 2900kg | 3200kg |
| Dimension | 2900*1900 | 2600*1860 | 2600*1860 | 2600*1620 | 2600*1620 |
(Note: Rotary speed can be adjustable as per user's requirements)
TR Solids Control is a professional manufacturer of mud solids control equipment and drilling waste treatment systems integrating product development, production and sales. The products are widely used in oil and natural gas drilling, coalbed methane drilling, geothermal drilling, trenchless horizontal directional crossing, pipe jacking, shield tunneling, piling and other projects, tailings treatment, river dredging and other fields. If you want more information, please contact us!
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
