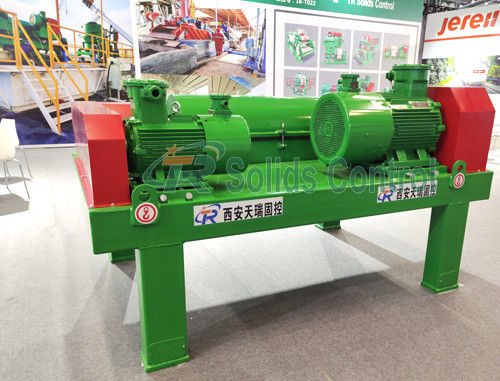

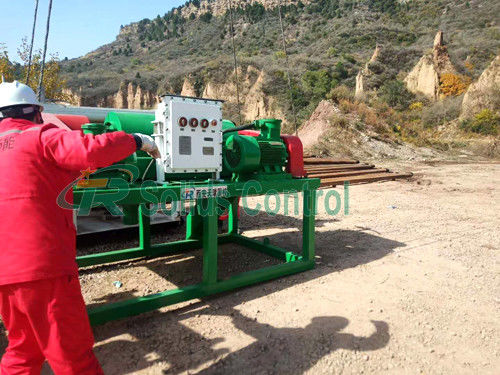

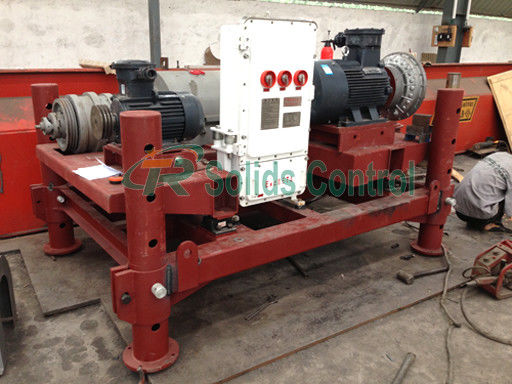

API 3200r/Min Bowl 40m3/H Drilling Mud Centrifuge

API 3200r/Min Bowl 40m3/H Drilling Mud Centrifuge
API 3200r/Min Bowl 40m3/H Drilling Mud Centrifuge
video play

Large Image :  API 3200r/Min Bowl 40m3/H Drilling Mud Centrifuge

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO9001 Certificate
Model Number: TRLW355NB-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Pallet or plyerwood carton
Delivery Time: Within 25 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 20 Sets / Month
Detailed Product Description
Bowl Diameter: 355mm Bowl Length: 1250mm
Bowl Speed: 0-3200r/min Capacity: 40m3/h
G-Force: 0-2035 Separation Point: 2-7um
Differential Speed: 0-30r/min Main Drive Motor: 37kw
Auxiliary Motor Power: 7.5kw Weight: 3200kg
Voltage: 220V/380V, Customized Certification: CE ISO
High Light:

40m3/H Drilling Mud Centrifuge

,

3200r/Min Drilling Mud Centrifuge

,

API Drilling Mud Centrifuge

40m3/h Drilling Mud Centrifuge with Variable Frequency​


Brief Introduction

Decanter centrifuge is used in separating suspension of solid phase with particle diameter d≥2μm for drilling mud and fluids handling, the mud can achieve ideal viscosity and proportion. Ruggedly built for oilfield and industrial services, it is especially effective in environmentally sensitive areas. It delivers high fluid-recovery rates and efficient solids control to significantly reduce the costs of makeup fluids and disposal. Our decanter centrifuge can meet with different requirements of mud treatment under various drilling conditions. The centrifuge must test the dynamic balance for smooth operation over long periods. seeed ranging from 0 to 3900RPM, generating centrifugal forces reach up to 3000G.


According to feed feature, our decanter centrifuge can be divide into LW two-phase separator, LWS three-phase separator. It is suitable for separating different feed under different process condition, and widely use in pharmaceutical, food, chemical, light industry, environmental protection industry etc.



Main Advantages of TRLW Series Decanter Centrifuge

  1. Drum assembly is protected with demountable support frame in transit, preventing damage to bearing.
  2. Using imported SKF and NSK bearings to improve equipment stability and bearing life.
  3. Straight and cone section of the drum are made from 2205 duplex stainless steel material, adopt centrifugal casting process.
  4. Screw carrier adopts YG6 wear-resistant alloy sheet protection. With long life, easy maintenance and replacement.
  5. Remaining components of the drum assembly are made from SS316L.
  6. Frequency control facilitates customers to adjust speed at any time, meeting different working conditions.
  7. Schneider or Siemens electrical components. Current overload & mechanical limit switch dual protections.
  8. Diversion port of screw pusher and slag-drip opening of the drum are protected by replaceable wear-resistant alloy sleeve, delaying the service life and maintenance cycle.

Technical Data Sheet of TRLW Series Decanting Centrifuge


Model TRGLW355N-1 TRGLW450N-2 TRGLW450N-3 TRGLW550N-1
Bowl Diameter 355mm (14inch) 450mm (17.7inch) 450mm (17.7inch) 550mm (22inch)
Bowl Length 1250mm(49.2inch) 1250mm(49.2inch) 1600(64inch) 1800mm(49.2inch)
Max Capacity 40m3/h 60m3/h 70m3/h 90m3/h
Max Speed 3800r/min 3200r/min 3200r/min 3000r/min
Rotary Speed 3200r/min 3000r/min 2800r/min 2600r/min
G-Force 3018 2578 2578 2711
Separation 2~5μm 2~5μm 2~5μm 2~5μm
Main Drive 30kW-4p 30kW-4p 45kW-4p 55kW-4p
Back Drive 7.5kW-4p 7.5kW-4p 15kW-4p 22kW-4p
Weight 2950kg 3200kg 4500kg 5800kg
Dimension 2850X1860X1250 2600X1860X1250 2950X1860X1250 3250X1960X1350

(Note: Rotary speed can be adjustable as per user's requirements)



API 3200r/Min Bowl 40m3/H Drilling Mud Centrifuge 0



TR Solids Control manufactures all solids control equipment. Mud tanks are also designed and manufactured to compose whole mud systems to meet the demands of drilling rigs from 250HP to 3000HP. As a solids control manufacturer owns API,CE,IEC ,ISO certificate.



Xi'An TianRui Petroleum Machinery Equipment Company Limited is a professional manufacturer and supplier of solid control equipment and drilling tools in China. In our company you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.


Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
