| Size: | 3 1/2"-10" | Material: | Carbon Steel |
|---|---|---|---|
| Type: | Hydraulic Spinning Wrench | Package: | Wooden Case |
| Working Pressure: | 72~130 Psi | Advantage: | High Performance |
| Color: | Red,yellow | Usage: | Energy & Mining |
| High Light: | API 7K Drill Spare Parts,Oilfield Pneumatic Torque Wrench,Mining Pneumatic Torque Wrench |
||

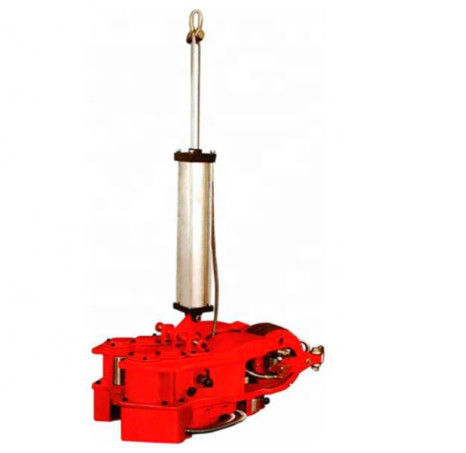

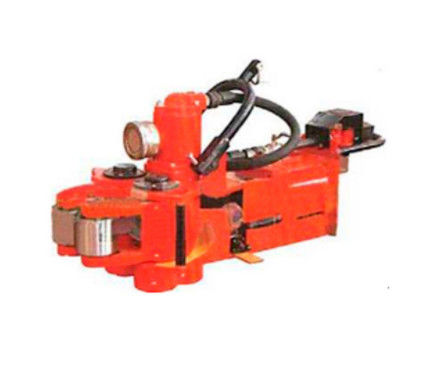

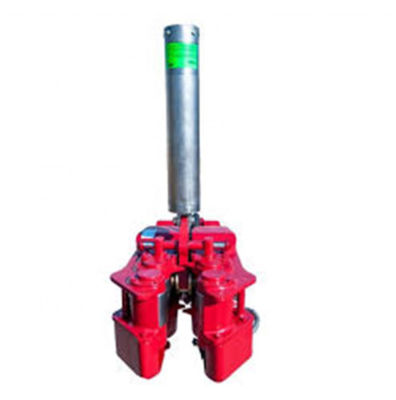

API 7K Pneumatic Spinning Wrenche / Torque Wrench for Oilfield
Product Overview
Spining Wrenches is our newly designed product. It is a convenient and modularized product. The tool is used for make-up and break-out operations of drill pipes, drill collars, casings and other type couplings from 31/2” to 81/2”. It is an upgrade product. This product suits for hot or cool environment, onshore or offshore locations. ZQF216-110 iron roughneck can be remote.
The wrench is the best replacement of rotary rope (or chain). It is applied for the mechanized spinning operation. The applicable range of pipe diameter is wide, and it can be freely adjusted whenever necessary. There are two configurations for clamping mechanism: air tyre and air cylinder. There are two driving and controlling styles: pneumatic and hydraulic. The spinning wrench is designed and manufactured according to API Spec 7K “Specification for Drilling Equipment".
Our Service
1. For all your inquiries about our products, we will reply you in detail within 24 hours.
2. We have engineers who have more than 10 years’ experience to help you solve all the problems of technical.
3. We have a good translation, enthusiastic sales and service who can speak fluently in English and Russsain.
Technical Data of Our Pneumatic Spinning Wrench
| Model | Q140-200 | Q254-250 | Q254-300Y | |
| Drive mode | Pneumatic | Hydraulic | ||
| Size range | mm | 88.9-139.7 | 88.9-254 | 88.9-254 |
| in | 31/2-51/2 | 1931-2-10 | 1931-2-10 | |
| Air Pressure | MPa | 0.5-0.9 | 0.5-0.9 | |
| psi | 72-130 | 72-130 | ||
| Hydraulic pressure rating | Mpa | 14 | ||
| psi | 2000 | |||
| Max. brake torque | Nm | 2000 | 2500 | 3000 |
| Ft.lbf | 1475 | 1840 | 2210 | |
| RPM | 0-90 | 0-120 | 0-95 | |
| Speed | ||||
| Air consumption | m3/min | 10.3 | 15 | |
| ft3/min | 360 | 529 | ||
| Flow | LPM | 120-140 | ||
| GPM | 32-37 | |||
| Size | mm | 1400*530*835 | 1250*570*465 | 1100*560*700 |
| in | 55*21*33 | 49*23*18 | 44*23*28 | |
| Weight | Kg | 378 | 440 | 400 |
| lb | 833 | 970 | 880 | |
Xi'An TianRui Petroleum Machinery Equipment Company Limited follows the principle of "quality first, science and technology innovated, people oriented", it benefits from the convenient running, high efficiency, swift reaction, experienced experts and the advanced management. In a meanwhile, it has about 50 sub-contractors to cooperate all over the country, and it always sticks to good faith, strictness, specialty, innovation, also satisfactory service.our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions).
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
