Product Details:
Payment & Shipping Terms:
|
| Size: | 3 1/2"-10" | Material: | Carbon Steel |
|---|---|---|---|
| Type: | Jaw Plate | Drive Moce: | Pneumatic, Hydraulic |
| Color: | Red Etc. | Package: | Wooden Case |
| Working Pressure: | 72~130 Psi | Key Words: | PSW Spinning Wrench |
| High Light: | Api 7k Hydraulic Spinning Wrench,Oilfield Hydraulic Spinning Wrench,130psi Hydraulic Spinning Wrench |
||

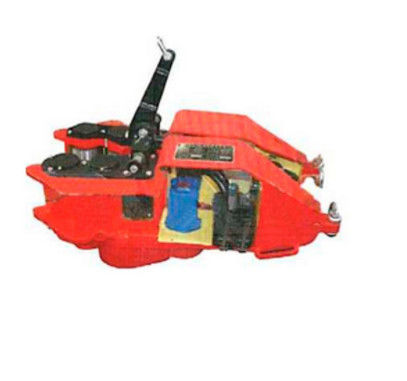

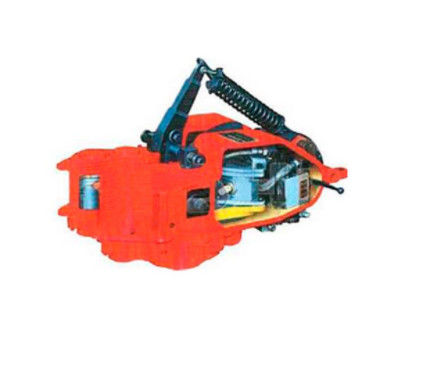

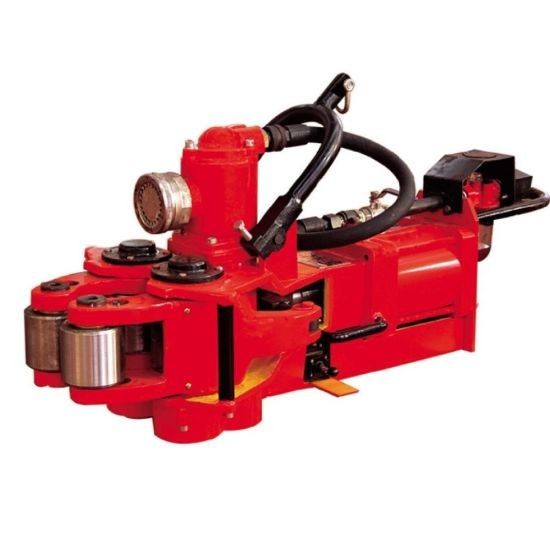

API 7K PSW Hydraulic Spinning Wrench for Oilfield
Product Overview
The wrench is the best replacement of rotary rope (or chain). It is applied for the mechanized spinning operation. The applicable range of pipe diameter is wide, and it can be freely adjusted whenever necessary. There are two configurations for clamping mechanism: air tyre and air cylinder. There are two driving and controlling styles: pneumatic and hydraulic. The spinning wrench is designed and manufactured according to API Spec 7K “Specification for Drilling Equipment".
The PSW Series Pneumatic Wrench is applicable to the mechanized spinning operation. The applicable range of pipe diameter is wide. It can be adjusted according to requirements whenever necessary. There are two configurations for clamping
Apparatus: Air Tube and Air Cylinder. Driving methods are divided into two types: Pneumatic (QPSW) and Hydraulic (Model: HPSW). They are designed and manufactured according to API SPEC 7K Specification for drilling and well servicing equipment.
Operation principle
Operate the air valve with air spring to make the wheel compress the drill pipe; control the air motor valve handle, control the air motor valve handle, and start the left and right motors. The motors drive respective drive wheel through left and right reductin units. Due to the friction torque, the drill pipe rotates, and the pipe screw thread rotates in or out. The opening of wrench can adapt pipes of different diameters through adjustment without need for exchange of wheel, which makes manufacturing, application and maintenance more convenient.
Sheet Table of Our Pneumatic Spinning Wrench
| Model | Q140-200 | Q254-250 | Q254-300Y | |
| Drive mode | Pneumatic | Hydraulic | ||
| Size range | mm | 88.9-139.7 | 88.9-254 | 88.9-254 |
| in | 31/2-51/2 | 1931-2-10 | 1931-2-10 | |
| Air Pressure | MPa | 0.5-0.9 | 0.5-0.9 | |
| psi | 72-130 | 72-130 | ||
| Hydraulic pressure rating | Mpa | 14 | ||
| psi | 2000 | |||
| Max. brake torque | Nm | 2000 | 2500 | 3000 |
| Ft.lbf | 1475 | 1840 | 2210 | |
| RPM | 0-90 | 0-120 | 0-95 | |
| Speed | ||||
| Air consumption | m3/min | 10.3 | 15 | |
| ft3/min | 360 | 529 | ||
| Flow | LPM | 120-140 | ||
| GPM | 32-37 | |||
| Size | mm | 1400*530*835 | 1250*570*465 | 1100*560*700 |
| in | 55*21*33 | 49*23*18 | 44*23*28 | |
| Weight | Kg | 378 | 440 | 400 |
| lb | 833 | 970 | 880 | |
Xi'An TianRui Petroleum Machinery Equipment Company Limited engages in solid control equipment and drilling waste management, oil drilling engineering and technical services; technology development and application of automatic control equipment; overhaul and maintenance of oil and gas well testing; sales of oil drilling equipment and accessories, drilling tools, drill pipe and tubing, instrumentation and accessories, electromechanical equipment. We have been committed to being the world's leading suppliers and technical service providers in petroleum equipment industry.
We have established a complete quality control system, all products& equipments manufactured as per international standard and API standard.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
