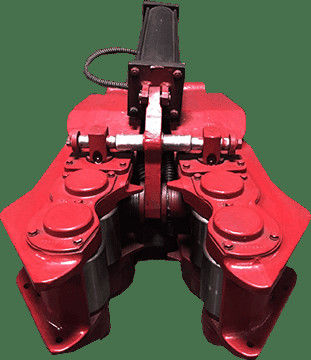

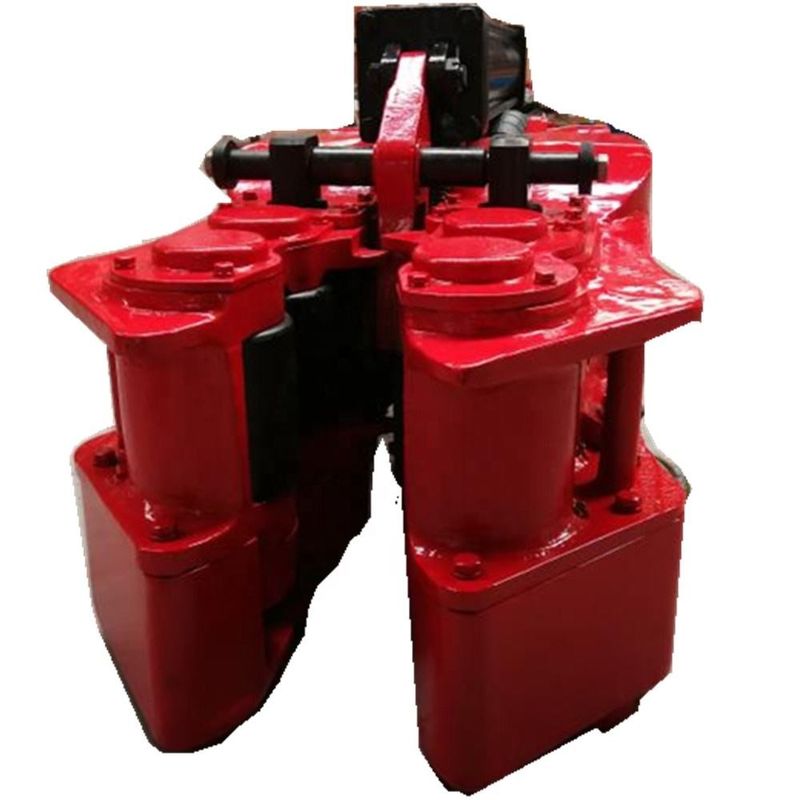

Q250 12KW Oilfield Well Drilling Spinning Wrench

Oilfield Q250 Pneumatic Spinning Wrench Rated Power 12KW

Product Overview

Q250 Pneumatic spinning wrench is a pneumatic roller type spinner used in marine and drilling mechanization industry, with a range of 3 1/2-10 (in) drill rods and drill collars. In the drilling operation, instead of the traditional spinning screw (swirling chain), the twisting operation was safe and reliable, and the labor intensity of the drilling workers was reduced. Also the tripping speed was improved. Since the air motor in the twisting pliers can rotate in the forward and reverse directions, it is more advantageous to use in coring operations and handling downhole accidents.

Usage of Q250 pneumatic spinning wrench Place the pliers vertically at a distance of 0.3-0.5 meters above the drill pipe joint. The operator will move the twisting pliers to the wellhead to allow the drill pipe to enter between the four rollers of the pliers; The air valve makes the roller press the drill pipe, then the air motor valve handle is operated to open the left and right motors. The motor drives the rotation of the respective drive rollers through the left and right deceleration mechanisms. Due to the effect of frictional torque, the drill pipe rotates with it, achieving the purpose of screwing in and unthreading the pipe thread.

Our Service

Our company provide the wrench which is the best replacement of the spinning rope (or chain).
1.It is applied for the mechanized spinning operation.
2.The applicable range of pipe diameter is wide, and it can be arbitrarily adjusted whenever necessary.
3.There are two configurations for clamping apparatus: air tyre and air cylinder. It is designed and manufactured according to API Spec 7K Specification for Drilling Equipment.

Technical Information of Our Pneumatic Spinning Wrench

Xi'An TianRui Petroleum Machinery Equipment Company Limited is a professional manufacturer and supplier of all types of petroleum equipment. The company is located in Xi'an city of China. And we have many years of history in the petroleum equipment industry. Our main products include drilling equipment, solid control equipment, oil production equipment, wellhead equipment, well control equipment, downhole tools, OCTG pipe, vavle & pipe fitting and oilfield tools.

Currently, our products is already exported to America, Middle East, Australia,Africa and 20 other countries and regions.
Our company has always focused on research, development and innovation. We will initiate the second phase of our development strategy. Our company regards "reasonable prices, efficient production time and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
