Oilfield Pneumatic Spinning Wrench Drill Spare Parts

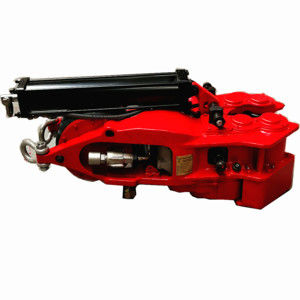

Red Color Q254-250 Oilfield Pneumatic Spinning Wrench

Product Introduction

Spinning Wrench is a pneumatically power tool capable of spinning drill pipe and collar from 3.1/2 to 10 inch, especially used in the mechanized operation of drilling machines in shore and land oilfields instead of previous “chain” and “core”. It’s operated more safety and with less labor power, and more efficiency. It’s more convenience to fetch core and deal with the problems undersell.

The wrench's spinning procedure is as follows: first position the wrench vertically to a joint about 11.8-19.7 inch, or just about the upset, the wrench is now swung onto pipe and it’s four drive rollers on the head clamp the pipe. Turn on air valve of air spring, to make rollers upon drill pipe, then push/pull the handle of air motors valve. Left and right motors work, and drive rollers rotate through its reducer mechanism. Drill pipe rotates for its friction. So drill pipe joint will be spinned in or out.

Product Details

1.Model: SSW40
2. applicable drill pipes and drill collars size: 3 1/2~9 1/2 in
3.It is mainly composed of two symmetrical components, each of which drives the gear transmission through air motor and drives the wheel rotation.
4. The spinning wrench is a kind of wheel-type spinning tool,
5. the spinning wrench boasts the advantages of large speed, no slippery and no damage to drill pipe,
6.can be used in oil and mud environment,.with the advange of safety and reliability.
7. brake torque : 1100ft-lbs(1490 N.m) and the in and out spinning speeds are large
8. During the tripping operation, SSW40 wrench substitutes the spinning rope (spinning chain), so as to make the spinning operation safe and reliable, reduce the labor intensity of drillers, and promote the tripping speed
9. The air motor in the spinner can rotate clockwise and anticlockwise, which makes coring and treatment of drilling troubles more convenient.

Technical Sheet of Our Pneumatic Spinning Wrench

Our Service

1. For all your inquiries about our products, we will reply you in detail within 24 hours.
2. We have engineers who have more than 10 years’ experience to help you solve all the problems of technical.
3. We have a good translation, enthusiastic sales and service who can speak fluently in English and Russsain.

Xi'An TianRui Petroleum Machinery Equipment Company Limited is a professional manufacturer and supplier of all types of petroleum equipment. The company is located in Xi'an city of China. And we have many years of history in the petroleum equipment industry. Our main products include drilling equipment, solid control equipment, oil production equipment, wellhead equipment, well control equipment, downhole tools, OCTG pipe, vavle & pipe fitting and oilfield tools.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
