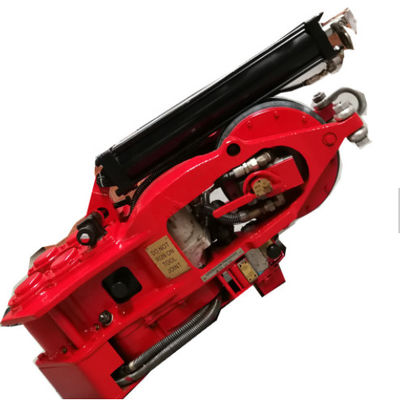

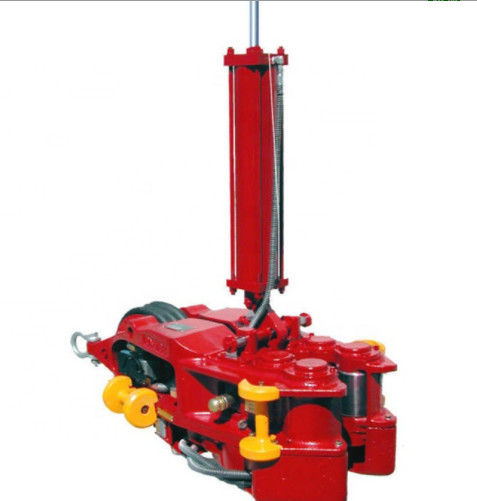

Forging Pneumatic Carbon Steel Oilfield Spinning Wrench

Forging Pneumatic Carbon Steel Oilfield Spinning Wrench
Forging Pneumatic Carbon Steel Oilfield Spinning Wrench Forging Pneumatic Carbon Steel Oilfield Spinning Wrench Forging Pneumatic Carbon Steel Oilfield Spinning Wrench

Large Image :  Forging Pneumatic Carbon Steel Oilfield Spinning Wrench

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API, ISO
Model Number: TRQ
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 Pcs Per Month
Detailed Product Description
Application: Oil And Gas Drilling Color: Red
Size: 3 1/2"-10" Processing Type: Forging
Warranty: 1 Year Material: Carbon Steel
Type: Jaw Plate Drive Moce: Pneumatic, Hydraulic
High Light:

Oilfield Spinning Wrench

,

Jaw Plate Spinning Wrench

,

90RPM Pneumatic Spinning Wrench

Q254-300Y Pneumatic Spinning Wrench for Oilfield



Product Introduction



Spinning Wrench is a pneumatically power tool capable of spinning drill pipe and collar from 3.1/2 to 10 inch, especially used in the mechanized operation of drilling machines in shore and land oilfields instead of previous “chain” and “core”. It’s operated more safety and with less labor power, and more efficiency. It’s more convenience to fetch core and deal with the problems undersell.

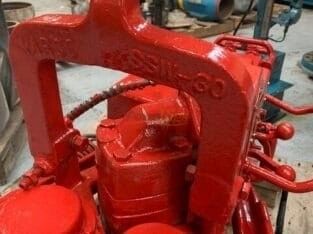

Pneumatic Safety Spinning Wrench Model SSW-40 with vertical positioning system, right and left hand rotation, self-adjusting for 3-1/2 OD to 9 1/2 OD Drill Pipe and Drill Collars.



Includes filter, lubricator and regulator assemblies, and 25' x 1-1/4" air hose with fittings.



Operation principle


Operate the air valve with air spring to make the wheel compress the drill pipe; control the air motor valve handle, control the air motor valve handle, and start the left and right motors. The motors drive respective drive wheel through left and right reductin units. Due to the friction torque, the drill pipe rotates, and the pipe screw thread rotates in or out. The opening of wrench can adapt pipes of different diameters through adjustment without need for exchange of wheel, which makes manufacturing, application and maintenance more convenient.



Technical Specifications Table of Our Spinning Wrench



Model Q140-200 Q254-250 Q254-300Y
Drive mode Pneumatic Hydraulic
Size range mm 88.9-139.7 88.9-254 88.9-254
in 31/2-51/2 1931-2-10 1931-2-10
Air Pressure MPa 0.5-0.9 0.5-0.9
psi 72-130 72-130
Hydraulic pressure rating Mpa     14
psi     2000
Max. brake torque Nm 2000 2500 3000
Ft.lbf 1475 1840 2210
  RPM 0-90 0-120 0-95
Speed
Air consumption m3/min 10.3 15
ft3/min 360 529
Flow LPM     120-140
GPM     32-37
Size mm 1400*530*835 1250*570*465 1100*560*700
in 55*21*33 49*23*18 44*23*28
Weight Kg 378 440 400
lb 833 970 880



Forging Pneumatic Carbon Steel Oilfield Spinning Wrench 0



Xi'An TianRui Petroleum Machinery Equipment Company Limited follows the principle of "quality first, science and technology innovated, people oriented", it benefits from the convenient running, high efficiency, swift reaction, experienced experts and the advanced management. In a meanwhile, it has about 50 sub-contractors to cooperate all over the country, and it always sticks to good faith, strictness, specialty, innovation, also satisfactory service.our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions).



Besides, we also provide oilfield technology service to our domestic and foreign customers. We passed the API and international standards. We have obtained ISO, 3C,etc certificated qualification and extreme standard let us keep very competitive in the current market. As a leading manufacturer of petroleum machinery, we are pleased to inform you that we have working with many big companies throughout the world.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
