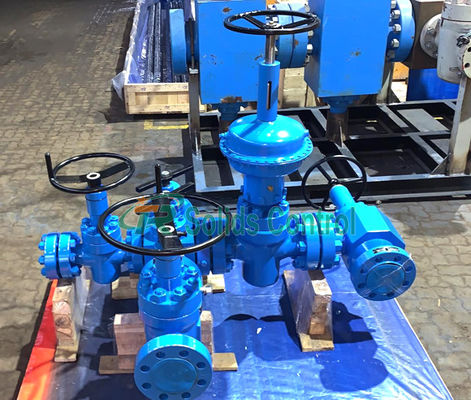

Dual Tubing Wellhead Xmas Tree For Well Flow Control

Dual Tubing Wellhead Xmas Tree For Well Flow Control
Dual Tubing Wellhead Xmas Tree For Well Flow Control Dual Tubing Wellhead Xmas Tree For Well Flow Control Dual Tubing Wellhead Xmas Tree For Well Flow Control

Large Image :  Dual Tubing Wellhead Xmas Tree For Well Flow Control

Product Details:
Place of Origin: Xi'an, China
Brand Name: TR Solids Control
Certification: API 6A, ISO9001
Model Number: TRCYS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 25 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 sets per month
Detailed Product Description
PR: PR1 ~ 2 Product Level: PSL1~PSL3
Working Pressure: 2000~20000PSI Size: 2.1/16" To 5.1/8"
Material Class: AA, BB, CC, DD, EE, FF Execution Standard: API 6A, NACE MR0175
HS Code: 8431431000 Package: Wooden Case
High Light:

Dual Tubing Wellhead Xmas Tree

,

Well Flow Control Drill Spare Parts

,

Gas Drilling Wellhead Xmas Tree

Dual Tubing Wellhead And X-Mas Tree for Well Flow Control



Product Overview


Wellhead and Christmas tree equipment is an important equipment of oil and gas drilling, the casing head, tubing head, oil (gas) tree of three parts, used to connect the casing string and tubing string, and the sealing between the layers of casing and tubing annulus, and can control the production wellhead pressure and adjust the oil (gas) wellhead flow, also can be used in acid fracturing, injection, testing and other special operations.


Working Pressure: 2000PSi, 3000PSi, 5000PSi, 10000PSi, 15000PSi and so on.


Main Functions



Connect casing in the well, seal casing annular space and bear part of weight of casing; Hang tubing and downhole tools, support the weight of tubing and seal the annular space between tubing and casing; Control and adjust oil production; X-mas tree for oil/gas is a device used to produce oil/gas and tested after oil /gas completion. It is the main equipment used to control and adjust oil production on the top of gas and oil well.



Main Specialities of Wellhead Christmas Tree/X-mas Tree



  • It can be designed into general or integral structure as required.
  • Can be equipped with various (pneumatic) hydraulic safety valve.
  • It can be completed with pneumatic/hydraulic safety valve.
  • Apply to all kinds of casing, tubing programs and connection forms.
  • Control wellhead pressure and regulate the flow rate, also induce oil into outlet pipeline, shut off oil well when necessary.
  • Safe and reliable running, simple and convenient operating and maintenance.
  • It can be classified into two kinds of single-wing and dual-wing.
  • As required, matched choke may be positive choke or adjustable choke alternatively.



Specifications for Wellhead X-mas Tree Assembly



Parameter Type
KQ65/21 KQ65/35 KQ80-65/35 KQ65/70 KQ78-65/70 KQ65/105 KQ78-65/105
Rated Pressure 3000psi 5000psi 5000psi 10000psi 10000psi 15000psi 15000psi
Nominal Size Main 2-9/16″ 2-9/16″ 3-1/8″ 2-9/16″ 3-1/16″ 2-9/16″ 3-1/16″
Side 2-9/16″ 2-9/16″ 2-9/16″ 2-9/16″ 2-9/16″ 2-9/16″ 2-9/16″
Working Temperature -46°C ~ 121°C ( L . U )
Available Medium Crude Gas
PSL PSL1 ~ 4
Material Class AA ~ HH
PR PR1 ~ 2
Connection Type Clamp,Flanged Flanged

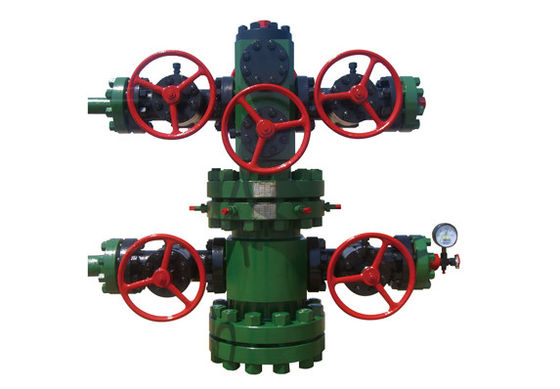

Dual Tubing Wellhead Xmas Tree For Well Flow Control 0



We can supply the wellheads and Christmas trees suitable for land and offshore applications to explore, develop and produce oil. We design, manufacture, test and control these products in accordance with API 6A, latest edition and also hold a Certificate of Authority to use the API monogram for API 6A products. The main pressure-containing parts of these products are made from forgings or specially smelted low alloy steel (stainless steel) casings for high bearing strength. Wellheads manufactured by our company are available in pressure rating up tof105MPa, load rating up to 500 tons, material classes from AA through FF, temperature classes from L through V, product specification levels from 1 through 4 and PR1 & 2, and also meet NACE Standard MR0175.



Our company has always focused on research, development and innovation. TR will initiate the second phase of our development strategy. Our company regards "reasonable prices, efficient production time and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
