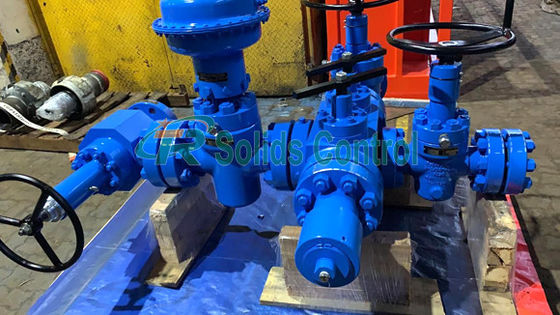

API 6A 2000PSI 2 9/16" PR2 Wellhead Christmas Tree

API 6A 2000PSI 2 9/16" PR2 Wellhead Christmas Tree
API 6A 2000PSI 2 9/16" PR2 Wellhead Christmas Tree API 6A 2000PSI 2 9/16" PR2 Wellhead Christmas Tree API 6A 2000PSI 2 9/16" PR2 Wellhead Christmas Tree

Large Image :  API 6A 2000PSI 2 9/16" PR2 Wellhead Christmas Tree

Product Details:
Place of Origin: Xi'an, China
Brand Name: TR Solids Control
Certification: API 6A, ISO9001
Model Number: TRCYS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 25 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000 sets per month
Detailed Product Description
PR: PR1 ~ 2 Product Level: PSL1~PSL3
Working Pressure: 2000~20000PSI Size: 2.1/16" To 5.1/8"
Color: Blue, Red, Yellow Material Class: AA, BB, CC, DD, EE, FF
Execution Standard: API 6A, NACE MR0175 Temperature Level: K,L,N,P,S,T,U,V
High Light:

PR2 Wellhead Christmas Tree

,

2 9/16" Wellhead Christmas Tree

,

API 6A Wellhead Christmas Tree

Product Introduction

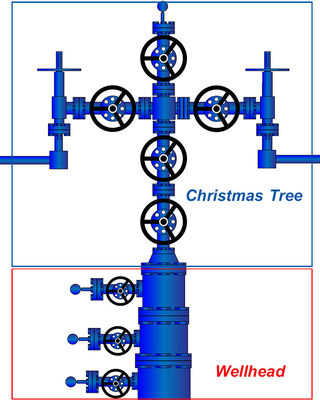

Wellhead devices and tree can be divided into oil production wellhead devices, gas recovery wellhead devices, fracturing and acidification wellhead devices, thermal recovery wellhead devices, and other wellhead devices. Wellhead device and tree are mainly assembled by gate valve, throttle valve, three - way, four - way, plug valve emergency cut - off valve and other pressure components.



The wellheads, Christmas trees and auxiliary equipments supplied by TR Solids Control are available in many different kinds of configurations, meeting requirements of all kinds of bore frames and casing programs and providing service in different working conditions. They are also available upon customer request.



Design Features of Wellhead Christmas Tree/X-mas Tree



  • Can be equipped with various (pneumatic) hydraulic safety valve.
  • It can be completed with pneumatic/hydraulic safety valve.
  • Apply to all kinds of casing, tubing programs and connection forms.
  • It can be classified into two kinds of single-wing and dual-wing.
  • Control wellhead pressure and regulate the flow rate, also induce oil into outlet pipeline, shut off oil well when necessary.
  • Safe and reliable running, simple and convenient operating and maintenance.
  • It can be designed into general or integral structure as required.
  • As required, matched choke may be positive choke or adjustable choke alternatively.



Main Specifications for Wellhead X-mas Tree Assembly



Parameter Type
KQ65/21 KQ65/35 KQ80-65/35 KQ65/70 KQ78-65/70 KQ65/105 KQ78-65/105
Rated Pressure 3000psi 5000psi 5000psi 10000psi 10000psi 15000psi 15000psi
Nominal Size Main 2-9/16″ 2-9/16″ 3-1/8″ 2-9/16″ 3-1/16″ 2-9/16″ 3-1/16″
Side 2-9/16″ 2-9/16″ 2-9/16″ 2-9/16″ 2-9/16″ 2-9/16″ 2-9/16″
Working Temperature -46°C ~ 121°C ( L . U )
Available Medium Crude Gas
PSL PSL1 ~ 4
Material Class AA ~ HH
PR PR1 ~ 2
Connection Type Clamp,Flanged Flanged



API 6A 2000PSI 2 9/16" PR2 Wellhead Christmas Tree 0



Our Service


We do everything to enable the clients to get more benefits and to seek more business opportunities in the market. We promise to create more values for you and the society.



With profession engineers we also offer the R&D service to the clients who have special requirements in the oilfield drilling operation and production operation.The wellhead equipment we manufacture and supply include casing head, tubing head, casing spool, tubing spool, Gate valve, Choke valve, Check valve, X-mas tree, VR plug, Tubing hanger, casing hanger, Running tool, Wear bushing, spacer spool, flange adapter, union flange, Hammer union, Elbow, swivel joint, block cross, Block Tee, companion flange, instrument flange, weldneck flange, FC gate, FC seat, FC stem, API Clamp, API Clamp Hub and wellhead manifold including choke manfiold, kill manifold, testing manifold etc.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
