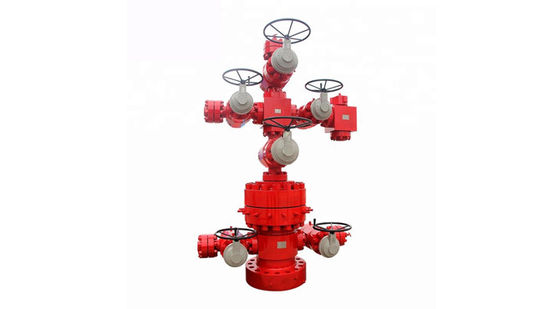

FF Class Oilfield Wellhead Xmas Tree Drill Spare Parts

FF Class Oilfield Wellhead Xmas Tree Drill Spare Parts
FF Class Oilfield Wellhead Xmas Tree Drill Spare Parts FF Class Oilfield Wellhead Xmas Tree Drill Spare Parts FF Class Oilfield Wellhead Xmas Tree Drill Spare Parts

Large Image :  FF Class Oilfield Wellhead Xmas Tree Drill Spare Parts

Product Details:
Place of Origin: Xi'an, China
Brand Name: TR Solids Control
Certification: API 6A, ISO9001
Model Number: TRCYS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 25 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000 sets per month
Detailed Product Description
Working Temperature: -46°C ~ 121°C (L . U) PR: PR1 ~ 2
Product Level: PSL1~PSL3 Working Pressure: 2000~20000PSI
Size: 2.1/16" To 5.1/8" Application: Energy & Mining
Color: Blue, Red, Yellow Material Class: AA, BB, CC, DD, EE, FF
High Light:

Xmas Tree Drill Spare Parts

,

Oilfield Wellhead Drill Spare Parts

,

FF Class Drill Spare Parts

Red Color Oilfield Wellhead and X-Mas Tree Size 3-1/16″

Product Introduction

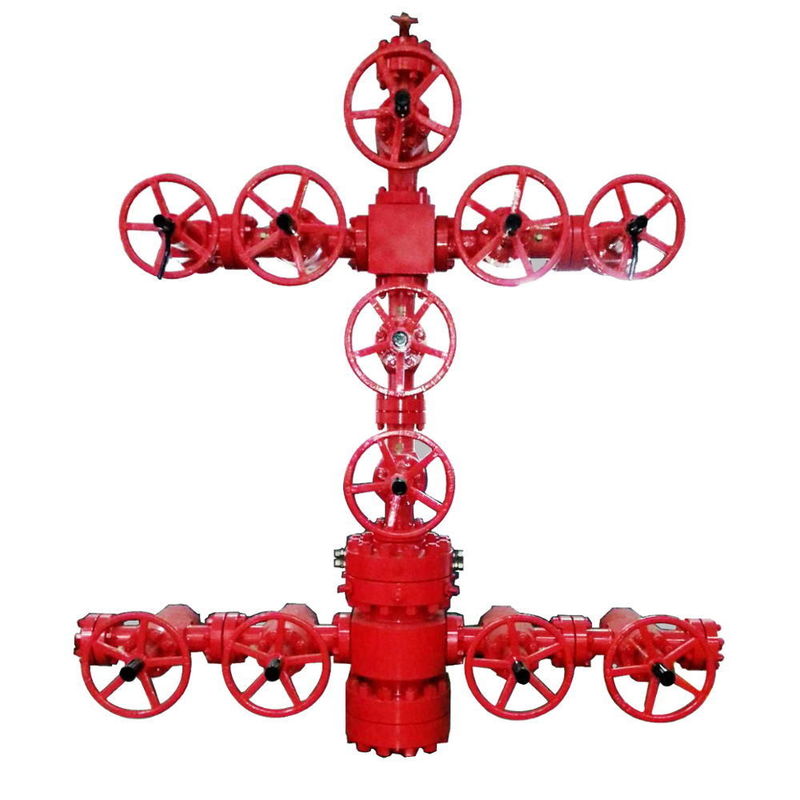

The Wellhead Christmas Tree is assembled with a series of valves, spools and adapter flanges fitted on top of the well, and used for controlling the well pressure during oil well production, drilling, fracturing operation. It is used for extracting two oil reservoir at the same time and also independently. It allow put down two tubings into the same casing. Can seal the different two oil reservoir with dual packer and single packer.



Main Functions: Connect casing in the well, seal casing annular space and bear part of weight of casing; Hang tubing and downhole tools, support the weight of tubing and seal the annular space between tubing and casing; Control and adjust oil production; X-mas tree for oil/gas is a device used to produce oil/gas and tested after oil /gas completion. It is the main equipment used to control and adjust oil production on the top of gas and oil well.



Key Advantages of Wellhead Christmas Tree/X-mas Tree



  • It can be completed with pneumatic/hydraulic safety valve.
  • It can be classified into two kinds of single-wing and dual-wing.
  • Apply to all kinds of casing, tubing programs and connection forms.
  • Can be equipped with various (pneumatic) hydraulic safety valve.
  • Control wellhead pressure and regulate the flow rate, also induce oil into outlet pipeline, shut off oil well when necessary.
  • Safe and reliable running, simple and convenient operating and maintenance.
  • It can be designed into general or integral structure as required.
  • As required, matched choke may be positive choke or adjustable choke alternatively.



Technical Data for Wellhead X-mas Tree Assembly



Parameter Type
KQ65/21 KQ65/35 KQ80-65/35 KQ65/70 KQ78-65/70 KQ65/105 KQ78-65/105
Rated Pressure 3000psi 5000psi 5000psi 10000psi 10000psi 15000psi 15000psi
Nominal Size Main 2-9/16″ 2-9/16″ 3-1/8″ 2-9/16″ 3-1/16″ 2-9/16″ 3-1/16″
Side 2-9/16″ 2-9/16″ 2-9/16″ 2-9/16″ 2-9/16″ 2-9/16″ 2-9/16″
Working Temperature -46°C ~ 121°C ( L . U )
Available Medium Crude Gas
PSL PSL1 ~ 4
Material Class AA ~ HH
PR PR1 ~ 2
Connection Type Clamp,Flanged Flanged

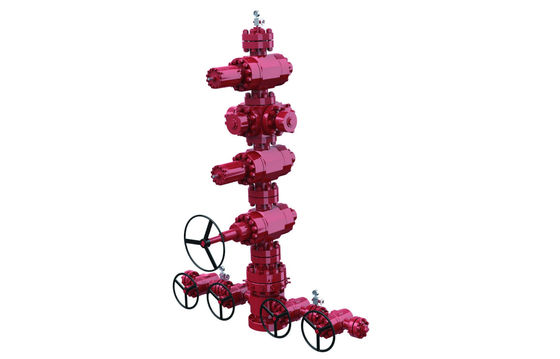

FF Class Oilfield Wellhead Xmas Tree Drill Spare Parts 0



Our company has always focused on research, development and innovation. TR will initiate the second phase of our development strategy. Our company regards "reasonable prices, efficient production time and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.



With profession engineers we also offer the R&D service to the clients who have special requirements in the oilfield drilling operation and production operation.The wellhead equipment we manufacture and supply include casing head, tubing head, casing spool, tubing spool, Gate valve, Choke valve, Check valve, X-mas tree, VR plug, Tubing hanger, casing hanger, Running tool, Wear bushing, spacer spool, flange adapter, union flange, Hammer union, Elbow, swivel joint, block cross, Block Tee, companion flange, instrument flange, weldneck flange, FC gate, FC seat, FC stem, API Clamp, API Clamp Hub and wellhead manifold including choke manfiold, kill manifold, testing manifold etc.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
