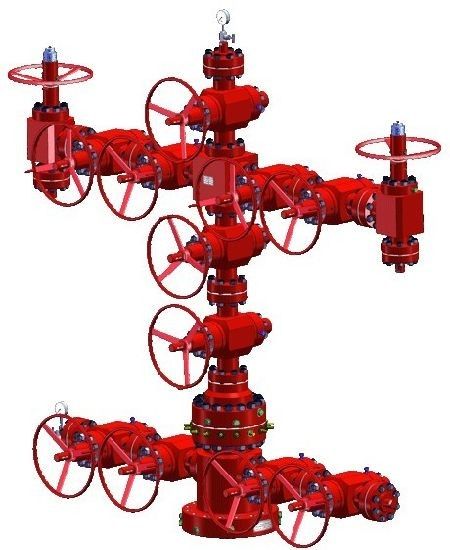

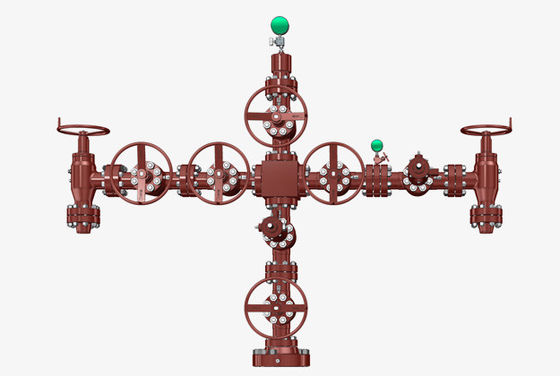

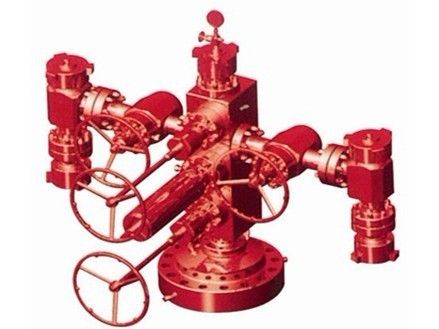

PSL1 Energy Mining 10000PSI Wellhead Christmas Tree

PSL1 Energy Mining 10000PSI Wellhead Christmas Tree
PSL1 Energy Mining 10000PSI Wellhead Christmas Tree PSL1 Energy Mining 10000PSI Wellhead Christmas Tree PSL1 Energy Mining 10000PSI Wellhead Christmas Tree

Large Image :  PSL1 Energy Mining 10000PSI Wellhead Christmas Tree

Product Details:
Place of Origin: Xi'an, China
Brand Name: TR Solids Control
Certification: API 6A, ISO9001
Model Number: TRCYS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 25 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 sets per month
Detailed Product Description
Working Temperature: -46°C ~ 121°C (L . U) PR: PR1 ~ 2
Product Level: PSL1~PSL3 Working Pressure: 2000~20000PSI
Material: Alloy Steel, Carbon Steel Size: 2.1/16" To 5.1/8"
Application: Energy & Mining Package: Wooden Case
High Light:

10000PSI Wellhead Christmas Tree

,

Mining Wellhead Christmas Tree

,

Energy Wellhead Christmas Tree

Wellhead Christmas X-Mas Tree with Pressure 10000 PSI

Product Introduction

The wellheads, Christmas trees and auxiliary equipments supplied by TR Solids Control are available in many different kinds of configurations, meeting requirements of all kinds of bore frames and casing programs and providing service in different working conditions. They are also available upon customer request.



X-mas tree is a key equipment to control the pressure in wellhead and adjust the flow rate of Pressure in oil/gas production operation.


·It can be designed into general or integral structure as required;
·It can be completed with pneumatic/hydraulic safety valve;
·It can be classified into two kinds of single-wing and dual-wing.
·As required, matched choke may be positive choke or adjustable choke alternatively



Main Benefits of Wellhead Christmas Tree/X-mas Tree



  • Apply to all kinds of casing, tubing programs and connection forms.
  • Can be equipped with various (pneumatic) hydraulic safety valve.
  • Control wellhead pressure and regulate the flow rate, also induce oil into outlet pipeline, shut off oil well when necessary.
  • Safe and reliable running, simple and convenient operating and maintenance.
  • It can be designed into general or integral structure as required;
  • It can be completed with pneumatic/hydraulic safety valve;
  • It can be classified into two kinds of single-wing and dual-wing.
  • As required, matched choke may be positive choke or adjustable choke alternatively



Technical Sheet for Wellhead X-mas Tree Assembly



Parameter Type
KQ65/21 KQ65/35 KQ80-65/35 KQ65/70 KQ78-65/70 KQ65/105 KQ78-65/105
Rated Pressure 3000psi 5000psi 5000psi 10000psi 10000psi 15000psi 15000psi
Nominal Size Main 2-9/16″ 2-9/16″ 3-1/8″ 2-9/16″ 3-1/16″ 2-9/16″ 3-1/16″
Side 2-9/16″ 2-9/16″ 2-9/16″ 2-9/16″ 2-9/16″ 2-9/16″ 2-9/16″
Working Temperature -46°C ~ 121°C ( L . U )
Available Medium Crude Gas
PSL PSL1 ~ 4
Material Class AA ~ HH
PR PR1 ~ 2
Connection Type Clamp,Flanged Flanged



PSL1 Energy Mining 10000PSI Wellhead Christmas Tree 0



Xi'an TianRui Petroleum Machinery Equipment Company Limited is one of the exporting windows of China Petroleum Machinery. Our company integrates the R&D, machinery processing and technical service of petroleum machinery products. Soright Tech aims at providing clients with satisfying products and service to benefit both clients and employees. Being master in petroleum machinery, Supplying high quality products to clients, Being honesty to everyone.



With profession engineers we also offer the R&D service to the clients who have special requirements in the oilfield drilling operation and production operation.The wellhead equipment we manufacture and supply include casing head, tubing head, casing spool, tubing spool, Gate valve, Choke valve, Check valve, X-mas tree, VR plug, Tubing hanger, casing hanger, Running tool, Wear bushing, spacer spool, flange adapter, union flange, Hammer union, Elbow, swivel joint, block cross, Block Tee, companion flange, instrument flange, weldneck flange, FC gate, FC seat, FC stem, API Clamp, API Clamp Hub and wellhead manifold including choke manfiold, kill manifold, testing manifold etc.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
