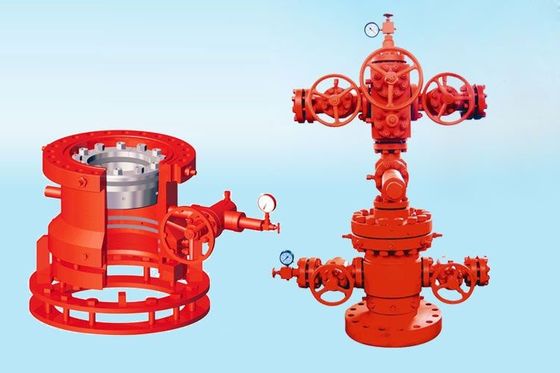

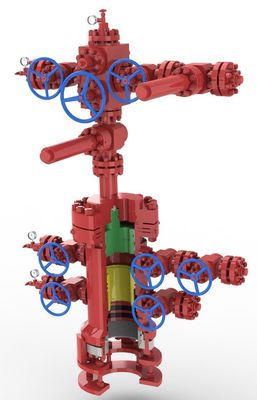

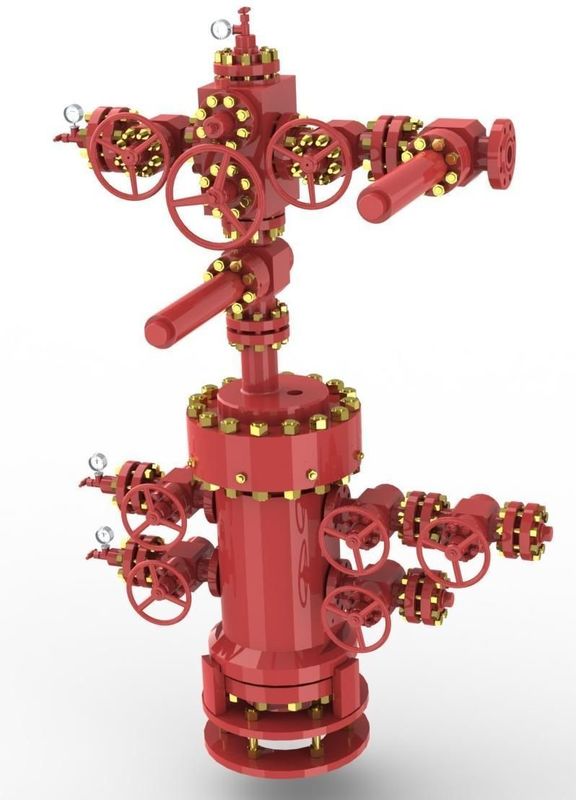

Oilfield Drilling 2 1/16" API Wellhead X Mas Tree

Oilfield Drilling 2 1/16" API Wellhead X Mas Tree
Oilfield Drilling 2 1/16" API Wellhead X Mas Tree Oilfield Drilling 2 1/16" API Wellhead X Mas Tree Oilfield Drilling 2 1/16" API Wellhead X Mas Tree

Large Image :  Oilfield Drilling 2 1/16" API Wellhead X Mas Tree

Product Details:
Place of Origin: Xi'an, China
Brand Name: TR Solids Control
Certification: API 6A, ISO9001
Model Number: TRCYS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 25 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 sets per month
Detailed Product Description
Working Temperature: -46°C ~ 121°C (L . U) Material Class: AA ~ HH
PR: PR1 ~ 2 Product Level: PSL1~PSL3
Working Pressure: 2000~20000PSI Material: Alloy Steel
Size: 2.1/16" To 5.1/8" Working Medium: Oil, Natural Gas, Mud, Gas With H2S, CO2
High Light:

API Wellhead X Mas Tree

,

Oilfield Wellhead X Mas Tree

,

PSL3 Wellhead X Mas Tree

Product Introduction



Petroleum drilling X'mas tree is a key equipment to control the pressure in wellhead and adjust the flow rate of oil/gas production operation.It is used on both surface and subsea well to control and regulate oil production management and other operations.


Main Functions: Connect casing in the well, seal casing annular space and bear part of weight of casing; Hang tubing and downhole tools, support the weight of tubing and seal the annular space between tubing and casing; Control and adjust oil production; X-mas tree for oil/gas is a device used to produce oil/gas and tested after oil /gas completion. It is the main equipment used to control and adjust oil production on the top of gas and oil well.



Main Benefits of Wellhead Christmas Tree/X-mas Tree



  • Apply to all kinds of casing, tubing programs and connection forms.
  • Also apply to acid fracturing, water injection and test service.
  • Can be equipped with various (pneumatic) hydraulic safety valve.
  • Control wellhead pressure and regulate the flow rate, also induce oil into outlet pipeline, shut off oil well when necessary.
  • Safe and reliable running, simple and convenient operating and maintenance.



Technical Information for X-mas Tree Assembly



Parameter Type
KQ65/21 KQ65/35 KQ80-65/35 KQ65/70 KQ78-65/70 KQ65/105 KQ78-65/105
Rated Pressure 3000psi 5000psi 5000psi 10000psi 10000psi 15000psi 15000psi
Nominal Size Main 2-9/16″ 2-9/16″ 3-1/8″ 2-9/16″ 3-1/16″ 2-9/16″ 3-1/16″
Side 2-9/16″ 2-9/16″ 2-9/16″ 2-9/16″ 2-9/16″ 2-9/16″ 2-9/16″
Working Temperature -46°C ~ 121°C ( L . U )
Available Medium Crude Gas
PSL PSL1 ~ 4
Material Class AA ~ HH
PR PR1 ~ 2
Connection Type Clamp,Flanged Flanged



Oilfield Drilling 2 1/16" API Wellhead X Mas Tree 0



Xi'an TianRui Petroleum Machinery Equipment Company Limited is one of the exporting windows of China Petroleum Machinery. Our company integrates the R&D, machinery processing and technical service of petroleum machinery products. Soright Tech aims at providing clients with satisfying products and service to benefit both clients and employees. Being master in petroleum machinery, Supplying high quality products to clients, Being honesty to everyone.



We have more than 10 years history in designing and manufacturing wellhead and christmas tree. The technology is in a leading position in China. We gained PR2 certificates for gate valve, choke valve and tubing head. Annual production is 5000 sets. Products have been exported to America, Saudi Arabia, India, Russia, Oman, Turkmenistan, Kazakhstan, Venezuela, etc.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
