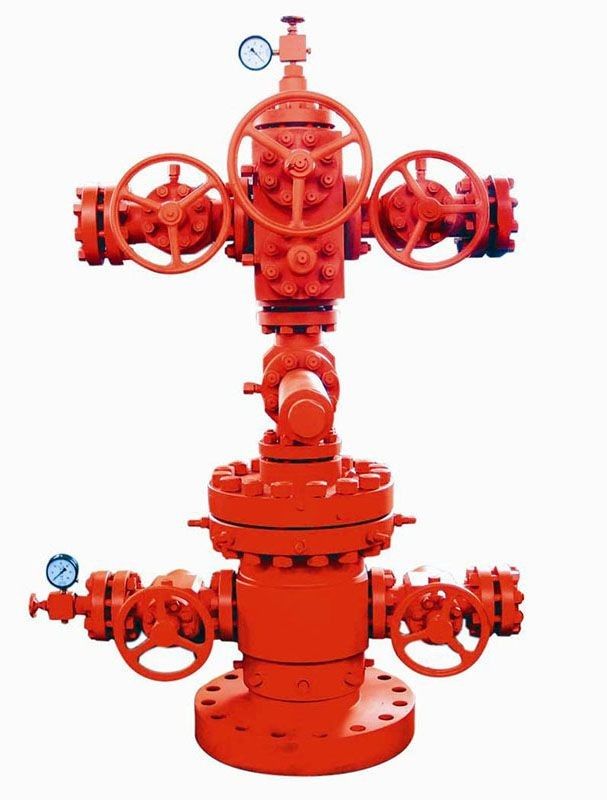

Dual Wing API 6A Wellhead Oilfield Christmas Tree

Dual Wing API 6A Wellhead Oilfield Christmas Tree
Dual Wing API 6A Wellhead Oilfield Christmas Tree Dual Wing API 6A Wellhead Oilfield Christmas Tree Dual Wing API 6A Wellhead Oilfield Christmas Tree

Large Image :  Dual Wing API 6A Wellhead Oilfield Christmas Tree

Product Details:
Place of Origin: Xi'an, China
Brand Name: TR Solids Control
Certification: API 6A, ISO9001
Model Number: TRCYS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 25 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000 sets per month
Detailed Product Description
Model: KQ65/21 Rated Pressure: 3000psi
Nominal Size: Main 2-9/16″ Side 2-9/16″ Working Temperature: -46°C ~ 121°C (L . U)
PSL: PSL1 ~ 4 Material Class: AA ~ HH
PR: PR1 ~ 2 Type: Single-wing And Dual-wing
High Light:

Oilfield Christmas Tree

,

Wellhead Christmas Tree

,

API 6A Christmas Tree

API 6A Oilfield Christmas Tree / Wellhead & X-Mas Tree

Product Overview

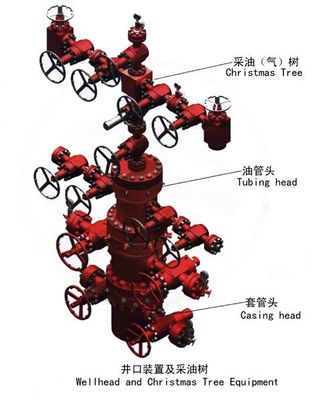

Wellhead & X’mas tree assembly, the key equipment in oil/gas production, consists of casing head, tubing head and X’mas tree, which are applicable for connection of casing string and tubing string, sealing the annular space between casing and tubing and controlling the pressure of the production wellhead and adjusting the flow rate of oil/gas wellhead as well as some special operations such as acid fracture, injection and test ctc.



We can supply the wellheads and Christmas trees suitable for land and offshore applications to explore, develop and produce oil. We design, manufacture, test and control these products in accordance with API 6A, latest edition and also hold a Certificate of Authority to use the API monogram for API 6A products. The main pressure-containing parts of these products are made from forgings or specially smelted low alloy steel (stainless steel) casings for high bearing strength. Wellheads manufactured by our company are available in pressure rating up tof105MPa, load rating up to 500 tons, material classes from AA through FF, temperature classes from L through V, product specification levels from 1 through 4 and PR1 & 2, and also meet NACE Standard MR0175.



Main Features of Our Wellhead Christmas Tree



  • Control wellhead pressure and regulate the flow rate, also induce oil into outlet pipeline, shut off oil well when necessary.
  • Also apply to acid fracturing, water injection and test service.
  • Apply to all kinds of casing, tubing programs and connection forms.
  • Safe and reliable running, simple and convenient operating and maintenance.
  • Can be equipped with various (pneumatic) hydraulic safety valve.



Technical Parameters for X-mas Tree Assembly



Parameter Type
KQ65/21 KQ65/35 KQ80-65/35 KQ65/70 KQ78-65/70 KQ65/105 KQ78-65/105
Rated Pressure 3000psi 5000psi 5000psi 10000psi 10000psi 15000psi 15000psi
Nominal Size Main 2-9/16″ 2-9/16″ 3-1/8″ 2-9/16″ 3-1/16″ 2-9/16″ 3-1/16″
Side 2-9/16″ 2-9/16″ 2-9/16″ 2-9/16″ 2-9/16″ 2-9/16″ 2-9/16″
Working Temperature -46°C ~ 121°C ( L . U )
Available Medium Crude Gas
PSL PSL1 ~ 4
Material Class AA ~ HH
PR PR1 ~ 2
Connection Type Clamp,Flanged Flanged





Dual Wing API 6A Wellhead Oilfield Christmas Tree 0



Parts List:

Dual Wing API 6A Wellhead Oilfield Christmas Tree 1

Item
Component
Qty Material



Remark

1 Lockdown Screw 12 4130
2 Packing Nut 12 5140
3 Packing Washer 24 410
4 Packing 60 PTFE
5 Slip Hanger Assy 1
6 Casing Head Housing 1 4130



Dual Wing API 6A Wellhead Oilfield Christmas Tree 2

Item Component Qty Material Remark
1 Slip Hanger Assy 1
2 Lockdown Screw Assy 12
3 BT Seal Ring 1 NBR
4 Casing Spool 1 4130
5 Grease Fitting 4





Dual Wing API 6A Wellhead Oilfield Christmas Tree 3

Item Component Qty Material Remark
1 Socket Head Screw 16
2 Upper Lock Ring 1 4140
3 Seal Ring 1 NBR
4 Lower Lock Ring 1 4140
5 Positioning Ring 1 4140
6 Slip 1 4130





Xi'an TianRui Petroleum Machinery Equipment Company Limited is a professional manufacturer of various oilfield equipments and cementing accessories since 2010, restructured enterprise of SINOPEC. Our group have 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.



Our products have been ISO9001 certified and attained API 6A,6D,API 7,7K,and API 16A&16C approvals of American Petroleum Institute. All products are fully designed and manufactured in accordance with API,ANSI,GB(national standards)and SY(industry standards)standards.
