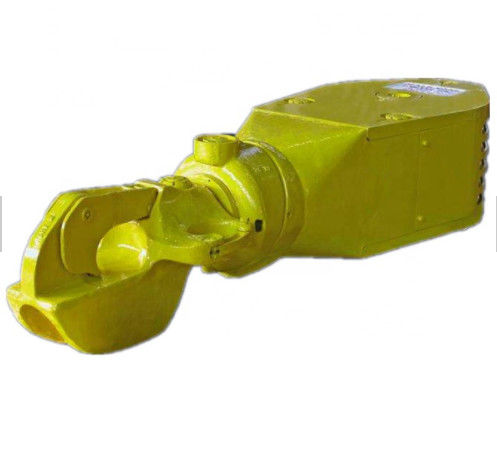

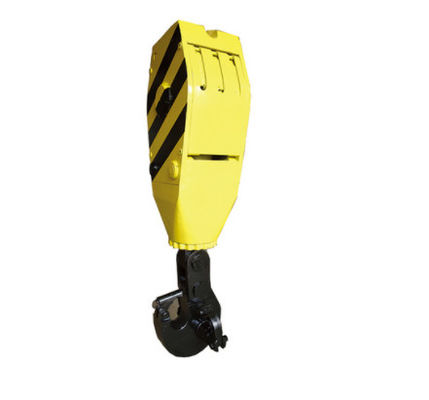

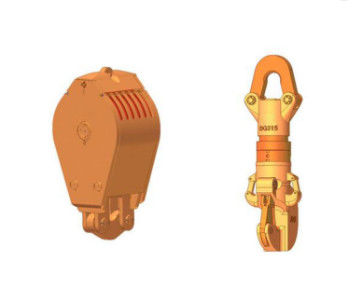

YG Series 760mm Sheaves Oilfield Integral Traveling Block

YG Series 760mm Sheaves Oilfield Integral Traveling Block
YG Series 760mm Sheaves Oilfield Integral Traveling Block YG Series 760mm Sheaves Oilfield Integral Traveling Block YG Series 760mm Sheaves Oilfield Integral Traveling Block

Large Image :  YG Series 760mm Sheaves Oilfield Integral Traveling Block

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 8A/8C, ISO
Model Number: TRYG
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 7000 Pcs Per Month
Detailed Product Description
Wire Line Dia. In (mm): 26mm O.D. Of Sheaves In (mm): 760
Spring Travel (mm): 150 Hook Style: 3-Hook
Application: Oil And Gas Drilling Major-Hook Opening: 150~190mm
Color: Yellow Type: Integral Traveling Block And Hook
High Light:

Oilfield Integral Traveling Block

,

760mm Sheaves Integral Traveling Block

,

API 8A Integral Traveling Block

YG Series Oilfield Integral Traveling Block and Hook



Product Introduction



The integral traveling block and hook assembly is designed to be used on a small and medium capacity drilling rigs and workover rigs, with features of smaller overall dimensions and weight. The hook blocks conform to API Spec 8A/8C and API monogram permitted to be stamped.



Traveling block & hook is one of the lifting equipments for petroleum drilling rig and workover rig with the integral design, which can shorten the length between traveling block and hook, perfectly meeting the traveling space for lifting system The traveling block & hook can be in accordance with Spec 8C PSL1.



The sheave grooves are intermediate frequency quenched so as to provide surface hardness and extend service life of sheaves.



Main Benefits of Our Oilfield Traveling Hook Block

  1. Built to API 8A, having the certificate of authority to use the official API monogram.
  2. The sheave groove is quenching treated, anti-abrasion with long service life.
  3. Conforming to the requirements of industry standard SY/T5527.
  4. The sheave and bearing are interchangeable for those of mated crown block.
  5. The main parts aire made of high strength alloy steels and are subjected to nondestructive testing.

Technical Specifications Table of Our Oilfield Traveling Hook Block



Model YG100 YG150 YG170 YG250
Rated Capacity(kN) 890 1350 1700 2550
Sheave qty/Dia(mm) 3/609.6 4/915 5/915 5/915
Hook style 3-hook 3-hook 3-hook 3-hook
Wire line OD(mm) 25.4 26/29 29 32
Hook opening dimension(mm) _ 165 180 190
Spring travel(mm) _ 180 180 180
Dimension (mm) 1685×675×510 3195×960×616 3307×960×616 3450×970×850
Weight (kg) 1010 3590 4585 4732



YG Series 760mm Sheaves Oilfield Integral Traveling Block 0



Our company is committed to develop, manufacture and supply a variety of oilfield equipment. Main products include: Petroleum equipment & tools such as solid control equipment, oil production equipment, oil pipes, wellhead equipment, download tools, well control equipment, cementing tools, and petrochemicals etc. Besides, we also provide oilfield technology service to our domestic and foreign customers. We passed the API and international standards.We have obtained ISO, 3C,etc certificated qualification and extreme standard let us keep very competitive in the current market. As a leading manufacturer of petroleum machinery, we are pleased to inform you that we have working with many big companies throughout the world.



Besides, we also provide oilfield technology service to our domestic and foreign customers. We passed the API and international standards. We have obtained ISO, 3C,etc certificated qualification and extreme standard let us keep very competitive in the current market. As a leading manufacturer of petroleum machinery, we are pleased to inform you that we have working with many big companies throughout the world.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
