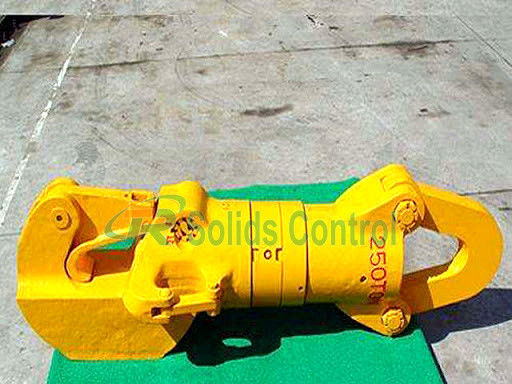

Drilling Rig API 8C Forging Traveling Block Hook

Drilling Rig API 8C Forging Traveling Block Hook
Drilling Rig API 8C Forging Traveling Block Hook Drilling Rig API 8C Forging Traveling Block Hook Drilling Rig API 8C Forging Traveling Block Hook

Large Image :  Drilling Rig API 8C Forging Traveling Block Hook

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 8A/8C, ISO
Model Number: TRYG
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 6000 Pcs Per Month
Detailed Product Description
Wire Line OD(mm): 25.4-32 Mm Lift Speed: 60m/Min
Wire Line Dia. In (mm): 26mm O.D. Of Sheaves In (mm): 760
Spring Travel (mm): 150 Hook Style: 3-Hook
Application: Oil And Gas Drilling Color: Yellow Or Customized
High Light:

Forging Traveling Block Hook

,

API 8C Traveling Block Hook

,

60m/Min Traveling Block

API 8C Traveling Block and Hook Forging for Drilling Rig

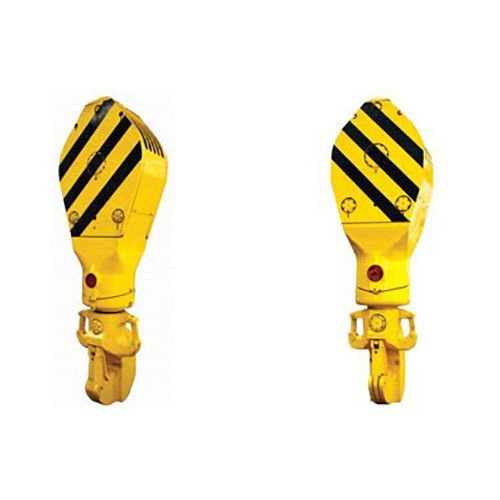

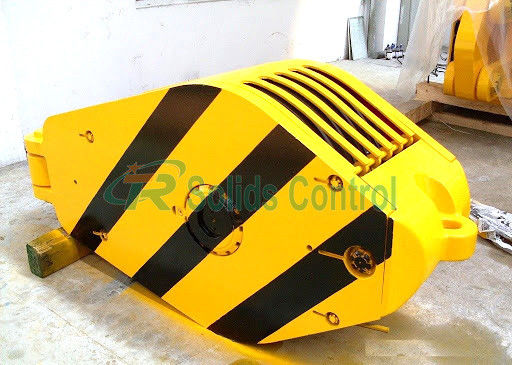

Product Overview



Traveling block & hook is one of the lifting equipments for petroleum drilling rig and workover rig with the integral design, which can shorten the length between traveling block and hook, perfectly meeting the traveling space for lifting system The traveling block & hook can be in accordance with Spec 8C PSL1.



The advanced heat treatment processes such as carburetion, etc. is used on some crucial driving components with high strength and long service life



Structural Features of Oilfield Travelling Block and Hook

  1. Hook block complies with API 8C standard.
  2. Joining traveling block and hook together reduces overall length and can help satisfying the requirements of top drive operation.
  3. The hook block is equipped with the reliable safety devices on the main hook.
  4. The main parts are made of high strength alloy steels and are subjected to nondestructive testing.
  5. The sheave grooves have been intermediate frequency quenched, which can improve the hardness of the surface, the wearness, and the service life.

Packaging & Shipping


Packaging Details: International Sea Transportation Packing ,Standard export packaging.
Delivery Time: Based on order quantity, normally it takes 25 days for production, Only 3 or 10 days if we have stock on your request size.



Technical Information of Our Oilfield Traveling Hook Block



Model YG100 YG150 YG170 YG250
Rated Capacity(kN) 890 1350 1700 2550
Sheave qty/Dia(mm) 3/609.6 4/915 5/915 5/915
Hook style 3-hook 3-hook 3-hook 3-hook
Wire line OD(mm) 25.4 26/29 29 32
Hook opening dimension(mm) _ 165 180 190
Spring travel(mm) _ 180 180 180
Dimension (mm) 1685×675×510 3195×960×616 3307×960×616 3450×970×850
Weight (kg) 1010 3590 4585 4732



Drilling Rig API 8C Forging Traveling Block Hook 0


Our products have been exported to 15 countries& areas around the world, 80% of our exsisting customers have done the business with us by more than 5 times, no one-off customer. We will continue to expand our range, and win more customers' trust with our better and better performance.



Xi'an TianRui Petroleum Machinery Equipment Company was established in 2010 and located in Xi'an city, Shaanxi Province of Chia, covers an area of more than 330 million square meters. Our main products include: oilfield drilling rig and workover rig and their parts,wellhead tools, BOP and spare parts,mud pump spare parts, solid control equipment.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
