Product Details:
Payment & Shipping Terms:
|
| Wire Line OD(mm): | 25.4-32 Mm | Lift Speed: | 60m/Min |
|---|---|---|---|
| Wire Line Dia. In (mm): | 26mm | O.D. Of Sheaves In (mm): | 760 |
| Spring Travel (mm): | 150 | Hook Style: | 3-Hook |
| Application: | Oil And Gas Drilling | Color: | Yellow Or Customized |
| High Light: | 60m/Min Drill Spare Parts,760mm Sheaves Travelling Block,3 Hook Drill Spare Parts |
||

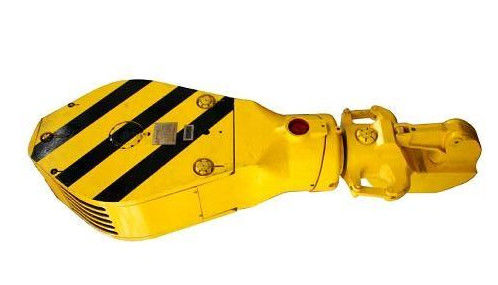

Tiger Rig YG135 YG225 YG450 Travelling Block and Hook
Product Overview

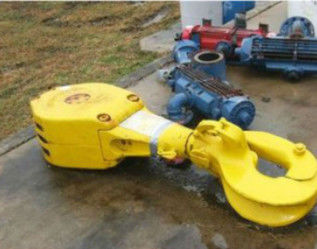

Oilfield hook block is the high-capacity J-shaped equipment used to hang various other equipment, particularly the swivel and kelly, the elevator bails or topdrive units. The hook is attached to the bottom of the traveling block and provides a way to pick up heavy loads with the traveling block. The hook is either locked (the normal condition) or free to rotate, so that it may be mated or decoupled with items positioned around the rig floor, not limited to a single direction.
As the manufacturer, we produce below items:
-Solid control product-shale shaker, mud cleaner, decanter centrifuge, mud agitator, centrifugal pump etc.
-DST tools- Full bore retrievable packer, circulating valve, select tester valve,safety valve etc.
-Surface well testing equipment - Flowhead, SSV, ESD,Separator etc.
-Wellhead equipment such as BOP, X-mas tree, Choke manifold, kill manifold, drilling spool, casing head and other valve & flanges
-Downhole tools such as stabilizer, stabilizer forging, reamer, X-over sub and so on.
Design Benefits of Our Oilfield Traveling Hook Block
Technical Specifications of Our Oilfield Traveling Hook Block

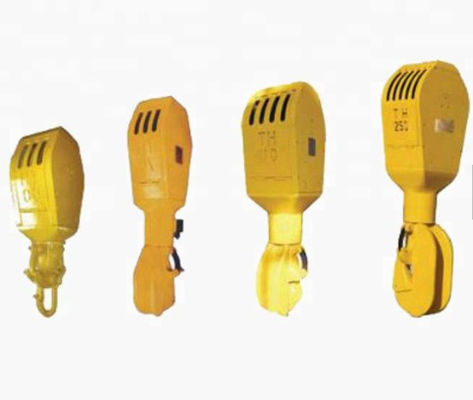

| Model | YG100 | YG150 | YG170 | YG250 |
| Rated Capacity(kN) | 890 | 1350 | 1700 | 2550 |
| Sheave qty/Dia(mm) | 3/609.6 | 4/915 | 5/915 | 5/915 |
| Hook style | 3-hook | 3-hook | 3-hook | 3-hook |
| Wire line OD(mm) | 25.4 | 26/29 | 29 | 32 |
| Hook opening dimension(mm) | _ | 165 | 180 | 190 |
| Spring travel(mm) | _ | 180 | 180 | 180 |
| Dimension (mm) | 1685×675×510 | 3195×960×616 | 3307×960×616 | 3450×970×850 |
| Weight (kg) | 1010 | 3590 | 4585 | 4732 |
FAQ
The information you may like to know before order:
1. Methods of Payment:
T/T (Telegraphic Transfer) sor Western Union or L/C at sight
2. Handling time for an order
Based on order quantity, normally it takes 25 days for production.
Only 2 or 3 days if we have stock on your request size.
3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
5. After Services:
1. Our sales team will response for your question within 24 hours (Holidays Excluded)
2. Technical Support will be available in any time
3. Free replacement will provide once the failure confirmed caused by our product quality.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
