4 Sheaves 3 Hooks API 8C Hook Block Drilling Spare Parts

4 Sheaves 3 Hooks API 8C Hook Block Drilling Spare Parts
4 Sheaves 3 Hooks API 8C Hook Block Drilling Spare Parts 4 Sheaves 3 Hooks API 8C Hook Block Drilling Spare Parts 4 Sheaves 3 Hooks API 8C Hook Block Drilling Spare Parts

Large Image :  4 Sheaves 3 Hooks API 8C Hook Block Drilling Spare Parts

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 8A/8C, ISO
Model Number: TRYG
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000 Pcs Per Month
Detailed Product Description
Wire Line OD(mm): 25.4-32 Mm Lift Speed: 60m/Min
Maximum Lifting Height: 1000m Wire Line Dia. In (mm): 26mm
O.D. Of Sheaves In (mm): 760 Spring Travel (mm): 150
Number Of Sheaves: 4 Hook Style: 3-Hook
High Light:

Hook Block Drilling Spare Parts

,

API 8C Drilling Spare Parts

,

3 Hooks Drilling Spare Parts

API 8C Drilling Rig Spare Parts Hook Block with 3-Hook



Product Descrption



Travelling Block and Hook are effective devices of drilling rig for lifting. We supply API 8C certified traveling block and hook with API monogram. Both integral structure of travelling block with hook, and sole travelling block or travelling hook are available.

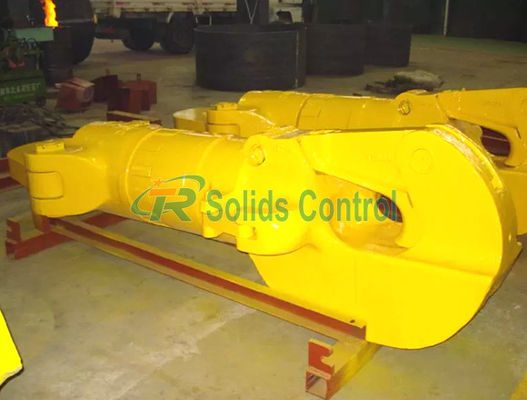

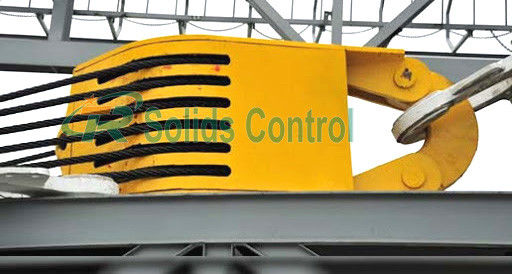

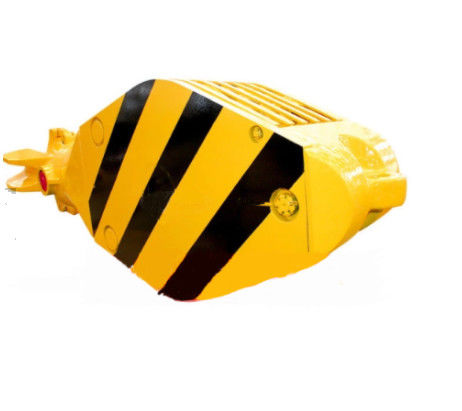

The hook block assembly is the hoisting equipment for oil-drilling rig. It is mainly used to hoist and trip the drill pipe, replace bits, run the casing during petroleum drilling operation by cooperated with crown block, swivel, and elevator ring. It also can be used to eliminate accidents during slight pipe-sticking and touching resistance. The hook block is a combination of traveling block and hook, which shortens the length between the traveling block and the hook. It can work with crown block, swivel, and elevator ring with the same API grade. YG135 hook block features perfect performance, higher mechanization, and safer and more reliable operation.



Main Design Features of Our Oilfield Traveling Hook Block

  1. The sheave groove is quenching treated, anti-abrasion with long service life.
  2. Built to API 8A, having the certificate of authority to use the official API monogram.
  3. Conforming to the requirements of industry standard SY/T5527.
  4. The sheave and bearing are interchangeable for those of mated crown block.
  5. The main parts aire made of high strength alloy steels and are subjected to nondestructive testing.

Technical Data Table of Our Oilfield Traveling Hook Block



Model YG100 YG150 YG170 YG250
Rated Capacity(kN) 890 1350 1700 2550
Sheave qty/Dia(mm) 3/609.6 4/915 5/915 5/915
Hook style 3-hook 3-hook 3-hook 3-hook
Wire line OD(mm) 25.4 26/29 29 32
Hook opening dimension(mm) _ 165 180 190
Spring travel(mm) _ 180 180 180
Dimension (mm) 1685×675×510 3195×960×616 3307×960×616 3450×970×850
Weight (kg) 1010 3590 4585 4732



4 Sheaves 3 Hooks API 8C Hook Block Drilling Spare Parts 0



Xi'an TianRui Petroleum Machinery Equipment Company was established in 2010 and located in Xi'an city, Shaanxi Province of Chia, covers an area of more than 330 million square meters. Our main products include: oilfield drilling rig and workover rig and their parts,wellhead tools, BOP and spare parts,mud pump spare parts, solid control equipment.



Our Service


1. For all your inquiries about our products, we will reply you in detail within 24 hours.
2. We have engineers who have more than 10 years’experience to help you solve all the problems of technical.
3. We have a good translation, enthusiastic sales and service who can speak fluently in English and Russsain.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
