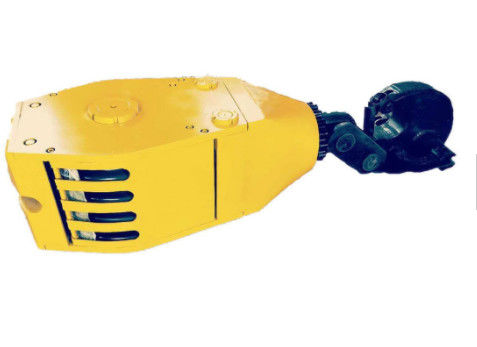

NDT Casting API 8A Oilfield Traveling Hook Block

NDT Casting API 8A Oilfield Traveling Hook Block
NDT Casting API 8A Oilfield Traveling Hook Block NDT Casting API 8A Oilfield Traveling Hook Block NDT Casting API 8A Oilfield Traveling Hook Block

Large Image :  NDT Casting API 8A Oilfield Traveling Hook Block

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 8A/8C, ISO
Model Number: TRYG
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 4000 Pcs Per Month
Detailed Product Description
Wire Line OD(mm): 25.4-32 Mm Max. Hook Load (kN): 110
Lift Speed: 60m/Min Maximum Lifting Height: 1000m
Wire Line Dia. In (mm): 26mm O.D. Of Sheaves In (mm): 760
Spring Travel (mm): 150 Processing Type: Casting
High Light:

Oilfield Traveling Hook Block

,

API 8A Traveling Hook Block

,

NDT Casting Traveling Hook Block

API 8A Standard Oilfield Traveling Hook Block YG450



Product Descrption

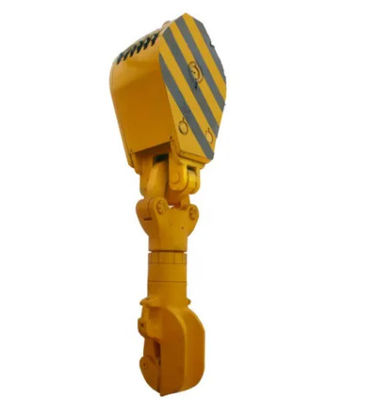

Travelling Block and Hook are effective devices of drilling rig for lifting. We supply API 8C certified traveling block and hook with API monogram. Both integral structure of travelling block with hook, and sole travelling block or travelling hook are available.

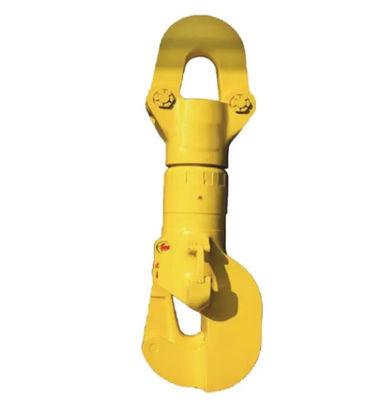

Oilfield hook block is the high-capacity J-shaped equipment used to hang various other equipment, particularly the swivel and kelly, the elevator bails or topdrive units. The hook is attached to the bottom of the traveling block and provides a way to pick up heavy loads with the traveling block. The hook is either locked (the normal condition) or free to rotate, so that it may be mated or decoupled with items positioned around the rig floor, not limited to a single direction.



Hook description and features:


Design and fabrication as per API 8C,
Best quality and field proven hook block.
NDT for main load bearing parts.
Special alloy forging for hook body, bail and bail seat.
Built in hydraulic snubber eliminates damage to tool joint thread.



Main Design Features of Our Oilfield Traveling Hook Block



  • Conforms to industry standard SY/T5527.
  • Sheave grooves are heat quenched,wear-resistance and a long service life.
  • Sheaves and bearings are interchangeable with its matched crown block sheaves and bearings.
  • The main parts aire made of high strength alloy steels and are subjected to nondestructive testing.
  • Series traveling blocks conform to API Spec 8A,and are granted the right to use API monogram



Specifications Table of Our Oilfield Traveling Hook Block



Model YG100 YG150 YG170 YG250
Rated Capacity(kN) 890 1350 1700 2550
Sheave qty/Dia(mm) 3/609.6 4/915 5/915 5/915
Hook style 3-hook 3-hook 3-hook 3-hook
Wire line OD(mm) 25.4 26/29 29 32
Hook opening dimension(mm) _ 165 180 190
Spring travel(mm) _ 180 180 180
Dimension (mm) 1685×675×510 3195×960×616 3307×960×616 3450×970×850
Weight (kg) 1010 3590 4585 4732



NDT Casting API 8A Oilfield Traveling Hook Block 0


Xi'an TianRui Petroleum Machinery Equipment Company Limited is a professional supplier of various oilfield equipment, including oil drilling and service equipment, oil production equipment, OCTG, wellhead & downhole tools and spare parts. Our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). Our company has become VIP (assigned) supplier and built strategic partnership with some countries' national petroleum companies.


Packaging & Shipping


Packaging Details: International Sea Transportation Packing ,Standard export packaging.
Delivery Time: Based on order quantity, normally it takes 25 days for production, Only 3 or 10 days if we have stock on your request size.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
