760mm Sheaves 1000m Lifting 890KN Oilfield Traveling Block

760mm Sheaves 1000m Lifting 890KN Oilfield Traveling Block
760mm Sheaves 1000m Lifting 890KN Oilfield Traveling Block 760mm Sheaves 1000m Lifting 890KN Oilfield Traveling Block 760mm Sheaves 1000m Lifting 890KN Oilfield Traveling Block

Large Image :  760mm Sheaves 1000m Lifting 890KN Oilfield Traveling Block

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 8A/8C, ISO
Model Number: TRYG
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable

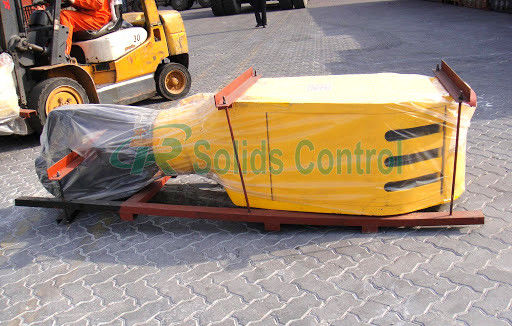

Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 4000 Pcs Per Month
Detailed Product Description
Wire Line OD(mm): 25.4-32 Mm Max. Hook Load (kN): 110
Sling Type: Wire Rope Lift Speed: 60m/Min
Maximum Lifting Height: 1000m Wire Line Dia. In (mm): 26mm
O.D. Of Sheaves In (mm): 760 Warranty Term: 12 Months
High Light:

890KN Oilfield Traveling Block

,

1000m Lifting Oilfield Traveling Block

,

760mm Sheaves Oilfield Traveling Block

Oilfiled Rated Capacity 890 KN Traveling Block Hook



Product Descrption

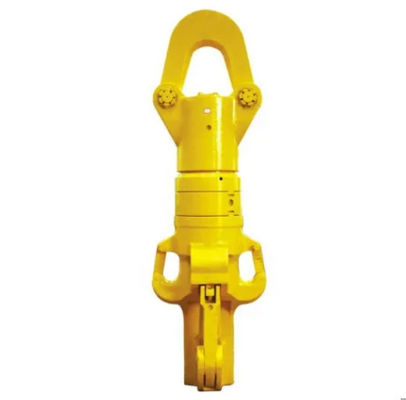

Oilfield hook block is the high-capacity J-shaped equipment used to hang various other equipment, particularly the swivel and kelly, the elevator bails or topdrive units. The hook is attached to the bottom of the traveling block and provides a way to pick up heavy loads with the traveling block. The hook is either locked (the normal condition) or free to rotate, so that it may be mated or decoupled with items positioned around the rig floor, not limited to a single direction.



Hook Block (split type)


Travelling block description and features:

  • Design and fabrication as per API 8C.
  • Best quality and field proven travelling block.
  • Steel sheaves with flame hardened API wireline grooves.
  • Tapered roller bearing in sheaves, oil quenched and tempered alloy steel pin with individual grease passages to each center pin bearing.



Design Benefits of Our Oilfield Traveling Hook Block



  • Conforms to industry standard SY/T5527.
  • The main parts aire made of high strength alloy steels and are subjected to nondestructive testing.
  • Series traveling blocks conform to API Spec 8A,and are granted the right to use API monogram.
  • Sheave grooves are heat quenched,wear-resistance and a long service life.
  • Sheaves and bearings are interchangeable with its matched crown block sheaves and bearings.



Parameters Table of Our Oilfield Traveling Hook Block



Model YG100 YG150 YG170 YG250
Rated Capacity(kN) 890 1350 1700 2550
Sheave qty/Dia(mm) 3/609.6 4/915 5/915 5/915
Hook style 3-hook 3-hook 3-hook 3-hook
Wire line OD(mm) 25.4 26/29 29 32
Hook opening dimension(mm) _ 165 180 190
Spring travel(mm) _ 180 180 180
Dimension (mm) 1685×675×510 3195×960×616 3307×960×616 3450×970×850
Weight (kg) 1010 3590 4585 4732





760mm Sheaves 1000m Lifting 890KN Oilfield Traveling Block 0



Xi'An TianRui Petroleum Machinery Equipment Company Limited was established in 2010 and located in Xi'an city, China. We have specialized technicians, senior engineers and professional marketing team. Our company is committed to develop, manufacture and supply a variety of oilfield equipment. Main products include: solid control equipment, Petroleum equipment & tools such as drilling equipment, oil production equipment, oil pipes, wellhead equipment, download tools, well control equipment, cementing tools, and petrochemicals etc.



Our main products:
Drill Equipment, Solid control equipment, Well control system, OCTG, Well head tools, camps, drill bit and spray head, drilling instruments, cementing, oil mining equipment, water well drilling rig and petrochemical products, Electric oil-submersible pump unit, QYYEQ Submersible power cables and so on.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
