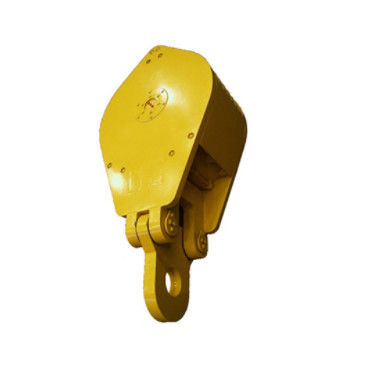

Alloy Steel 60m/Min 110kN Drilling Rig Traveling Hook Block

Alloy Steel 60m/Min 110kN Drilling Rig Traveling Hook Block
Alloy Steel 60m/Min 110kN Drilling Rig Traveling Hook Block Alloy Steel 60m/Min 110kN Drilling Rig Traveling Hook Block Alloy Steel 60m/Min 110kN Drilling Rig Traveling Hook Block

Large Image :  Alloy Steel 60m/Min 110kN Drilling Rig Traveling Hook Block

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 8A/8C, ISO
Model Number: TRYG
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 4000 Pcs Per Month
Detailed Product Description
Wire Line OD(mm): 25.4-32 Mm Max. Hook Load (kN): 110
Sling Type: Wire Rope Lift Speed: 60m/Min
Maximum Lifting Height: 1000m Material: Alloy Steel
Wire Line Dia. In (mm): 26mm
High Light:

110kN Traveling Hook Block

,

API 8C Traveling Hook Block

,

Alloy Steel Traveling Hook Block

Yellow Color YG150 Traveling Hook Block for Drilling Rig



Product Descrption

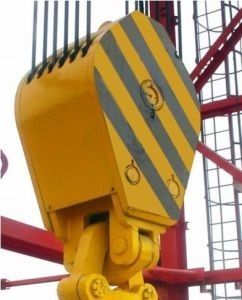

The hook block assembly is the hoisting equipment for oil-drilling rig. It is mainly used to hoist and trip the drill pipe, replace bits, run the casing during petroleum drilling operation by cooperated with crown block, swivel, and elevator ring. It also can be used to eliminate accidents during slight pipe-sticking and touching resistance. The hook block is a combination of traveling block and hook, which shortens the length between the traveling block and the hook. It can work with crown block, swivel, and elevator ring with the same API grade. YG135 hook block features perfect performance, higher mechanization, and safer and more reliable operation.

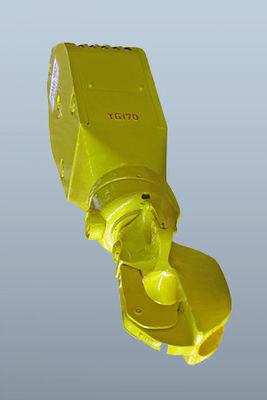

Hook Block (integrated type)


Description and features:

  • Design and fabrication as per API 8C.
  • Travelling block and hook integrated together.
  • Compact structure , overall length shortened.
  • Suitable for mobile mounted drilling rig and workover rig.



Main Characterstics of Our Oilfield Traveling Hook Block



  • The main parts aire made of high strength alloy steels and are subjected to nondestructive testing.
  • Hook Block complies with API 8C standard .
  • The sheave grooves have been intermediate frequency quenched,which can improve the hardness of the surface,the wearness,and the service life.
  • Joining traveling block and hook together reduces overall length and can help satisfying the requirements of top drive operation.
  • The hook block is equipped with the reliable safety devices on the main hook.



Technical Parameters Table of Our Oilfield Traveling Hook Block



Model YG100 YG150 YG170 YG250
Rated Capacity(kN) 890 1350 1700 2550
Sheave qty/Dia(mm) 3/609.6 4/915 5/915 5/915
Hook style 3-hook 3-hook 3-hook 3-hook
Wire line OD(mm) 25.4 26/29 29 32
Hook opening dimension(mm) _ 165 180 190
Spring travel(mm) _ 180 180 180
Dimension (mm) 1685×675×510 3195×960×616 3307×960×616 3450×970×850
Weight (kg) 1010 3590 4585 4732



Alloy Steel 60m/Min 110kN Drilling Rig Traveling Hook Block 0



Packaging & Shipping


Packaging Details: International Sea Transportation Packing ,Standard export packaging.
Delivery Time: Based on order quantity, normally it takes 25 days for production, Only 3 or 10 days if we have stock on your request size.



Xi'An TianRui Petroleum Machinery Equipment Company Limited follows the principle of "quality first, science and technology innovated, people oriented", it benefits from the convenient running, high efficiency, swift reaction, experienced experts and the advanced management. In a meanwhile, it has about 50 sub-contractors to cooperate all over the country, and it always sticks to good faith, strictness, specialty, innovation, also satisfactory service.our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions).



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
