60m/Min Oilfield Rig Alloy Steel Traveling Block Hook

60m/Min Oilfield Rig Alloy Steel Traveling Block Hook
60m/Min Oilfield Rig Alloy Steel Traveling Block Hook 60m/Min Oilfield Rig Alloy Steel Traveling Block Hook 60m/Min Oilfield Rig Alloy Steel Traveling Block Hook

Large Image :  60m/Min Oilfield Rig Alloy Steel Traveling Block Hook

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 8A/8C, ISO
Model Number: TRYG
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000 Pcs Per Month
Detailed Product Description
Wire Line OD(mm): 25.4-32 Mm Max. Hook Load (kN): 900
Type: Hydraulic Hoist Sling Type: Wire Rope
Application: Drilling Rig Lifting Lift Speed: 60m/Min
Maximum Lifting Height: 1000m Material: Alloy Steel
High Light:

Alloy Steel Traveling Block Hook

,

60m/Min Traveling Block Hook

,

1000m Lift Traveling Block Hook

Alloy Steel Traveling Block Hook for Oilfield Workover Rig



Product Introduction

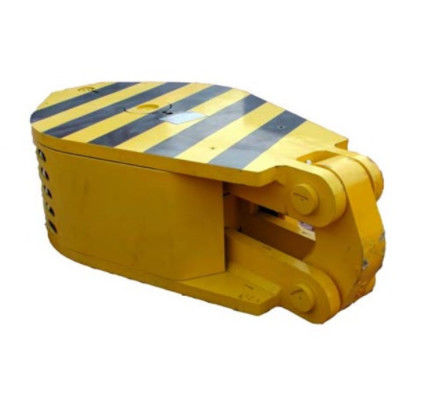

Travelling and Hook Block Travelling and hook block is important hoisting equipment for rotary drilling rig. Our product comforms API 8C standars and we offer best quality product with competitive price.



Hook block complies with API Spec 8A/8C. Joining traveling block and hook together reduces overall length and can help satisfying the requirements of top drive operation. The hook block is equipped with the reliable safety devices on the main hook. The main parts are made of high strength alloy steels and are subjected to nondestructive testing. The sheave grooves have been intermediate frequency quenched, which can improve the hardness of the surface, the wearness, and the service life.



Design Features of Our Oilfield Traveling Hook Block



  • Hook Block complies with API 8C standard .
  • The main parts aire made of high strength alloy steels and are subjected to nondestructive testing.
  • Joining traveling block and hook together reduces overall length and can help satisfying the requirements of top drive operation.
  • The hook block is equipped with the reliable safety devices on the main hook.
  • The sheave grooves have been intermediate frequency quenched,which can improve the hardness of the surface,the wearness,and the service life.



Main Technical Parameters of Our Oilfield Traveling Hook Block



Model YG100 YG150 YG170 YG250
Rated Capacity(kN) 890 1350 1700 2550
Sheave qty/Dia(mm) 3/609.6 4/915 5/915 5/915
Hook style 3-hook 3-hook 3-hook 3-hook
Wire line OD(mm) 25.4 26/29 29 32
Hook opening dimension(mm) _ 165 180 190
Spring travel(mm) _ 180 180 180
Dimension (mm) 1685×675×510 3195×960×616 3307×960×616 3450×970×850
Weight (kg) 1010 3590 4585 4732
