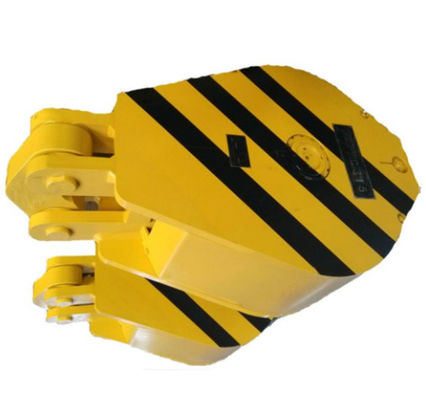

Hydraulic Hoist 900KN Oilfield Drilling Block Hook

Hydraulic Hoist 900KN Oilfield Drilling Block Hook
Hydraulic Hoist 900KN Oilfield Drilling Block Hook Hydraulic Hoist 900KN Oilfield Drilling Block Hook Hydraulic Hoist 900KN Oilfield Drilling Block Hook

Large Image :  Hydraulic Hoist 900KN Oilfield Drilling Block Hook

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 8A/8C, ISO
Model Number: TRYG
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000 Pcs Per Month
Detailed Product Description
Wire Line OD(mm): 25.4-32 Mm Max. Hook Load (kN): 900
Model: Traveling Block-YC450 Type: Hydraulic Hoist
Color: Yellow Sling Type: Wire Rope
Application: Drilling Rig Lifting Lift Speed: 60m/Min
High Light:

Oilfield Drilling Block Hook

,

900KN Drilling Block Hook

,

60m/Min Drilling Block Hook

Oilfield Well Drilling Rig Block Hook with Hook Load 900 KN



Product Introduction



Oilfield hook block is the high-capacity J-shaped equipment used to hang various other equipment, particularly the swivel and kelly, the elevator bails or topdrive units. The hook is attached to the bottom of the traveling block and provides a way to pick up heavy loads with the traveling block. The hook is either locked (the normal condition) or free to rotate, so that it may be mated or decoupled with items positioned around the rig floor, not limited to a single direction.



Travelling and Hook Block Travelling and hook block is important hoisting equipment for rotary drilling rig. Our product comforms API 8C standars and we offer best quality product with competitive price.



Main Specialities of Our Oilfield Traveling Hook Block



  • Hook Block complies with API 8C standard .
  • The hook block is equipped with the reliable safety devices on the main hook.
  • The main parts aire made of high strength alloy steels and are subjected to nondestructive testing.
  • Joining traveling block and hook together reduces overall length and can help satisfying the requirements of top drive operation.
  • The sheave grooves have been intermediate frequency quenched,which can improve the hardness of the surface,the wearness,and the service life.



Technical Parameters of Our Oilfield Traveling Hook Block



Model YG100 YG150 YG170 YG250
Rated Capacity(kN) 890 1350 1700 2550
Sheave qty/Dia(mm) 3/609.6 4/915 5/915 5/915
Hook style 3-hook 3-hook 3-hook 3-hook
Wire line OD(mm) 25.4 26/29 29 32
Hook opening dimension(mm) _ 165 180 190
Spring travel(mm) _ 180 180 180
Dimension (mm) 1685×675×510 3195×960×616 3307×960×616 3450×970×850
Weight (kg) 1010 3590 4585 4732



Hydraulic Hoist 900KN Oilfield Drilling Block Hook 0



Our Service


1. We are in a good position not only to supply you high quality machinery, but also the excellent after sales service. And the products have a long warranty period.
2. Our sales team will response for your question within 24 hours (Holidays Excluded).
3. Free replacement will provide once the failure confirmed caused by our product quality.



Xi'An TianRui Petroleum Machinery Equipment Company Limited was established in 2010 and located in Xi'an city, China. We have specialized technicians, senior engineers and professional marketing team. Our company is committed to develop, manufacture and supply a variety of oilfield equipment. Main products include: solid control equipment, Petroleum equipment & tools such as drilling equipment, oil production equipment, oil pipes, wellhead equipment, download tools, well control equipment, cementing tools, and petrochemicals etc.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
