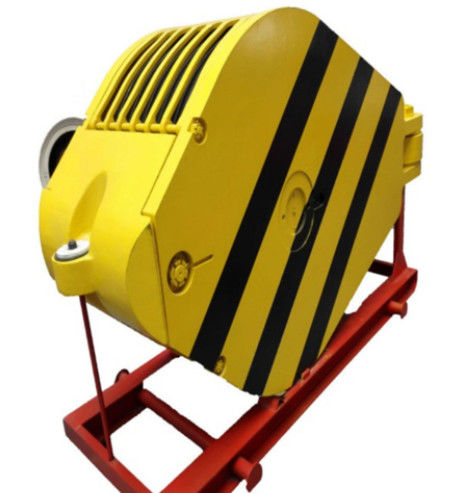

Casing Wire Rope 890kN Hydraulic Hoist Traveling Block

Casing Wire Rope 890kN Hydraulic Hoist Traveling Block
Casing Wire Rope 890kN Hydraulic Hoist Traveling Block Casing Wire Rope 890kN Hydraulic Hoist Traveling Block Casing Wire Rope 890kN Hydraulic Hoist Traveling Block

Large Image :  Casing Wire Rope 890kN Hydraulic Hoist Traveling Block

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 8A/8C, ISO
Model Number: TRYG
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 6000 Pcs Per Month
Detailed Product Description
Hook Style: 3 Hook Wire Line OD(mm): 25.4-32 Mm
Max. Hook Load (kN): 900 Warranty: 12 Months
Model: Traveling Block-YC450 Type: Hydraulic Hoist
Color: Yellow Sling Type: Wire Rope
High Light:

API 8C Hoist Traveling Block

,

890kN Traveling Block

,

32mm Wire Line Traveling Block

API 8C Standard Hoisting System Traveling Block and Hook



Product Introduction



Traveling Block is part of the drilling rig lifting system, it is supporting the use of crown block, hooks, swivel, elevate link and so on. In the drilling process, mainly used for drill rod, drill replacement, casing and other operations.



Oilfield hook block is the high-capacity J-shaped equipment used to hang various other equipment, particularly the swivel and kelly, the elevator bails or topdrive units. The hook is attached to the bottom of the traveling block and provides a way to pick up heavy loads with the traveling block. The hook is either locked (the normal condition) or free to rotate, so that it may be mated or decoupled with items positioned around the rig floor, not limited to a single direction.



Design Advantages of Our Oilfield Traveling Hook Block



  • Hook Block complies with API 8C standard .
  • Joining traveling block and hook together reduces overall length and can help satisfying the requirements of top drive operation.
  • The hook block is equipped with the reliable safety devices on the main hook.
  • The main parts aire made of high strength alloy steels and are subjected to nondestructive testing.
  • The sheave grooves have been intermediate frequency quenched,which can improve the hardness of the surface,the wearness,and the service life.



Technical Sheet of Our Oilfield Traveling Hook Block



Model YG100 YG150 YG170 YG250
Rated Capacity(kN) 890 1350 1700 2550
Sheave qty/Dia(mm) 3/609.6 4/915 5/915 5/915
Hook style 3-hook 3-hook 3-hook 3-hook
Wire line OD(mm) 25.4 26/29 29 32
Hook opening dimension(mm) _ 165 180 190
Spring travel(mm) _ 180 180 180
Dimension (mm) 1685×675×510 3195×960×616 3307×960×616 3450×970×850
Weight (kg) 1010 3590 4585 4732



Casing Wire Rope 890kN Hydraulic Hoist Traveling Block 0



Xi'An TianRui Petroleum Machinery Equipment Company Limited is the professional manufacturer for solid control equipment and the drill stem testing tools. All of our tools are conformed with NACE MR 0175 with traceability, and the tools can be worked in H2S & CO2 above 175 F and full H2S, also with the skilled and experienced engineers, we can design the drill stem testing tools as per customer's well condition. Moreover, we supply the training in our factory and operation instruction at the well site. Tianrui products are exported to USA, Colombia, India, Pakistan, Iran, Brazil etc. and enjoy the good reputation from the customers.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
